Product Details

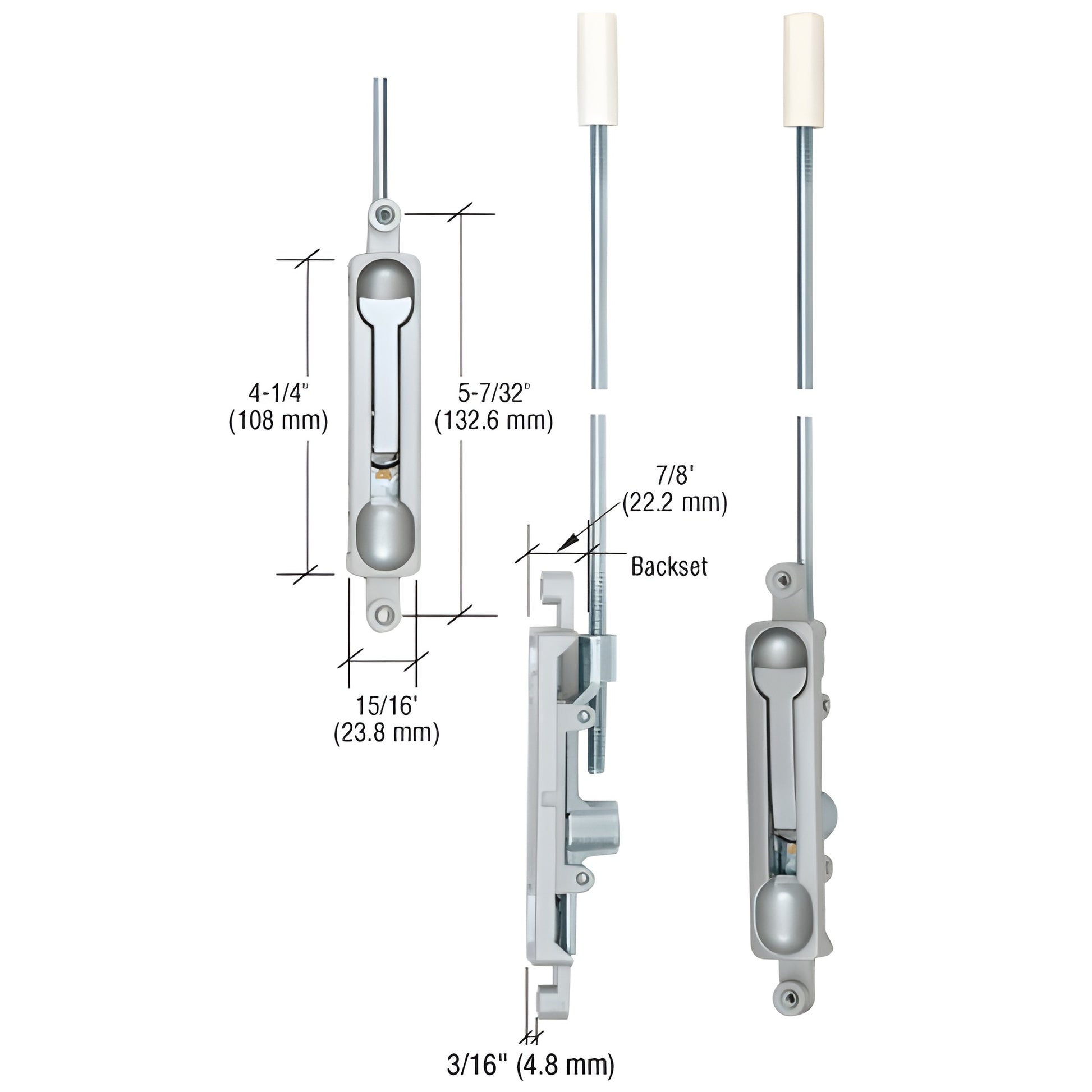

- Radiused Face with 1/8", 3/16" or 1/4" (3, 5, or 6 mm) Offsets
- Rod Length for 12" (305 mm) Face Centerline Installation
- 7/8" (22 mm) Backset
- 5/8" (16 mm) Throw
These CRL Flush Bolts are designed to work on any radius faced narrow stile aluminum door. Intended to securely lock an inactive door. Three different offsets are available in aluminum or bronze finishes. A Nylon Flush Bolt Guide is included.
