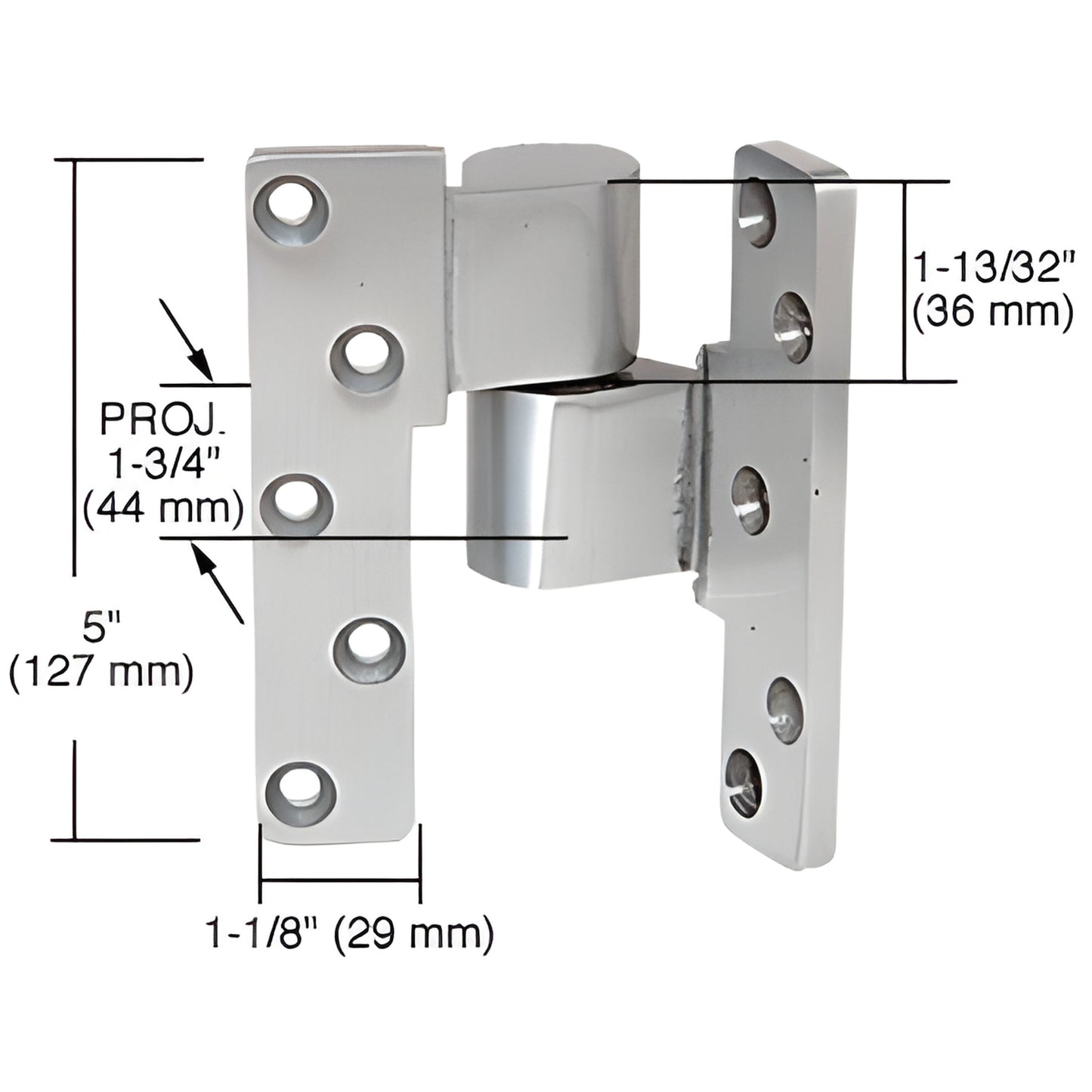

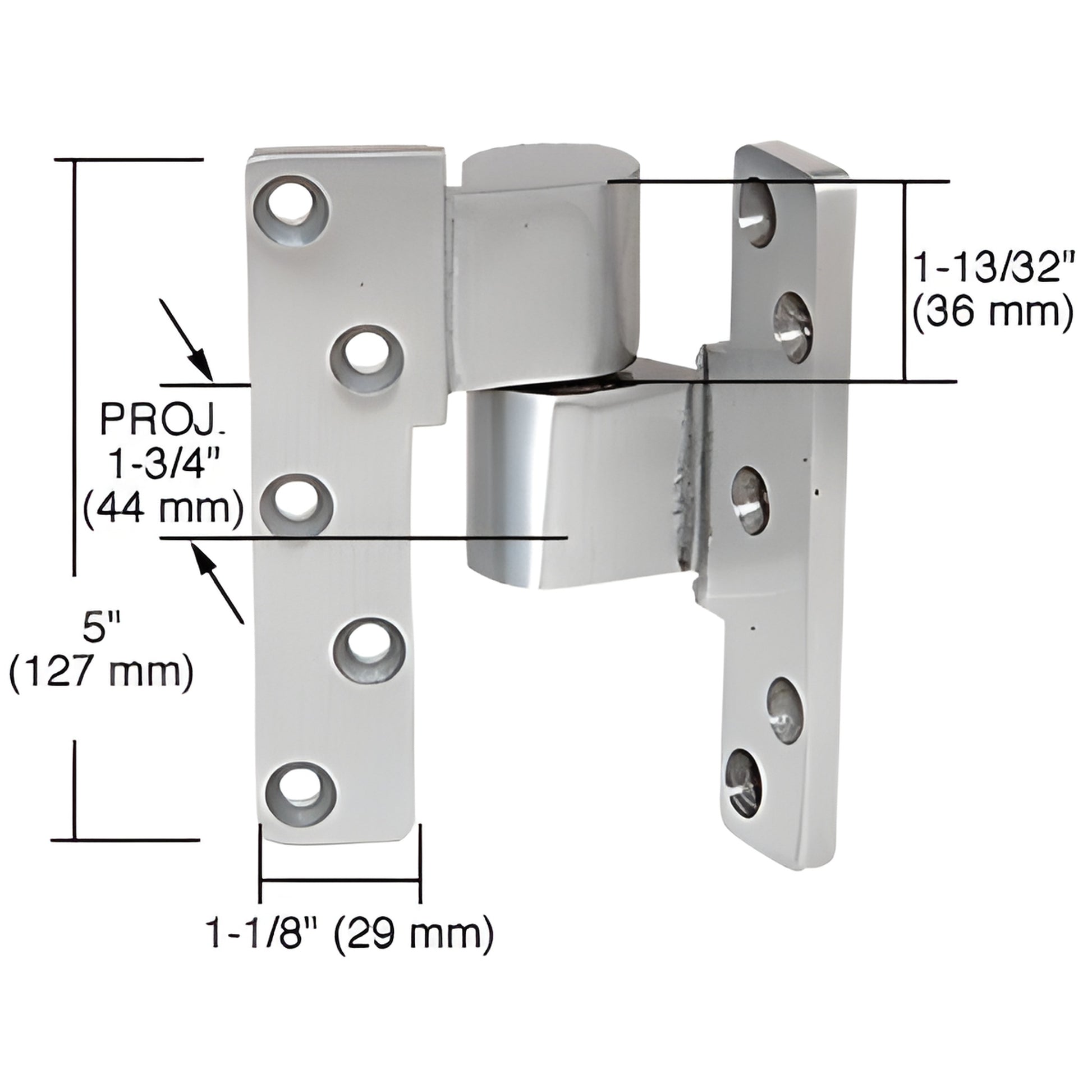

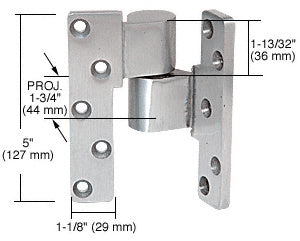

CRL Aluminum 3/4" Offset Intermediate Right-Hand Door Pivot Hinge
CRL Aluminum 3/4" Offset Intermediate Right-Hand Door Pivot Hinge
Regular price
$134.20 CAD
Regular price
Sale price
$134.20 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 41J190R628
Shipping Weight: 14.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Aluminum
Handing
Right Hand
Material
Aluminum
Pivot Type
Offset Intermediate
Recommended Door Type
Aluminum Store Front
Vertical Adjustment
5/8
Overview
- Intended for use with aluminum storefront doors to maintain door alignment
- Fully retractable pin with 5/8" (16 mm) vertical adjustment
- Full race ball-bearing and oilite bronze bushing for long maintenance‑free life
The Jackson® J190 Intermediate 3/4" Offset Pivots (SKU: 41J190R628) are intermediate pivots designed for standard 1-3/4" (44 mm) aluminum storefront doors to maintain door alignment in new construction and retrofit applications. These non-load-bearing, handed full-mortise intermediate pivots feature a fully retractable pin and 5/8" vertical adjustment for quick installation and on-site alignment. Constructed with a full race ball-bearing and oilite bronze bushing, they deliver smooth operation and extended service life. These pivots are templated for use in retrofit projects and storefront hardware systems.
Product Warning:
These pivots maintain door alignment when used with doors 90" (2.29 m) or taller. Each additional 30" (762 mm), or fraction thereof, requires an additional intermediate pivot.
Specifications
CAD Drawings - pdf
