CRL Aluminum Clamp-On Exterior Glazed Vision Window, Powder-Coated

• Clamp-On Frame Vision Window typically used above built-in exchange drawers in walk-up installations
• Drawings and specifications available online
• Custom anodizing and powder or KYNAR® paint color matching available
• SKU: C0VEP — clamp-on vision window for walk-up and transaction drawer applications

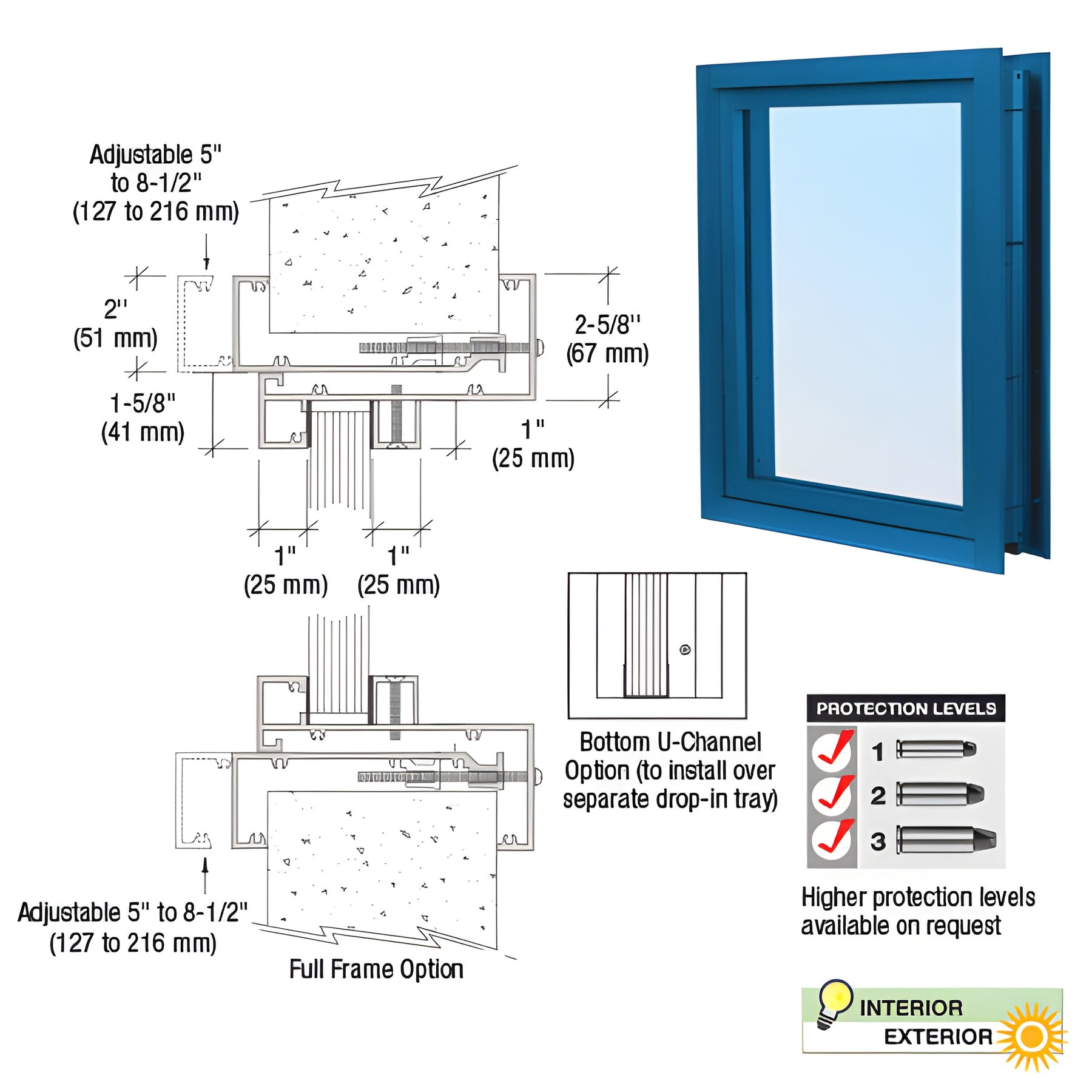

CRL Clamp-On Frame Vision Windows are engineered for wall openings 5" to 8-1/2" (127 to 216 mm) thick. The uniform four-sided frame clamps the selected glazing into place for a weather-tight, secure installation. Commonly installed above built-in transaction drawers, package receivers, or exchange drawers, these clamp-on windows tighten from the interior for easy service. Optional U‑Channel under the glazing enables access to drop-in deal trays. Customers specify overall width and height when ordering.

SPECIFICATIONS:
Materials: Glazing options — 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame — Satin anodized, Duranodic Bronze, RAL powder paint colors, or custom KYNAR® paint colors.
Instructions included.

Need drawings, a custom finish, or help specifying dimensions for your walk-up transaction window? Contact CRL or request a quote for SKU C0VEP today.
