CRL Aluminum Offset Right Hand Pivot Set with 1/8" Recess
CRL Aluminum Offset Right Hand Pivot Set with 1/8" Recess
Regular price
$34.07 CAD
Regular price
Sale price
$34.07 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P31RHA
Shipping Weight: 7.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Clearance Adjustment
1/8 in. (3.2 mm)
Door Weight
125 lbs. (56.7 kg)
Entry Trim
Unavailable
Field Sizeable
Yes
Finish/Color
Aluminum
Handing
Right Hand
Material
Aluminum
Pivot Series
OP31
Pivot Set
Yes
Pivot Style
1/8 in. Recess (3 mm Recess)
Pivot Type
Offset
Recommended Door Type
Aluminum Store Front
Overview
- 1/8" (3 mm) vertical adjustment for precise door alignment
- Die cast aluminum construction for commercial durability
- Suitable for aluminum frames and doors weighing up to 125 lbs (57 kg)
- Handed (not reversible) offset pivot set for left or right hand doors
- Compatible with Arcadia, Arch Aluminum, Tubelite, Vistawall

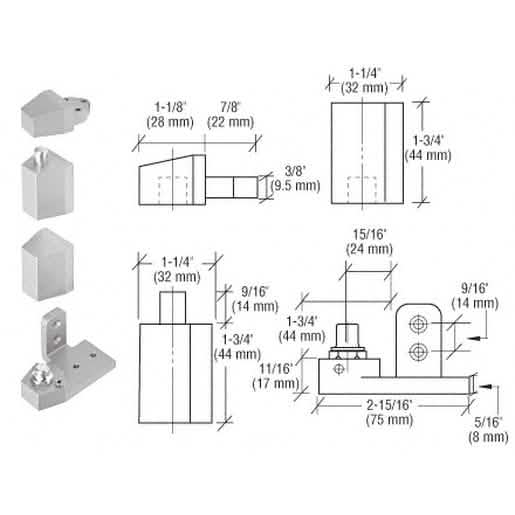

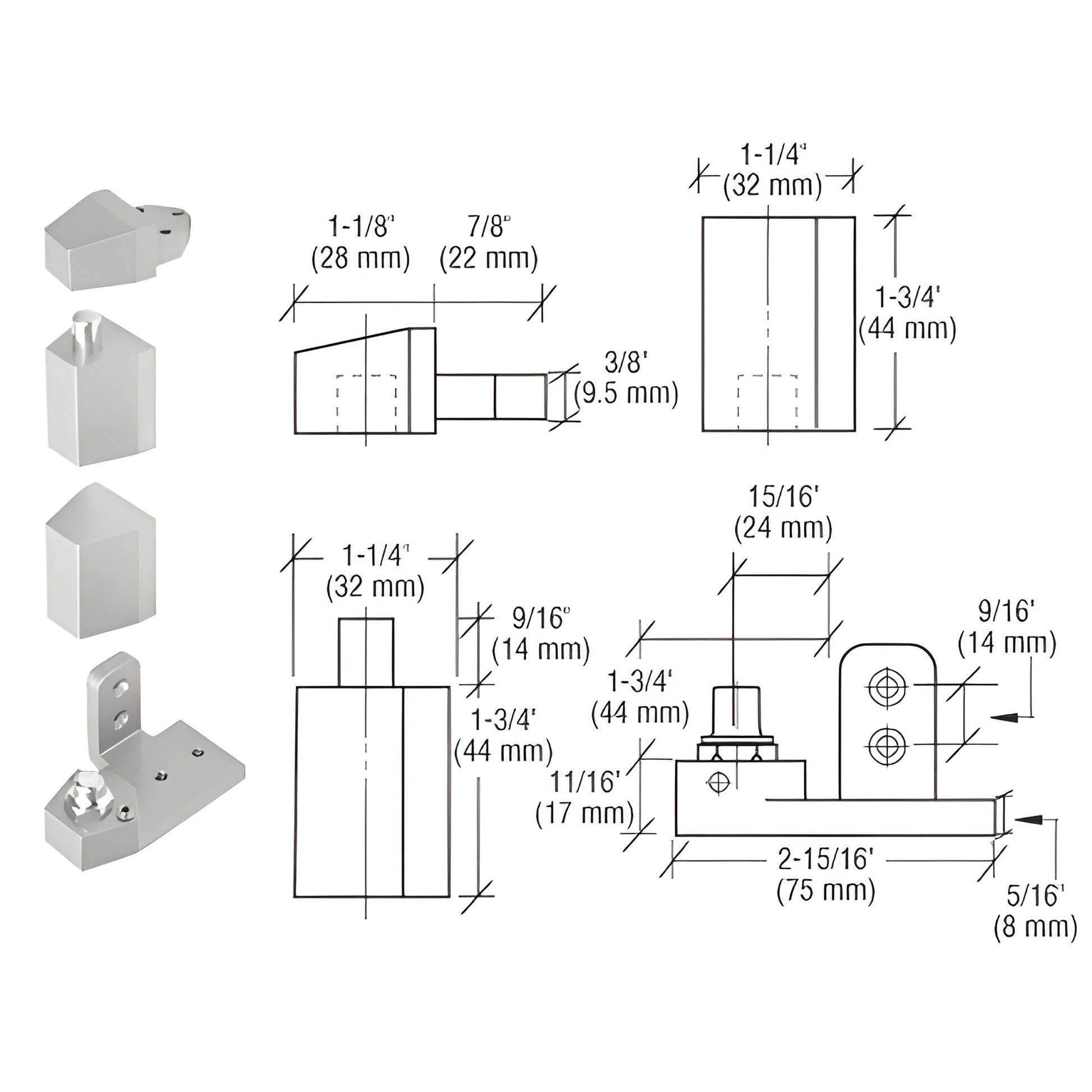

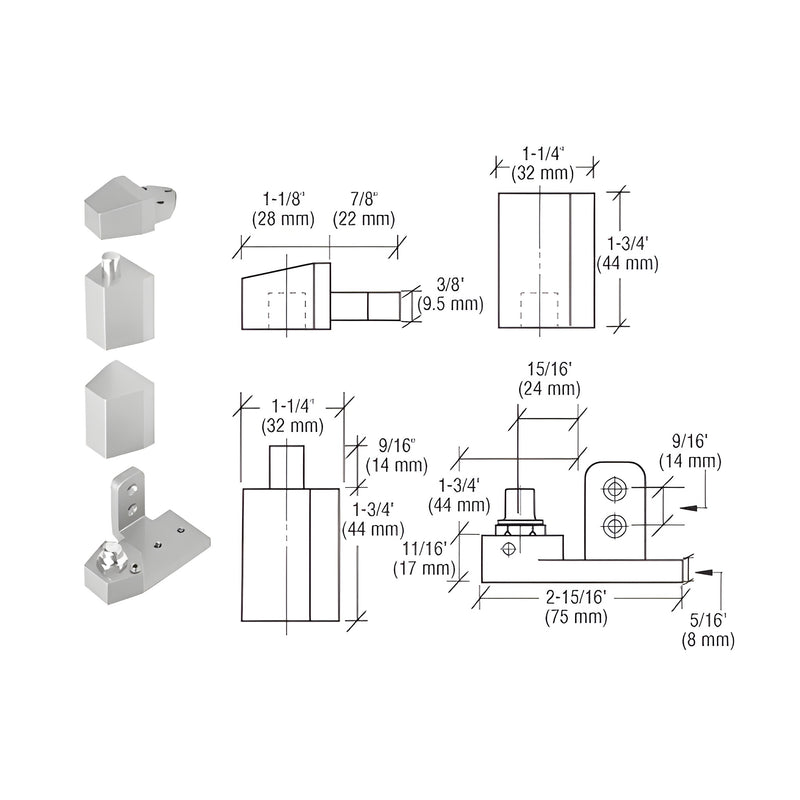

CRL Offset Pivot Sets provide a complete commercial offset pivot solution—machined and die-cast components packaged with door fasteners and anchors for easy installation. Illustrated dimensions simplify selection. Available in satin aluminum and dark bronze finishes. One set per package. SKU: 0P31RHA
Product Warning:
For doors up to 125 lbs.
Need help selecting the right commercial offset pivot set? Contact CRL or add SKU 0P31RHA to your cart to get started.
