CRL Aluminum Universal Louver "Break-Off" Window Operator

Overview

SKU	H3546
Sold as	1 Pack
Adjustable Roller	Yes
Finish/Color:	Aluminum
Inner Mounting Hole	3-7/8
Jalousie Operator Outer Mounting Hole	4 3/4
Jalousie Operator Spindle Length	5/16

Description

Product Details

Non-Handed
Reversible
T-Crank Handle
Comes in Three Popular Finishes

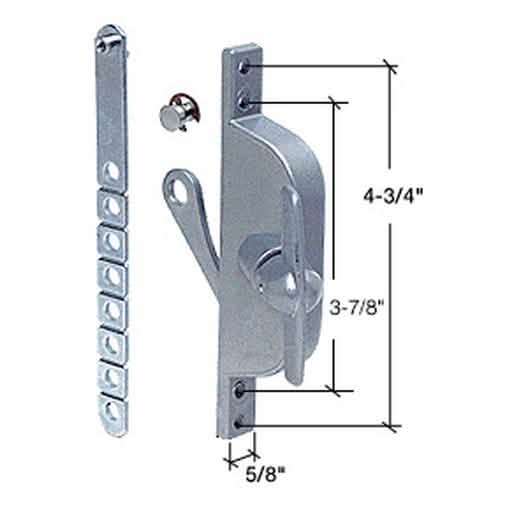

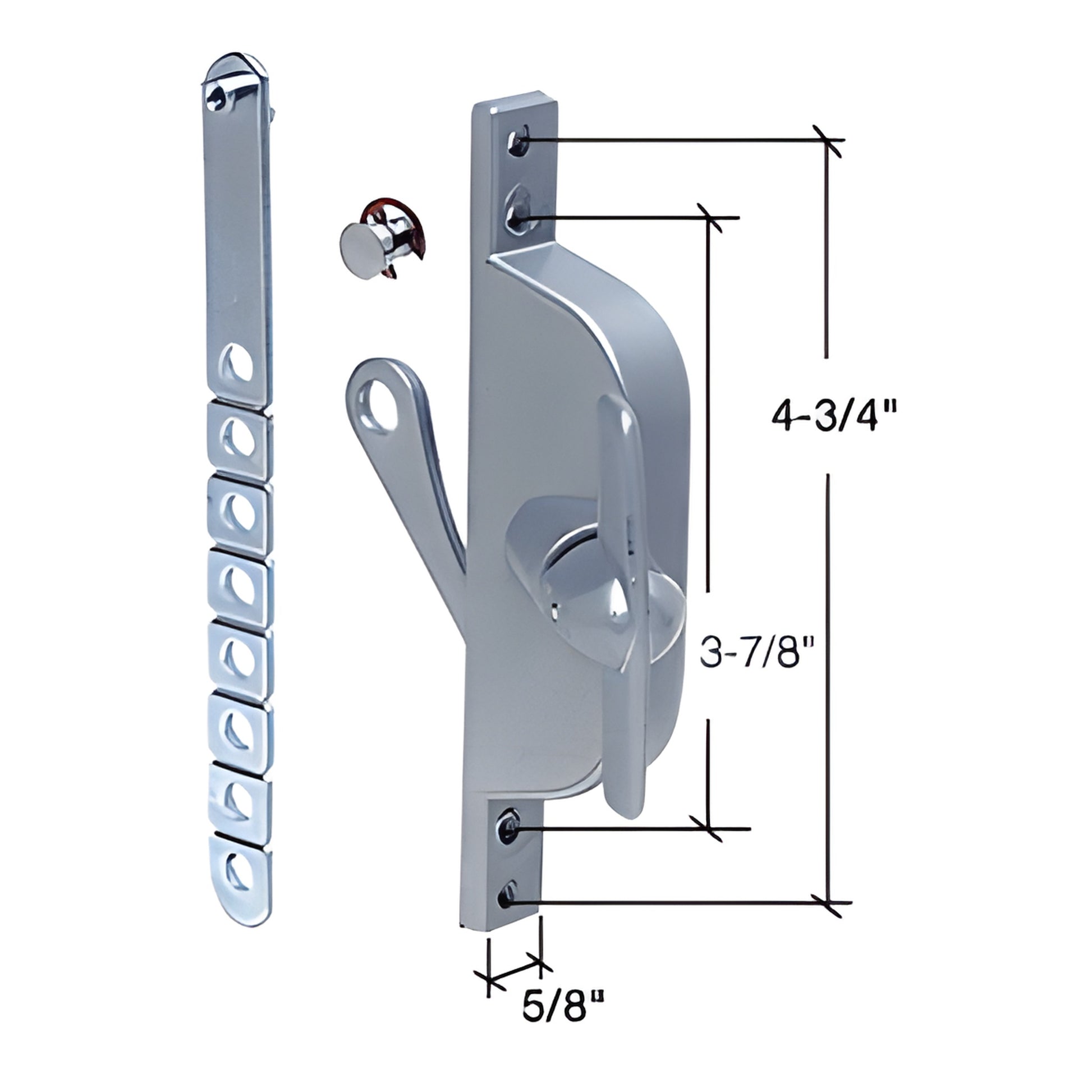

The CRL Universal Louver Window Operator is designed to replace most louver operators currently in use. The operator is made of diecast construction. It is non-handed and reversible. Link arm has break-a-way segments in 1/2" (12.7 mm) increments to accommodate applications up to 5-5/16" (134.9 mm) long. It has 5/16" (7.9 mm) spindle and a diecast T-handle. Complete with a T-Crank Handle.
