Product Details

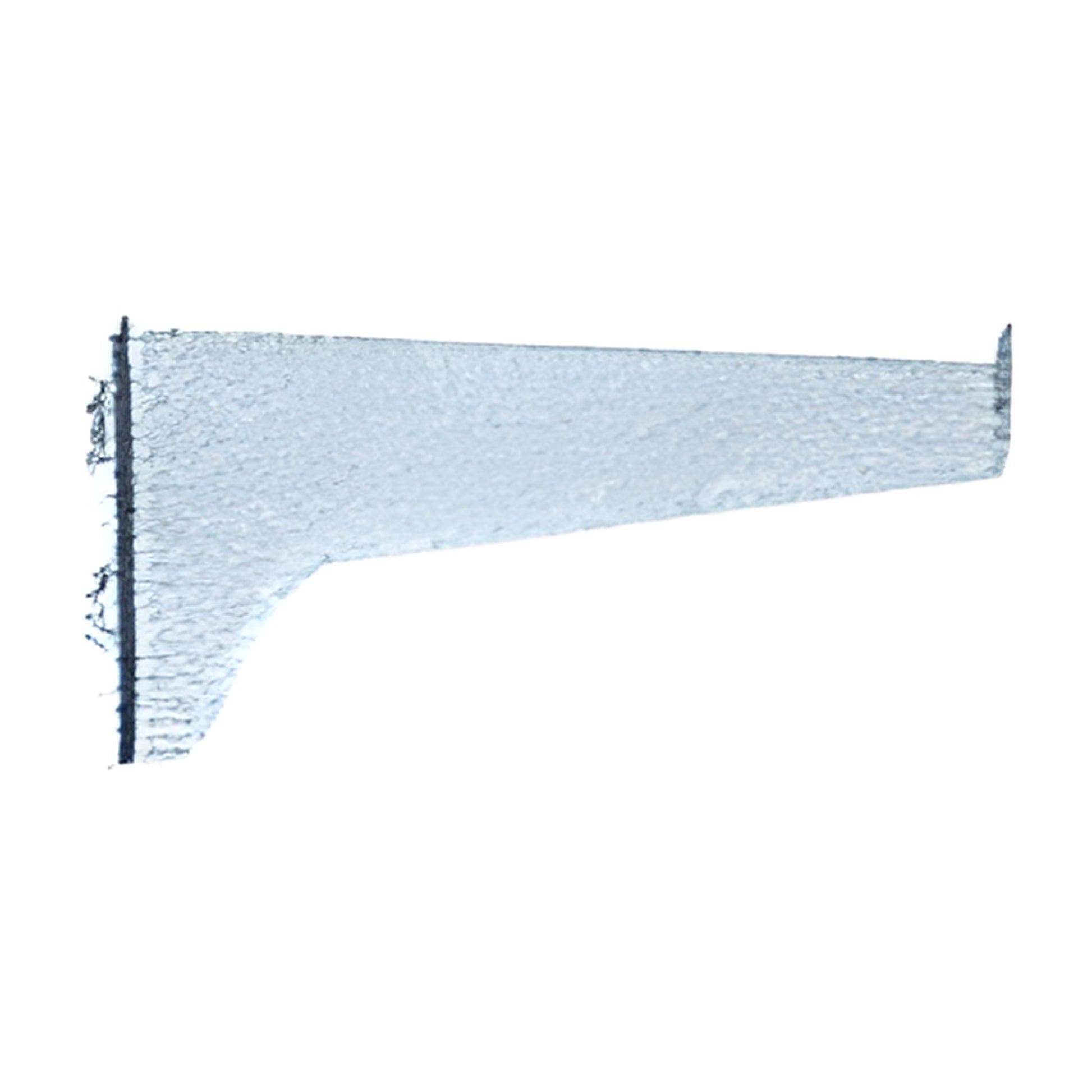

- Steel Brackets Specifically to Fit Our 80 Series Steel Standards
- Steel Brackets for Strength
- A Downward Tap Secures the Bracket in the Standard
- 8" (203 mm)/320 Lbs.
- 10" (254 mm)/240 Lbs.
- 12" (305 mm)/190 Lbs.
- 14" (355 mm)/200 Lbs.
- 16" (406 mm)/190 Lbs.
- 18" (457 mm)/160 Lbs.
- 20" (508 mm)/120 Lbs.
CRL KV Steel Standards and Brackets make building shelf units simple. They're so flexible, design versatility is virtually limitless. Our Steel Standards and Brackets are all high quality, precision fitted pieces. They are easily assembled and mounted. You get the advantage of both durable steel construction and a choice of finishes.
For decorative uses in display and showcases, and utility uses for storage applications. These brackets fasten to standards with a unique, patented friction grip, insuring a firm and square hold with perfect shelf alignment. A back plate gives added strength so the brackets project straight out from the standards.
These published "Load Ratings" are to be used as a guide only. No warranty is expressed or implied. Weight "Load Ratings" for bracket are per pair. All "Load Ratings" are in Pounds (lbs.) Spacing on the Standards is 16" (406 mm) on center, through 1/2" (12.7 mm) drywall into
a 2-by-4 wood stud. Wider spacing will result in reduced Load Capacity.
BRACKET SIZE/LOAD CAPACITY (PER PAIR)
8" (203 mm)/320 Lbs.
10" (254 mm)/240 Lbs.
12" (305 mm)/190 Lbs.
14" (355 mm)/200 Lbs.
16" (406 mm)/190 Lbs.
18" (457 mm)/160 Lbs.
20" (508 mm)/120 Lbs.
