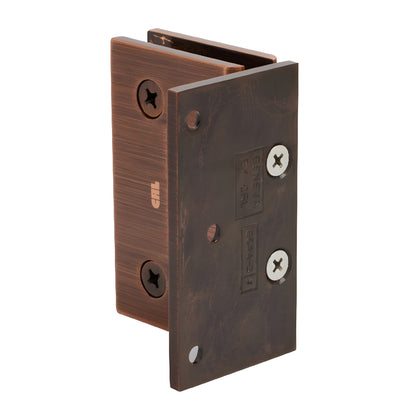

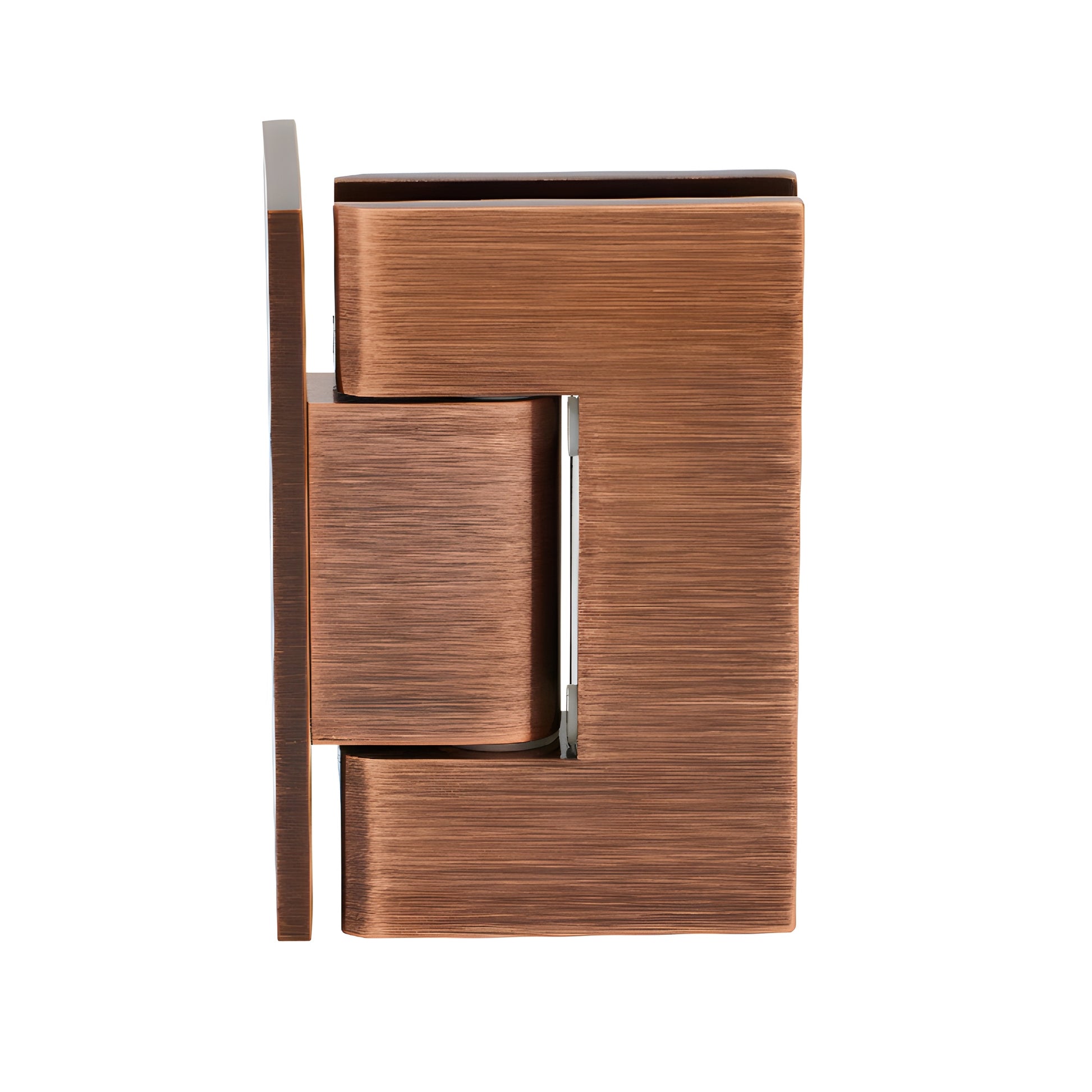

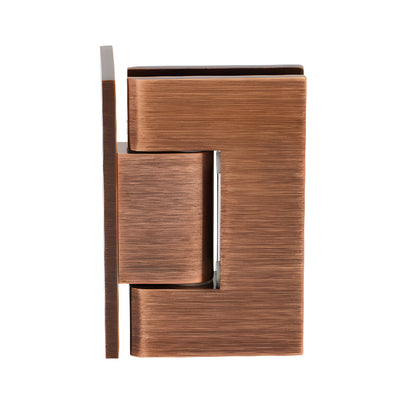

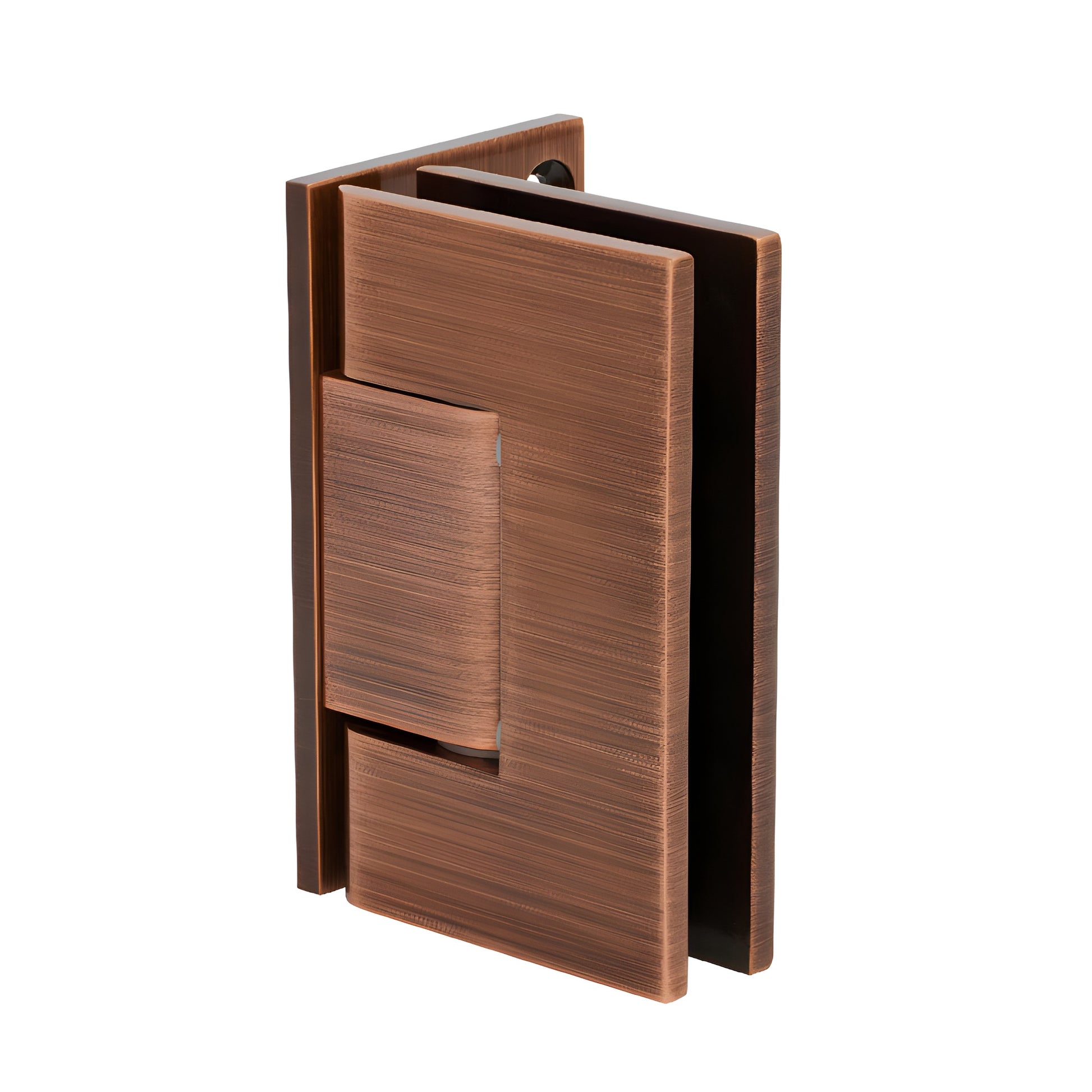

CRL Geneva 044 Offset Back Plate Wall Mount Hinge - Antique Copper

• Self-centering shower hinge with reversible 5° pivot pin
• Available in several beautiful finishes (custom finishes on request)
• Three year warranty

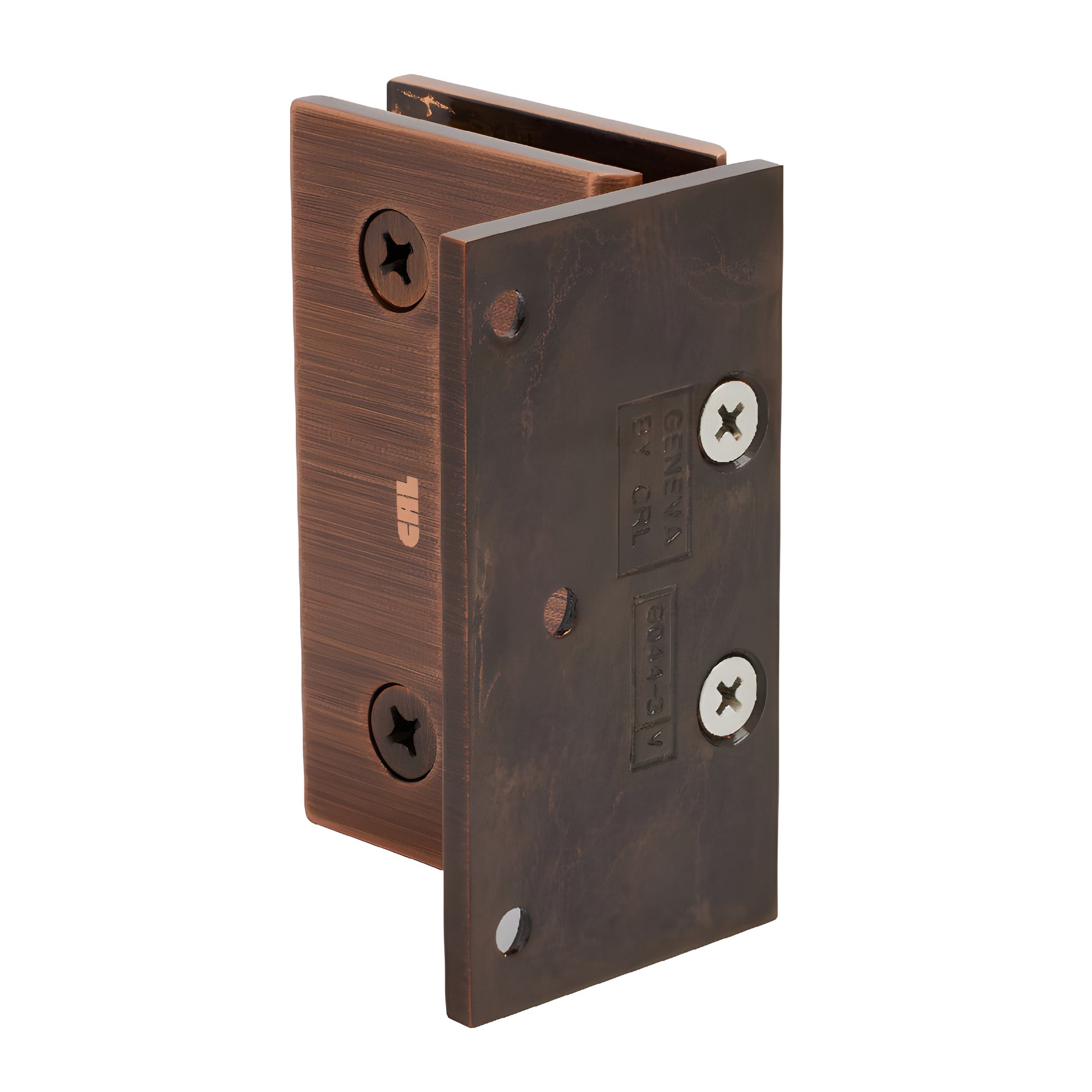

• Wall-mount offset back plate (factory set for standard closing position)
• For monolithic tempered glass (use tempered safety glass only)

The CRL Geneva Series professional shower hinges fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six style options (three Wall-Mount and three Glass-to-Glass) provide design flexibility. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed from solid brass with stainless steel pins and springs for long-lasting corrosion resistance—ideal as a glass shower door hinge for 8mm to 12mm tempered glass.

Each Geneva hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship at 85° for a tighter 5° closure into the shower interior. The pin rotates (do not flip) to switch positions.

Custom Pivot Pin: Cat. No. GENP1N custom pivot pins can be specified up to 45° for off-angle doors. If the included 5° adjustment does not achieve the desired closure, contact our Technical Sales Shower Door Department. Note: custom pins may affect glass sizes and enclosure aesthetics.

Capacity:

• Two hinges (5/16"–1/2" glass): holds up to 80 lbs (36 kg), max door width 28" (711 mm)
• Three hinges (5/16"–1/2" glass): holds up to 120 lbs (54 kg), max door width 32" (813 mm)

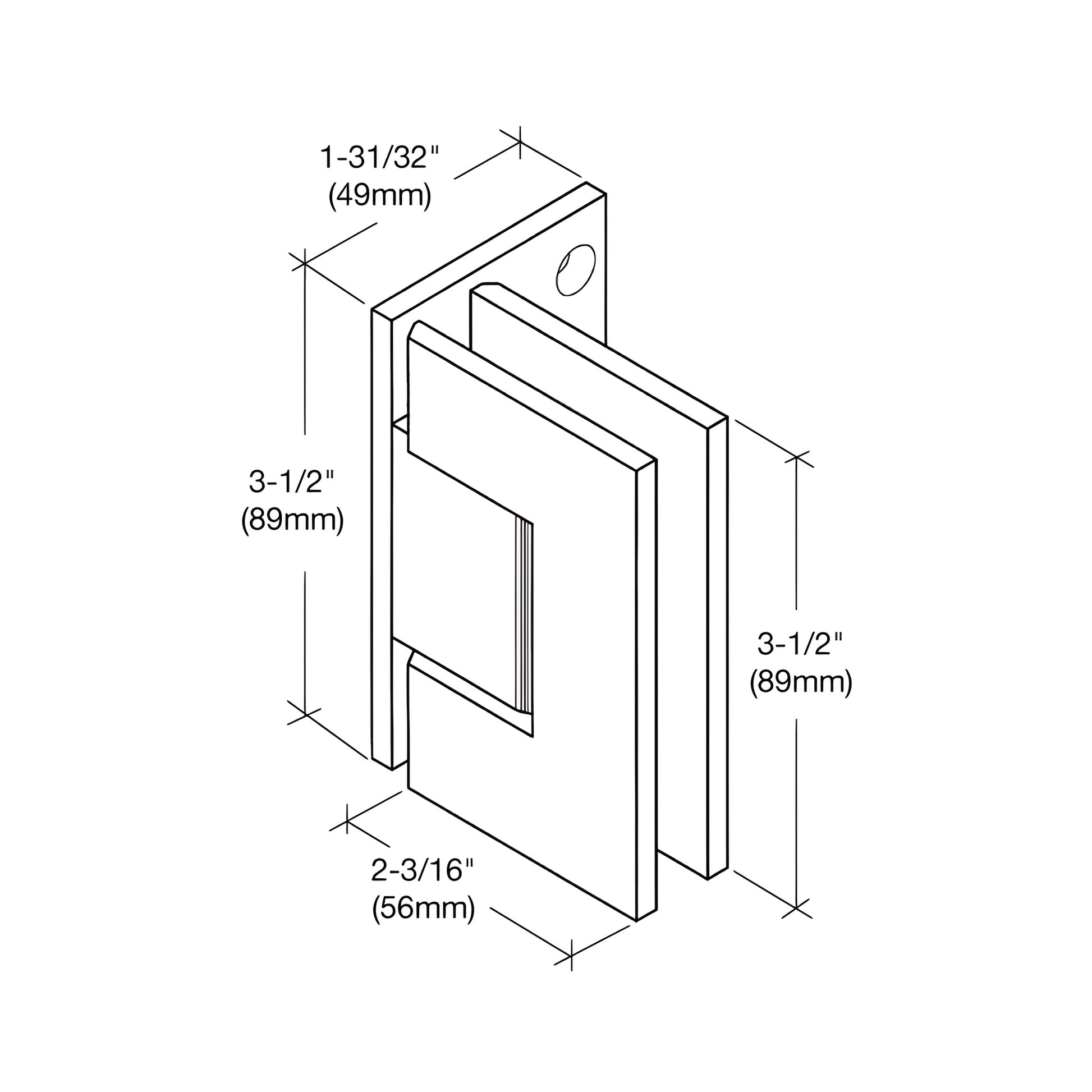

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard Model (factory set at 0° closing) or 5° Pre-Set Model for tighter closure into shower interior
Construction: Solid Brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes are available on request. Contact Technical Sales Shower Door Division for pricing and lead times.

Product Warning:

CRL shower door hinges are designed for residential or hotel
