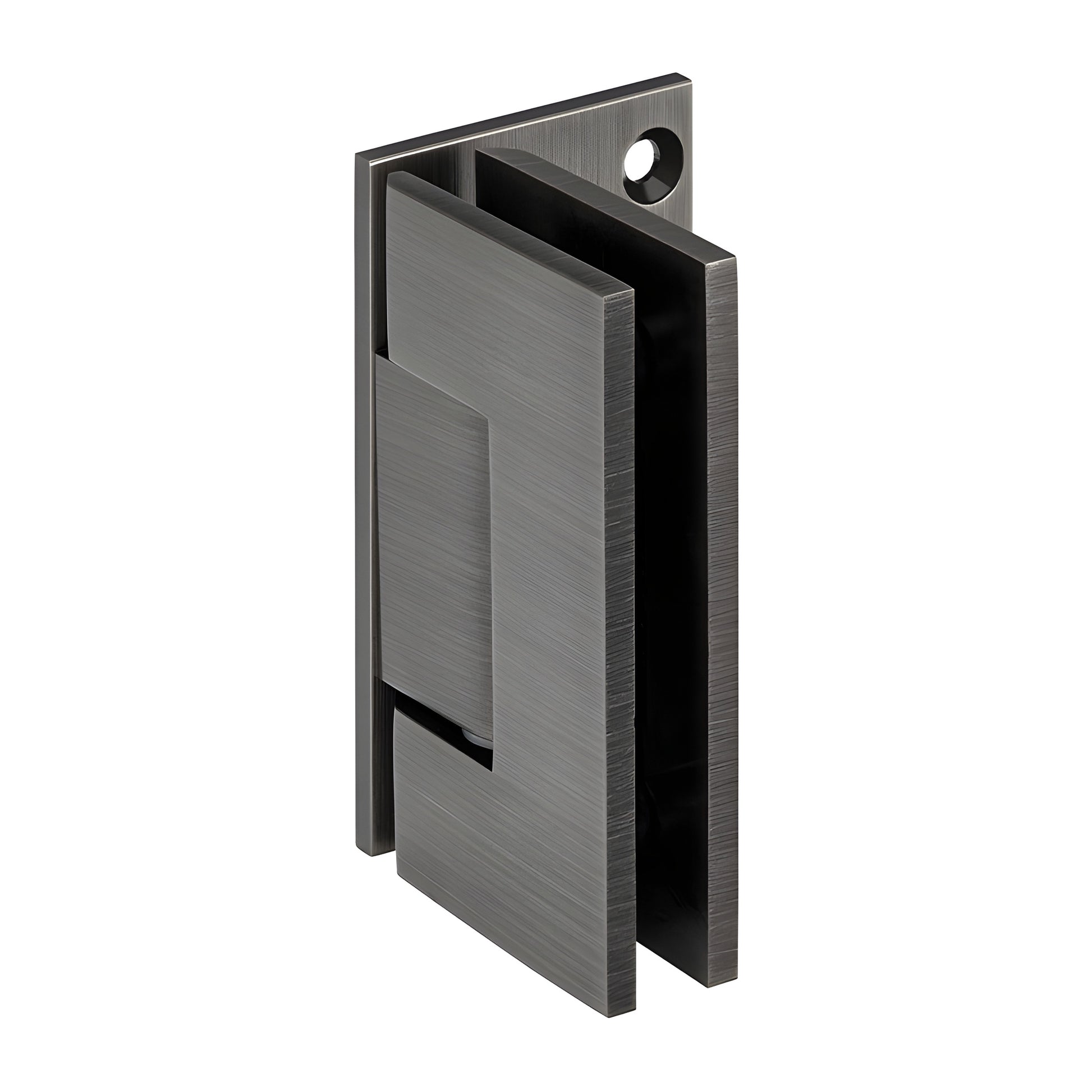

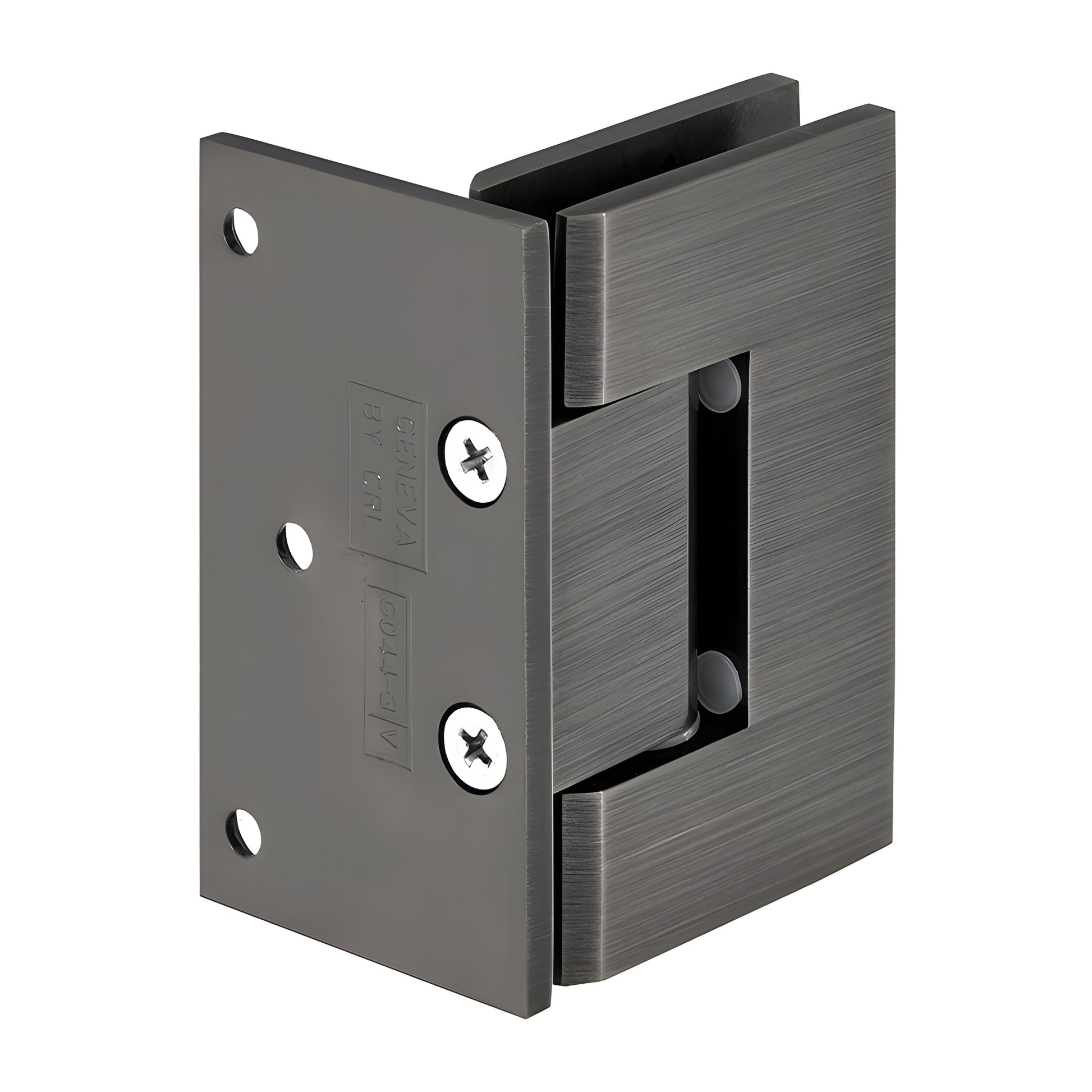

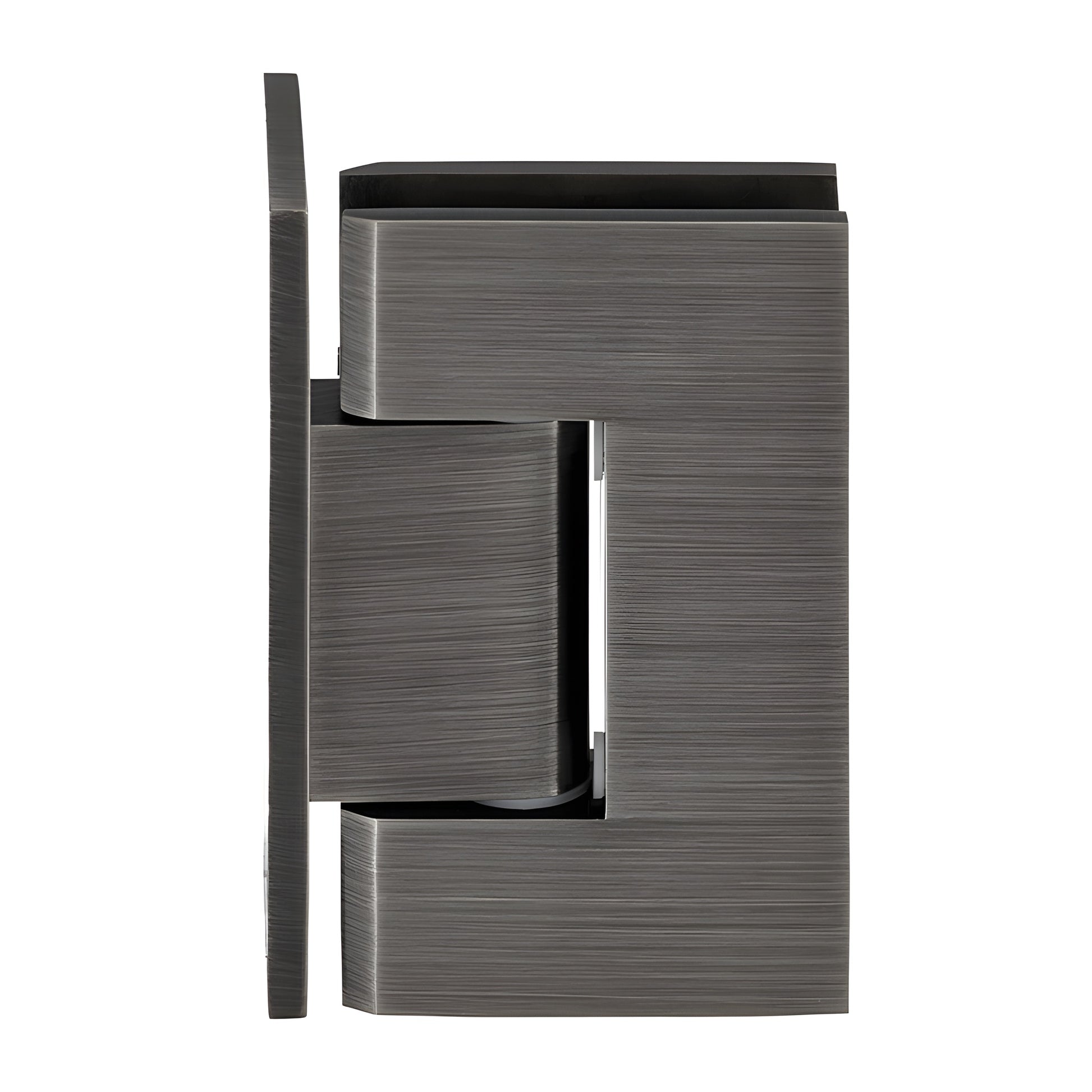

CRL Antique Brushed Nickel Adjustable Offset Wall-Mount Hinge

• Adjustable to any angle up to 90° without removing the door
• Available in several beautiful finishes
• 3-Year Warranty
• Designed for monolithic tempered safety glass

CRL Adjustable Geneva Series — a precision solid-brass, adjustable shower door hinge engineered for easy onsite angle adjustment. After the door is hung, loosen the Allen set screws, rotate the door to the desired closed position and retighten—the hinge self-centers within 15° of closed. Allows 90° swing inward and outward from the factory set position; adjusting the angle reduces swing in that direction. For outward-swing doors on a clear jamb, the hinge can be adjusted to close 5° inside the shower for a snug jamb seal.

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
Special Features: Field-adjustable shower door hinge, no door removal required; self-centering closing action
Construction: Solid brass construction for corrosion resistance and long service life
Hinge Swings: Up to 90° in and 90° out (factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

CRL shower door hinges are specified for residential and hotel shower applications. For alternative uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

SKU: GEN344ABN

Order the CRL Adjustable Geneva Series hinge today to simplify installation and achieve a precise, self-centering shower door fit.
