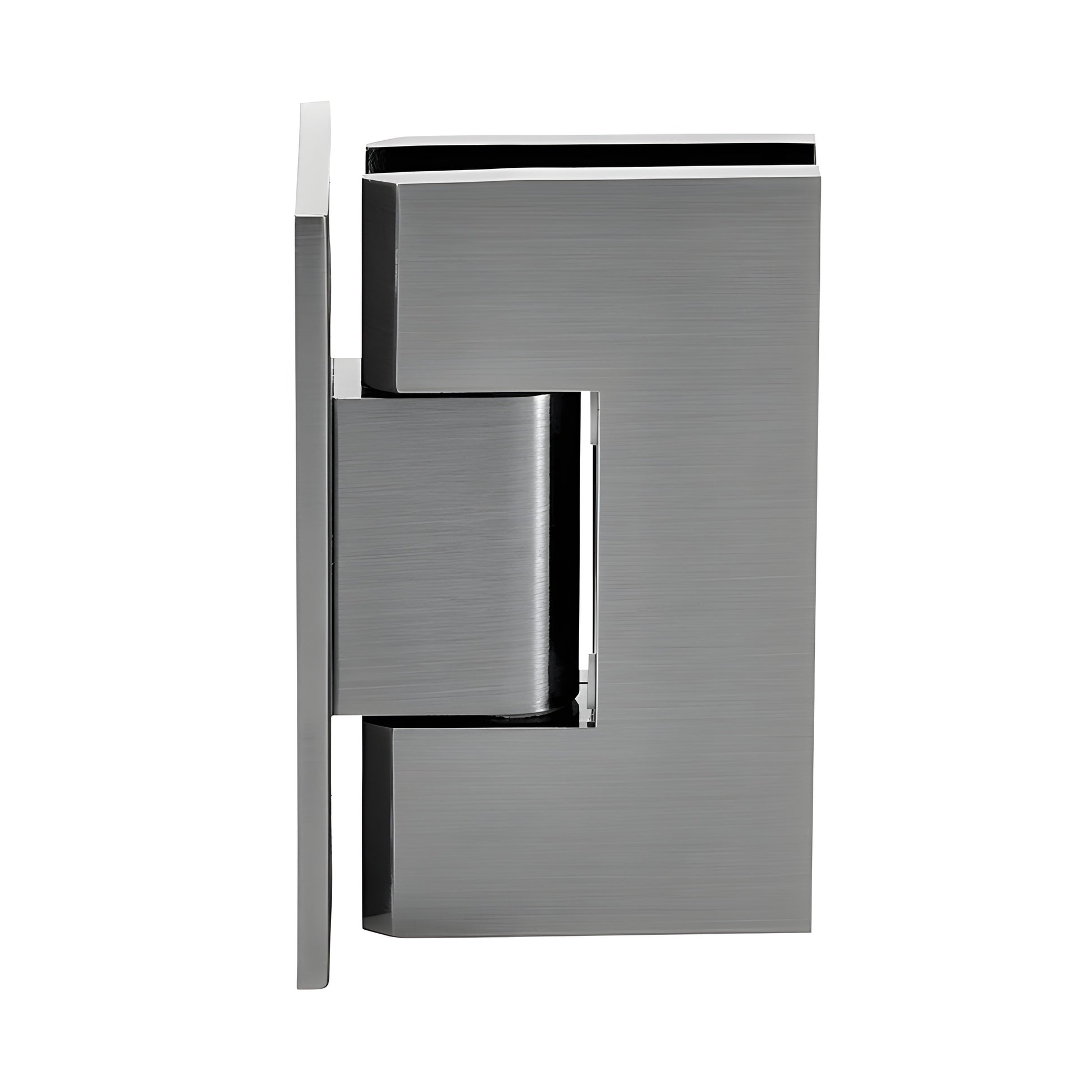

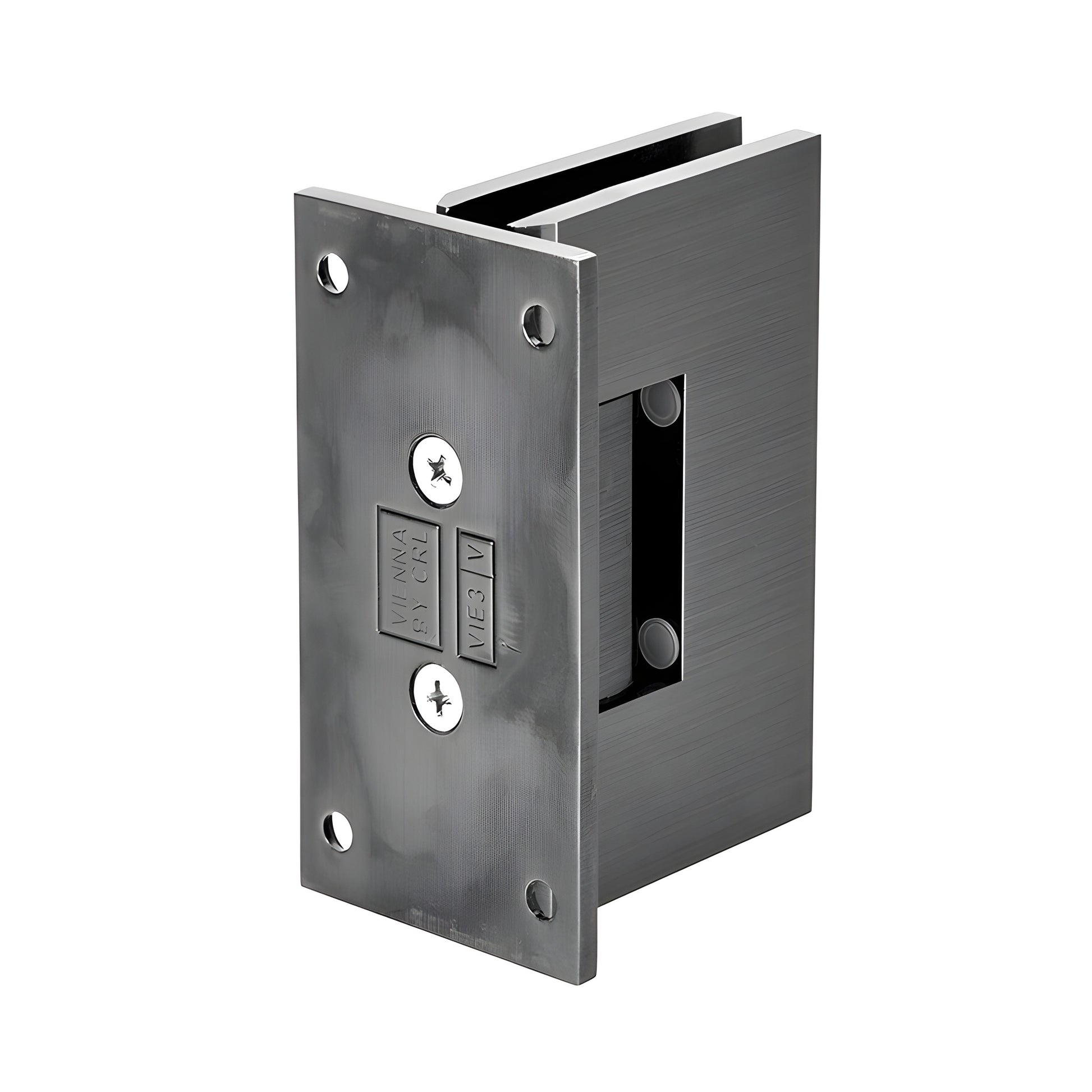

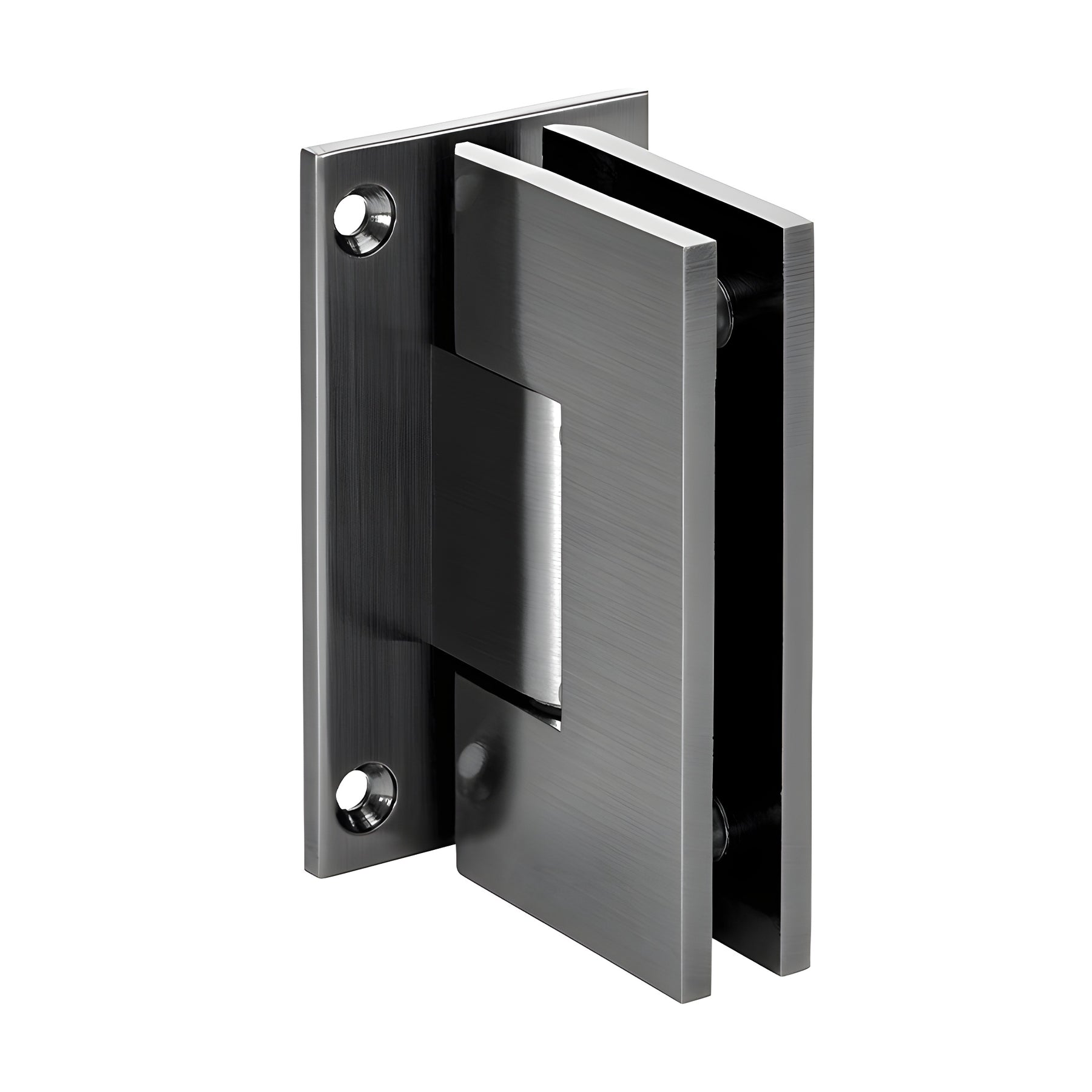

CRL Antique Brushed Nickel Vienna 037 Series Wall Mount Full Back Plate Hinge

CRL Antique Brushed Nickel Vienna 037 Series Wall Mount Full Back Plate Hinge

$168.38 CAD
$168.38 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# V1E037ABN
Shipping Weight: 2.06 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

5 Degree Pre-Set NoNo
BackPlate Full
DesignStyle Squared
EnclosureType Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ColorAntique Brushed Nickel
Glazing Thickness3/8 in. to 1/2 in. (10 mm to 12 mm)

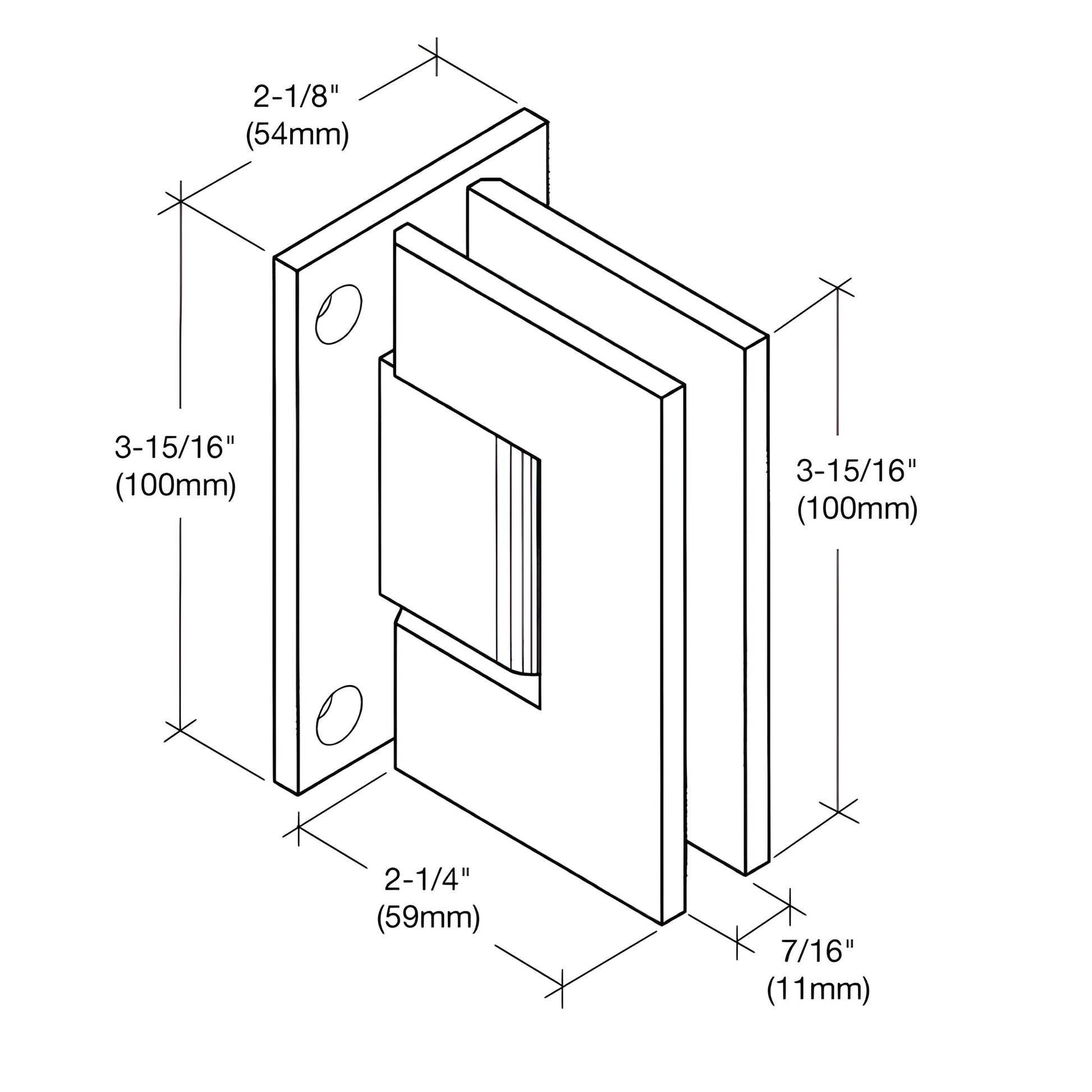

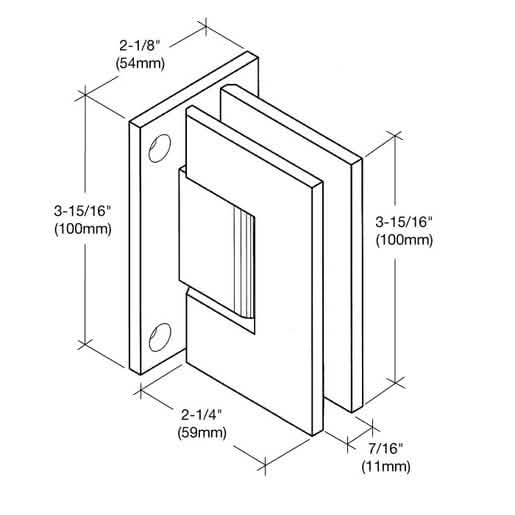

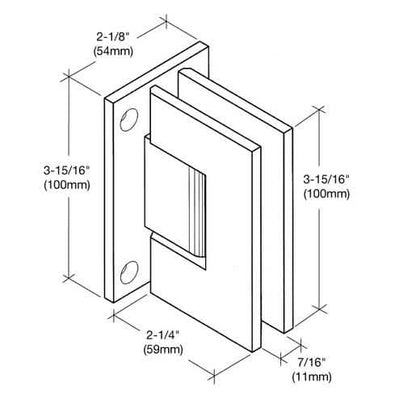

Height 3-15/16 in.(100 mm)
MaterialBrass
Maximum Clamping Screw Torque 60 lbf.in(677.9 cN.m)
Maximum Door Weight - 2 Hinges 110 lbs.(49.9 kg)
Maximum Door Weight - 3 Hinges 140 lbs.(63.5 kg)
Maximum Door Width 36 in.(914 mm)
MountingType Wall Mount
Opening Style Swing(side)
PositiveClose No
Self-Centering YesVienna
Width 2-1/4 in.(57 mm)

Overview

The CRL Vienna Hinges are expertly designed to support wider and heavier shower doors that traditional hinges cannot handle, accommodating 3/8" to 1/2" (10 to 12 mm) tempered glass.
These self-centering hinges feature a reversible 5-degree pivot pin and are available in a variety of elegant finishes, with a robust 3-year warranty ensuring long-lasting durability.
The hinges can support up to 110 lbs with two hinges or 140 lbs with three hinges, maintaining a maximum door width of 36" (914 mm).
For customized installations, the Vienna Hinges offer custom pivot pins, allowing for "off-angle" configurations to meet specific design needs.
Additionally, each hinge includes gaskets, screws, and glass fabrication dimensions, with custom finishes available upon request.
For optimal performance and safety, it's essential to use the included template and consult with CRL Technical Sales for any non-standard applications.
