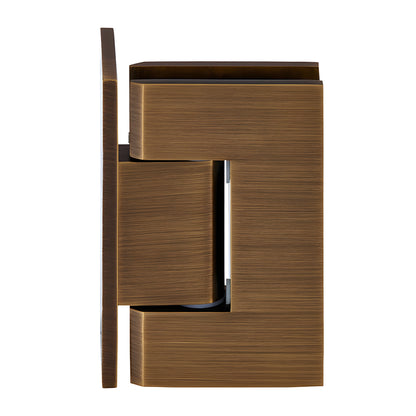

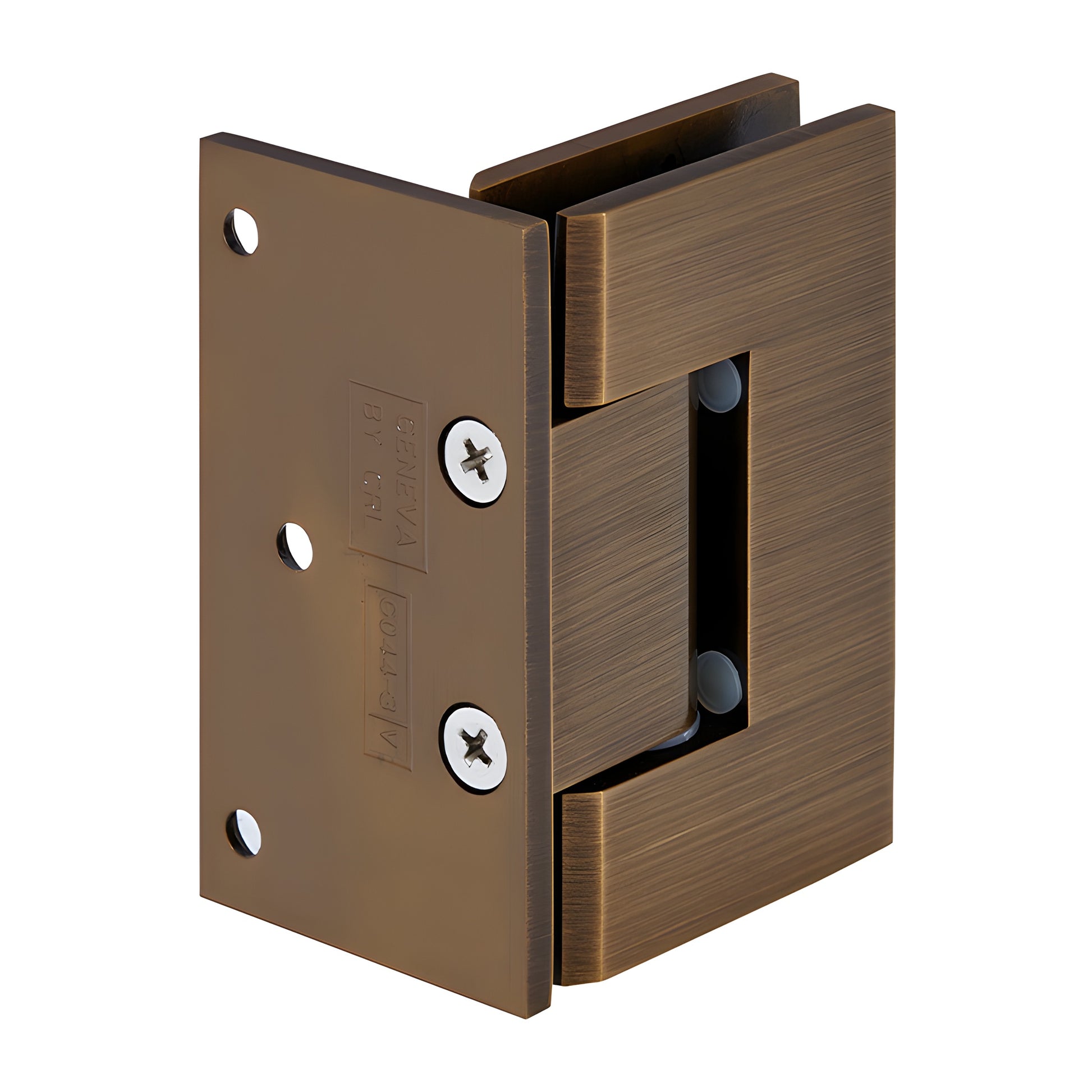

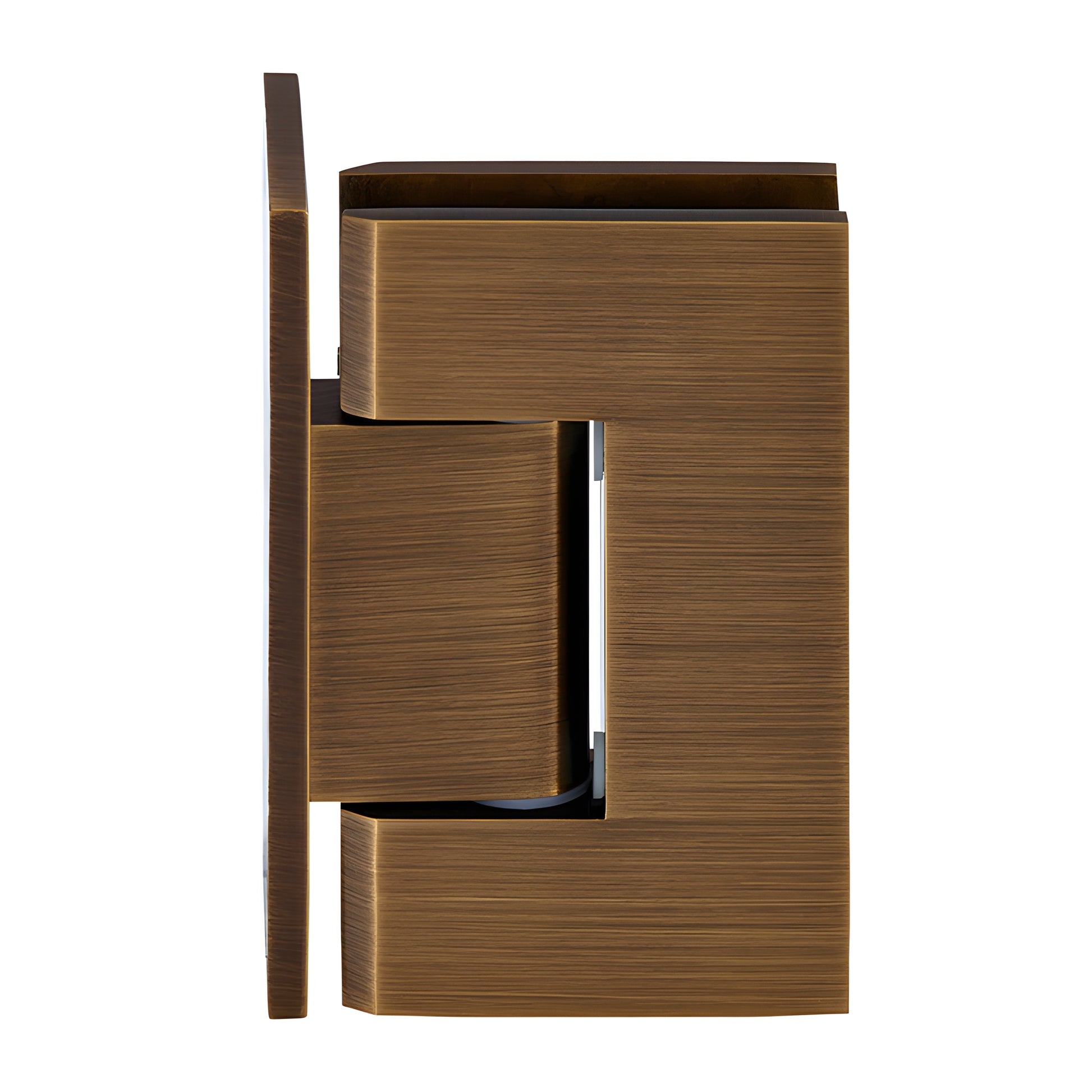

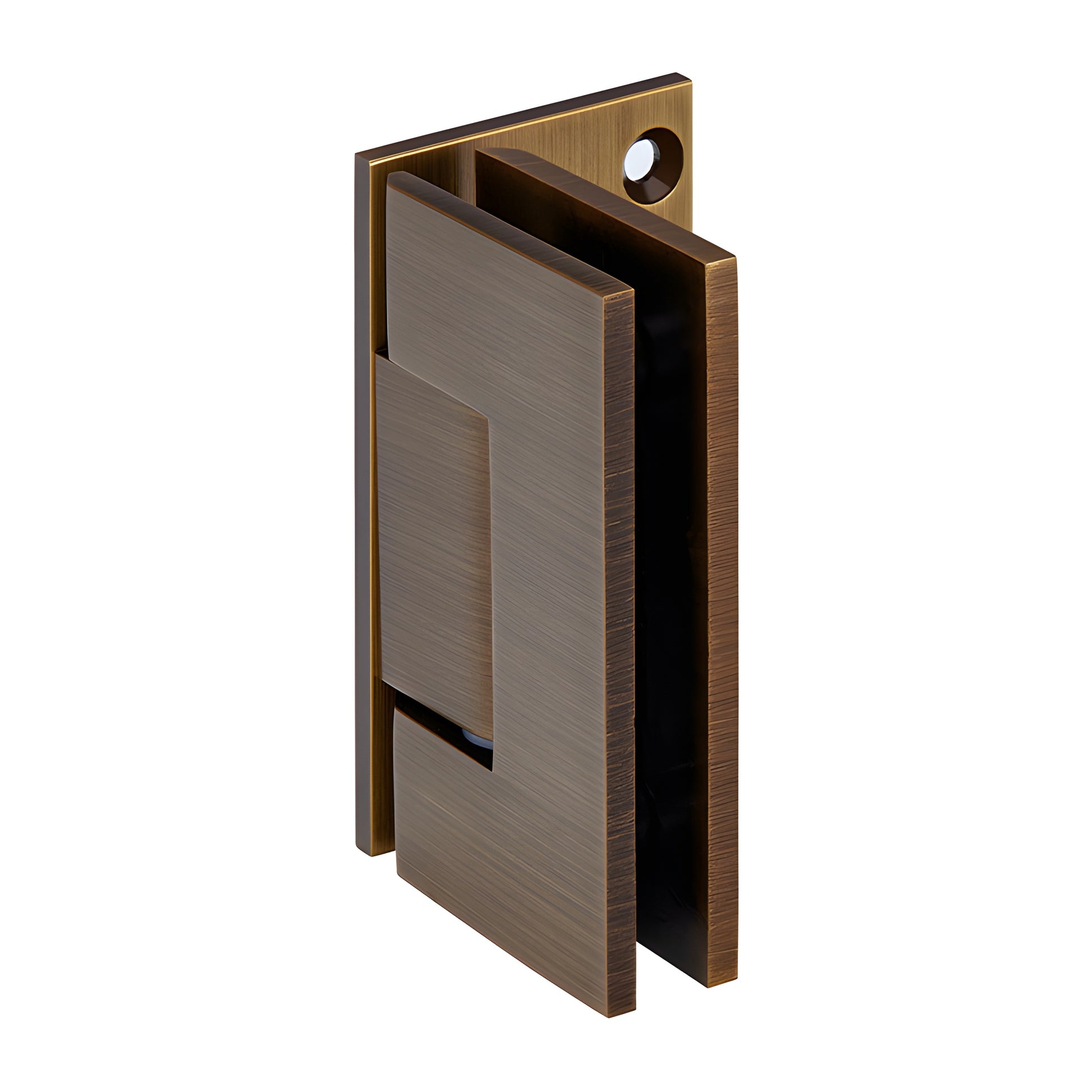

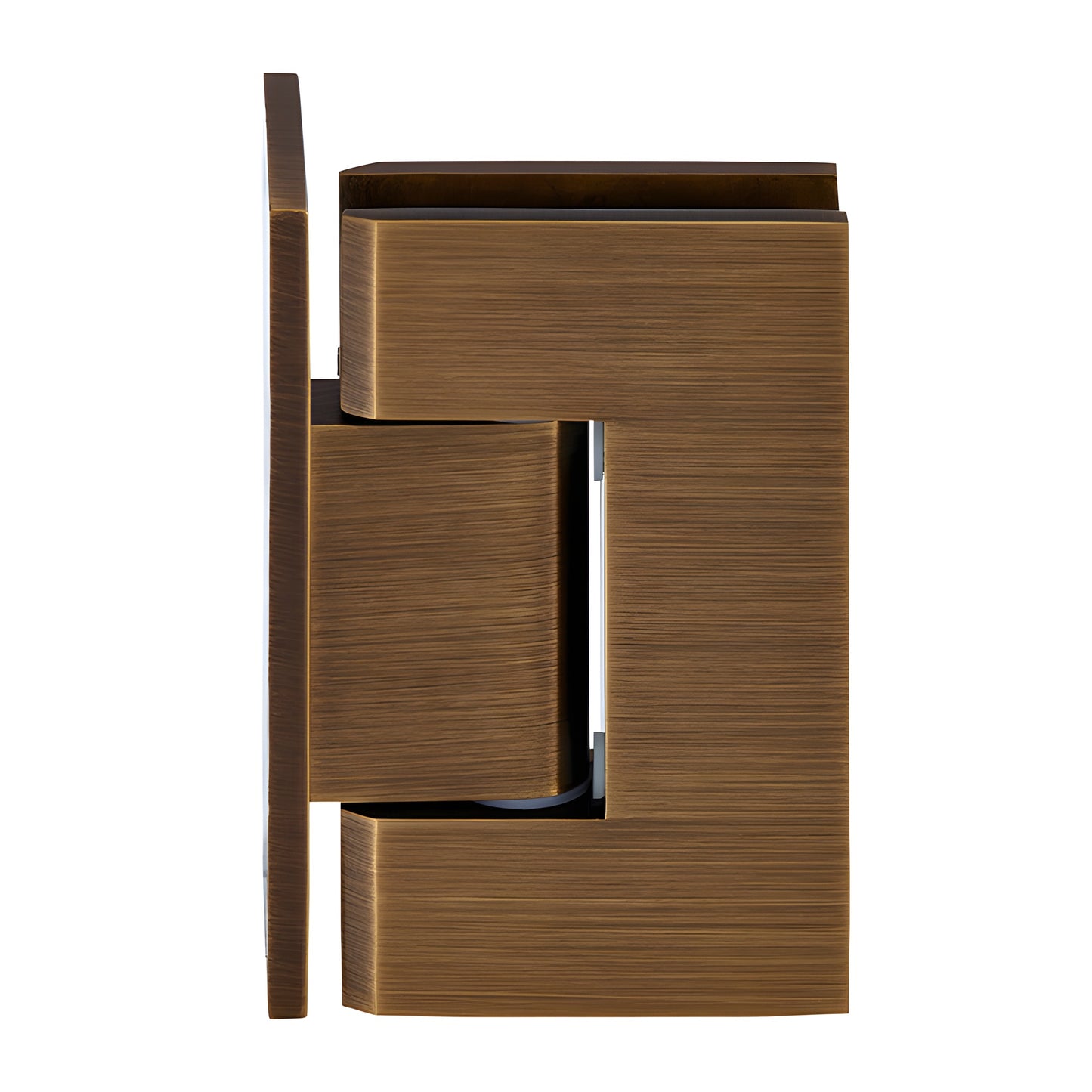

CRL Antique Polished Brass Adjustable Offset Back Plate Wall-Mount Hinge

• Adjustable to any angle up to 90° without removing the door
• Available in multiple brass and decorative finishes
• 3-year limited warranty
• Designed for 5/16"–1/2" (8–12 mm) monolithic tempered safety glass

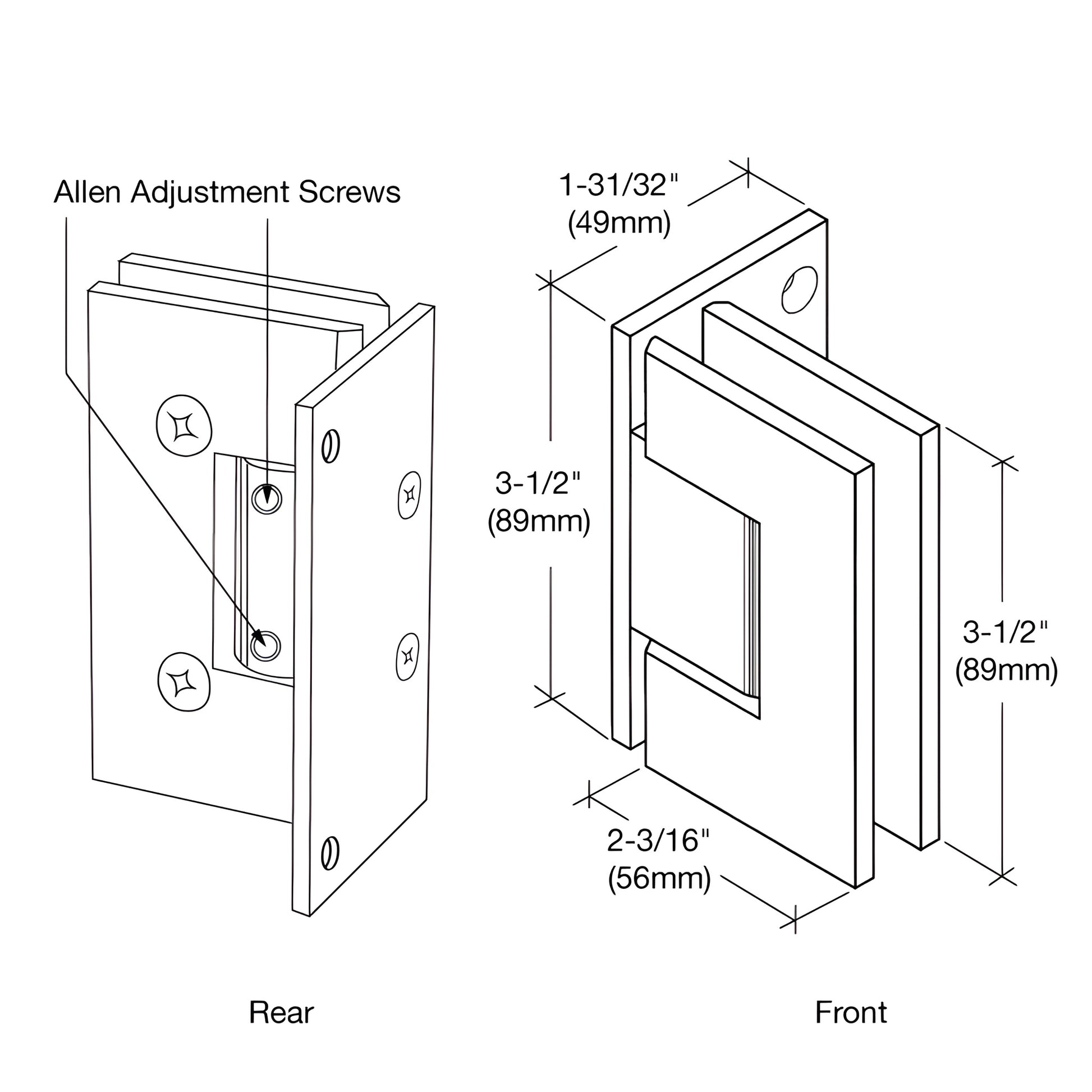

The CRL Adjustable Geneva Series (SKU: GEN344ABR) upgrades the popular Geneva hinge with on-door angle adjustment. After installation, loosen the Allen set screws, rotate the door to the desired closing position (up to 90° in or out at factory set), then tighten the screws. The hinge self-centers when within 15° of closed position. For outward-swing installations using a clear jamb, you can set the hinge to close 5° inside the shower for a snug jamb seal. Adjustment after installation avoids door removal and simplifies field tuning for precise alignment and leak control.

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
Special Features: Tool-adjustable to any angle up to 90° post-installation; self-centering closing action
Construction: Solid brass for durability and corrosion resistance
Hinge Swings: 90° in and 90° out (factory set position — adjusting angle will reduce swing in that direction)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Note: Cat. No. GEN13 gasket pack must be purchased separately for 5/16" (8 mm) glass.

NOTE: Altered closing angles may require modifying door glass width from standard clearance deductions. Contact CRL Technical Sales for guidance.

CRL shower door hinges are engineered for residential and hotel shower applications. For non-intended uses, obtain approval from CRL Shower Door Technical Sales. Use only the included hinge template—cut-outs for CRL hinges may differ from other brands.

Brass Finish Advisory:

Key benefits: easy field adjustment, self-centering action, solid brass construction, compatible with 8–12 mm tempered glass — ideal for retrofit or new shower door installations. Order GEN344ABR or contact CRL for technical assistance.
