CRL B5L Brushed SS Low-Profile Base Shoe Undrilled 1/2–5/8" Glass
Item# B5LBSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Brushed Stainless Steel
Glass Included
No

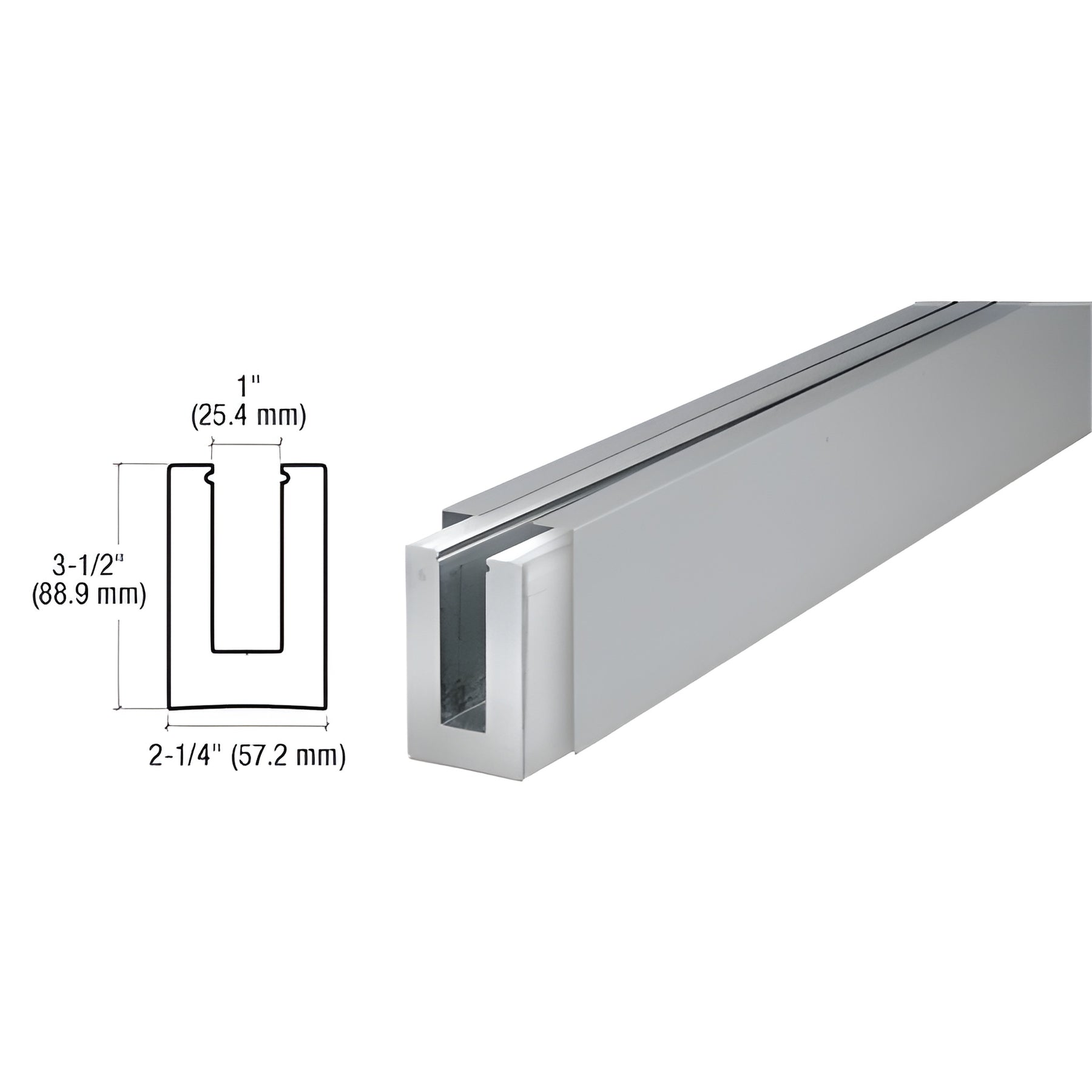

Height
3-1/2 in. (89 mm)
Length
Specify
Material
Aluminum
Width
2-1/4 in. (57 mm)
- Lower profile for residential, yacht and coastal applications
- Designed as the base channel for glass railing systems and windscreens
- Custom fabricated to your specifications (SKU: B5LBSC)
The CRL B5L Series Low Profile Square Base Shoe is a low-profile base channel engineered for glass railing systems and windscreens, available in several architectural finishes. Designed for the Wet Glaze method only, this base shoe requires correct attachment to the substrate—CRL supplies tested drilling patterns and fastener recommendations. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
SHIPPING NOTE: Due to packaging and handling challenges with 240" (6.10 m) stock lengths, we recommend Will Call pickup at our distribution centers. If shipment is required, packaging and handling terms must be agreed upon by CRL and the customer before shipping; all arrangements will be documented on your quotation for approval.
Product Warning:
Intended for 1/2" (12 mm) or 5/8" (16 mm) glass when using the Wet Glaze system. Caution: not compatible with Wedge Dry Glaze systems. Stock length tolerance for heavy base shoes is ±3/4" (19 mm).
Most shipping weights are approximate and may vary. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are actual or close representations; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Key differentiators: low-profile design for tight sightlines, multiple finish options, engineered attachment methods, and custom fabrication to fit unique glass railing projects. Contact CRL or request a quote to specify your Low Profile Square Base Shoe (B5LBSC) and begin your order.
Cleaning & Maintenance
