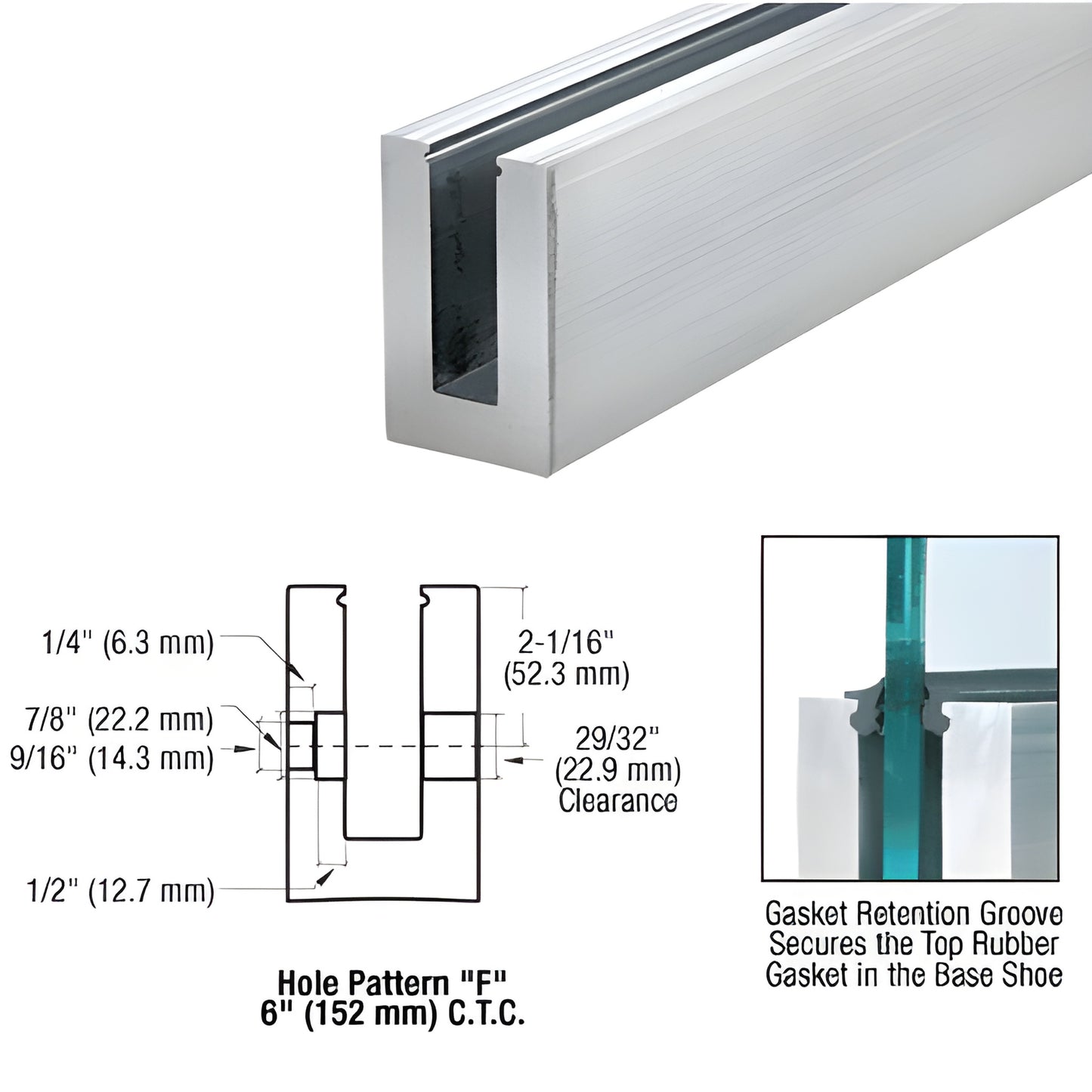

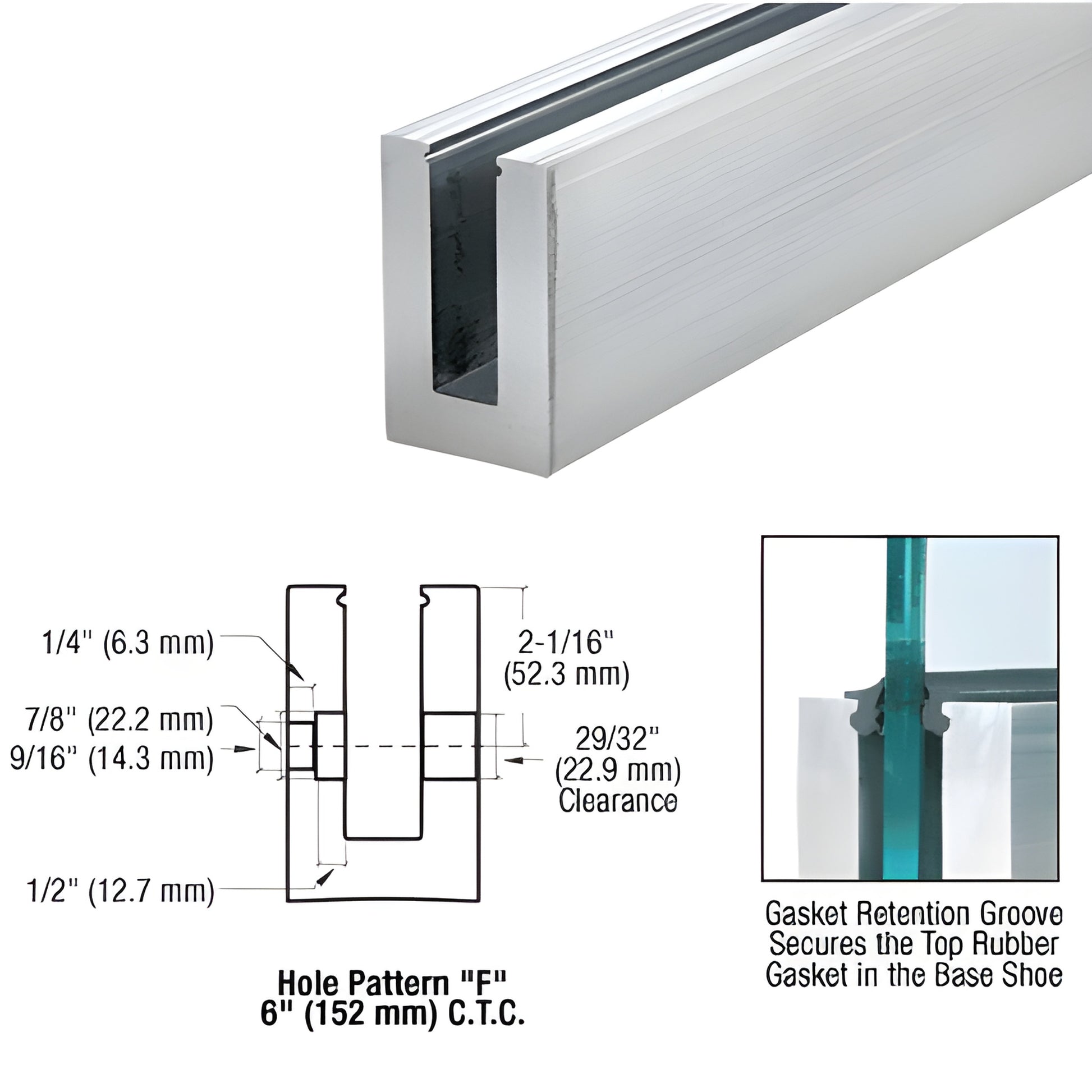

CRL B5S Series Mill Aluminum 240" Fascia Mount Square Base Shoe Drilled for 1/2" Glass

CRL B5S Series Mill Aluminum 240" Fascia Mount Square Base Shoe Drilled for 1/2" Glass

$3,096.79 CAD
$3,096.79 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# B5S20F6
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

Drilling Center To Center 6 in.(152 mm)
Finish/ColorMill
Glazing Thickness1/2 in. (13 mm)
GlazingType Monolithic
Length 240 in.(6096 mm)
MaterialAluminum

Overview

The CRL B5S Series Standard Square Base Shoe is an essential component for glass railing systems, designed for 1/2" (12 mm) monolithic tempered glass.
Primarily used as the base channel for glass railings or windscreens, it offers custom drilling and cutting services to meet specific installation needs.
Engineered to meet NBC load requirements when installed per ICC-3269 standards, this base shoe can be clad in six architectural finishes.
For optimal performance, CRL recommends powder-coated cladding over the base shoe, ensuring enhanced durability and aesthetic appeal.
For additional details, including installation instructions and maintenance tips, a comprehensive brochure is available.
