CRL B5T Series Mill Aluminum 120" Tapered Base Shoe Drilled for 1/2" Glass
CRL B5T Series Mill Aluminum 120" Tapered Base Shoe Drilled for 1/2" Glass
Regular price
$1,020.71 CAD
Regular price
Sale price
$1,020.71 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# B5T10D6
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

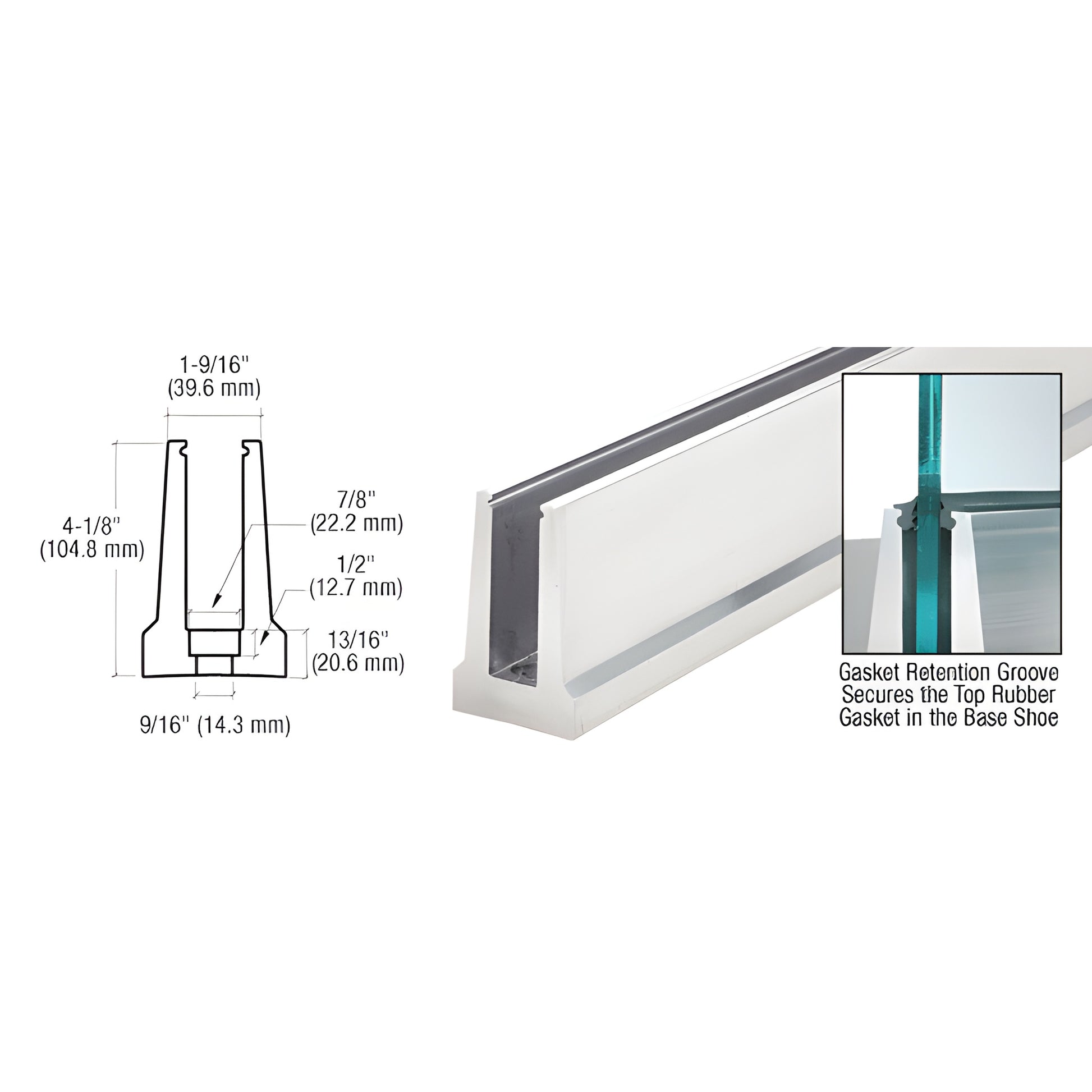

| Drilling Center To Center 6 in. | (152 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 1/2 in. (13 mm) |
| Glazing | Type Monolithic |
| Height 4-1/8 in. | (105 mm) |
| Length 120 in. | (3048 mm) |
| Material | Aluminum |
| Profile | Drilled |
Overview
The CRL B5T Tapered Base Shoe is an essential component for glass railing systems, designed specifically for 1/2" (12 mm) monolithic tempered glass.
It is expertly engineered to be the base channel in flush installations embedded in concrete, working seamlessly with the TL5X10 TAPER-LOC® 'X' Taper S.
This base shoe meets NBC load requirements when installed according to ICC-3269, and CRL offers custom drilling, cutting, and mitering services to match your specifications.
For optimal performance, powder-coated cladding should be applied over the base shoe, and precise drilling instructions are available to ensure secure installation.
If exact shipping weights are required, please contact CRL Customer Service before placing your order.
It is expertly engineered to be the base channel in flush installations embedded in concrete, working seamlessly with the TL5X10 TAPER-LOC® 'X' Taper S.
This base shoe meets NBC load requirements when installed according to ICC-3269, and CRL offers custom drilling, cutting, and mitering services to match your specifications.
For optimal performance, powder-coated cladding should be applied over the base shoe, and precise drilling instructions are available to ensure secure installation.
If exact shipping weights are required, please contact CRL Customer Service before placing your order.
