CRL
CRL B6N 120" Mill Aluminum Square Base Shoe for 5/8" Glass
Item# B6NDC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

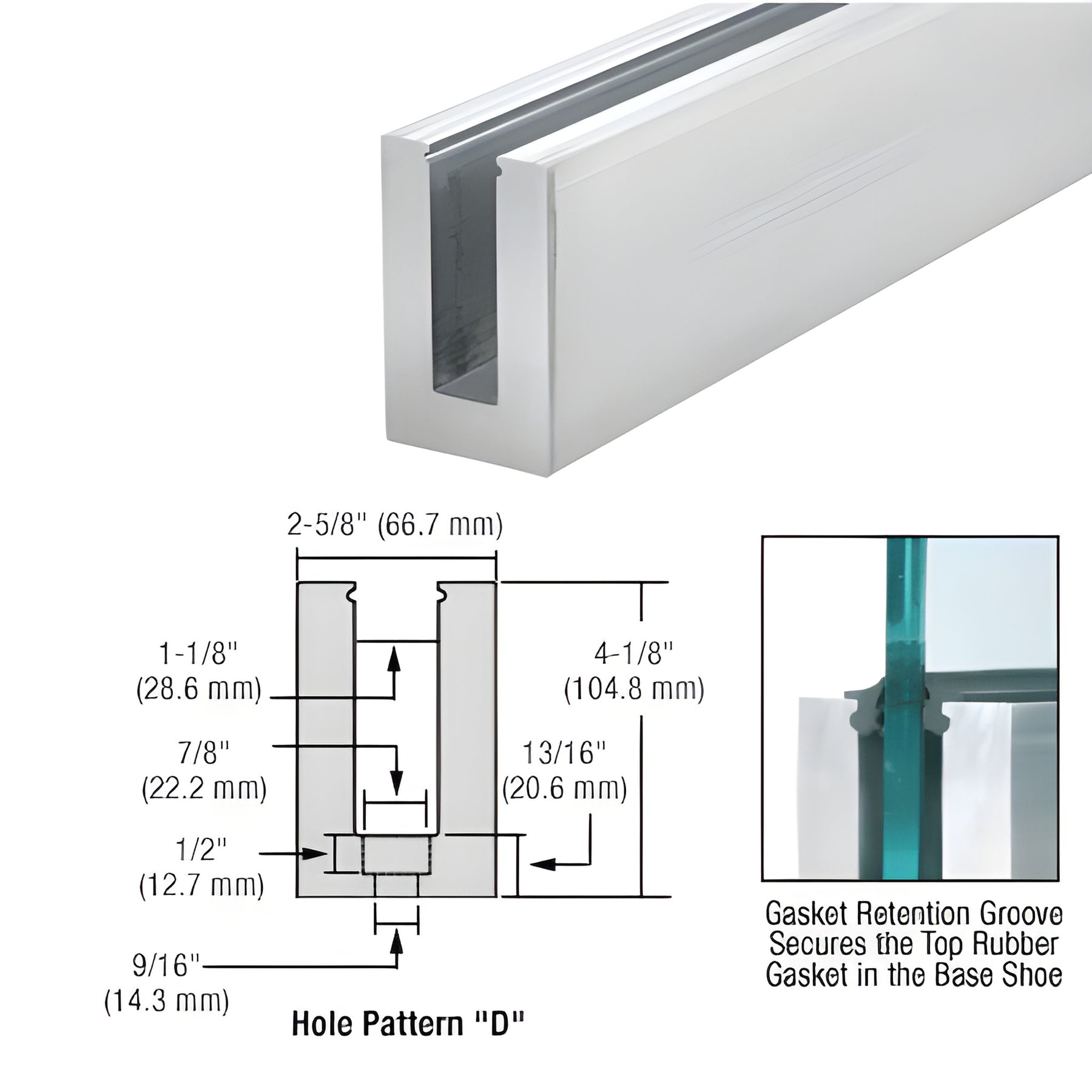

Drilling Center To Center
12 in. (305 mm)
Finish/Color
Mill
Glass Included
No
Glazing Thickness
5/8 in. (16 mm)
Height
4-1/8 in. (105 mm)
Length
120 in. (3048 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
- Fits 5/8" monolithic tempered glass — thickness range 15.09 to 16.66 mm (.595" to .656")
- Designed as the base channel (base shoe) for glass railing systems and frameless glass balustrades
- Available drilled & counter-bored or custom drilled to your specifications
- Custom cutting and mitering service available
CRL B6 Series Standard Square Base Shoe — SKU: B6NDC is a durable, engineered base channel for glass railing systems. Clad in six architectural finish options, the B6 Series emphasizes secure substrate attachment: CRL provides five engineered attachment methods and compatible fasteners to ensure a reliable installation. Reference HR11 (pages B132–B133 for attachment methods; pages B156–B157 for fasteners) for technical details. A printed brochure with installation instructions, cleaning and refinishing guidance, and installation hints is available.
Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images show the actual product or a close representation; colors may vary depending on monitor settings.
Order the B6 Series base shoe (B6NDC) for secure, customizable glass railing installations — contact CRL Customer Service to request custom drilling or a printed brochure.
