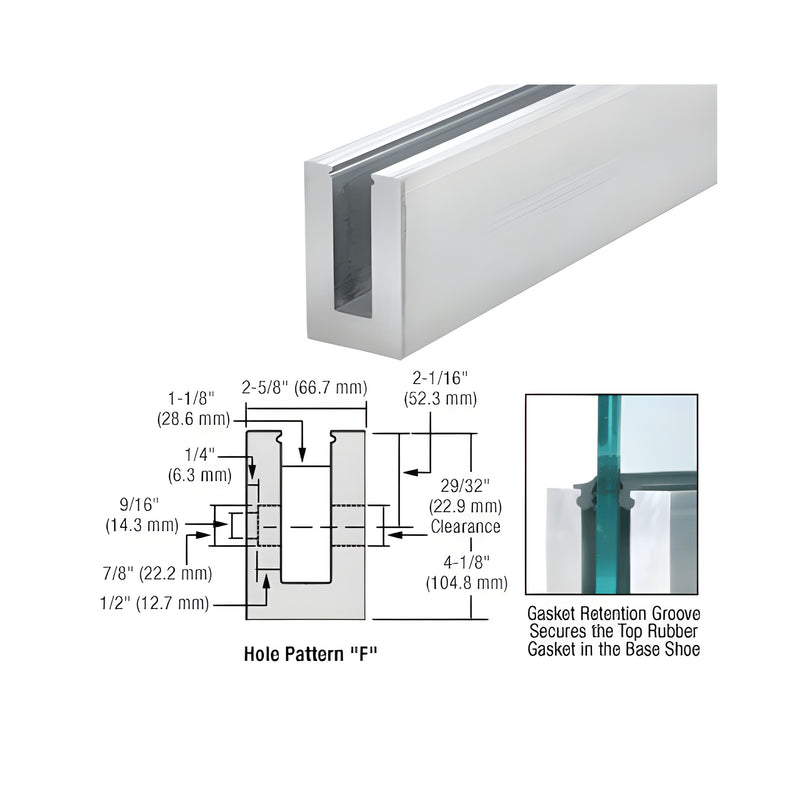

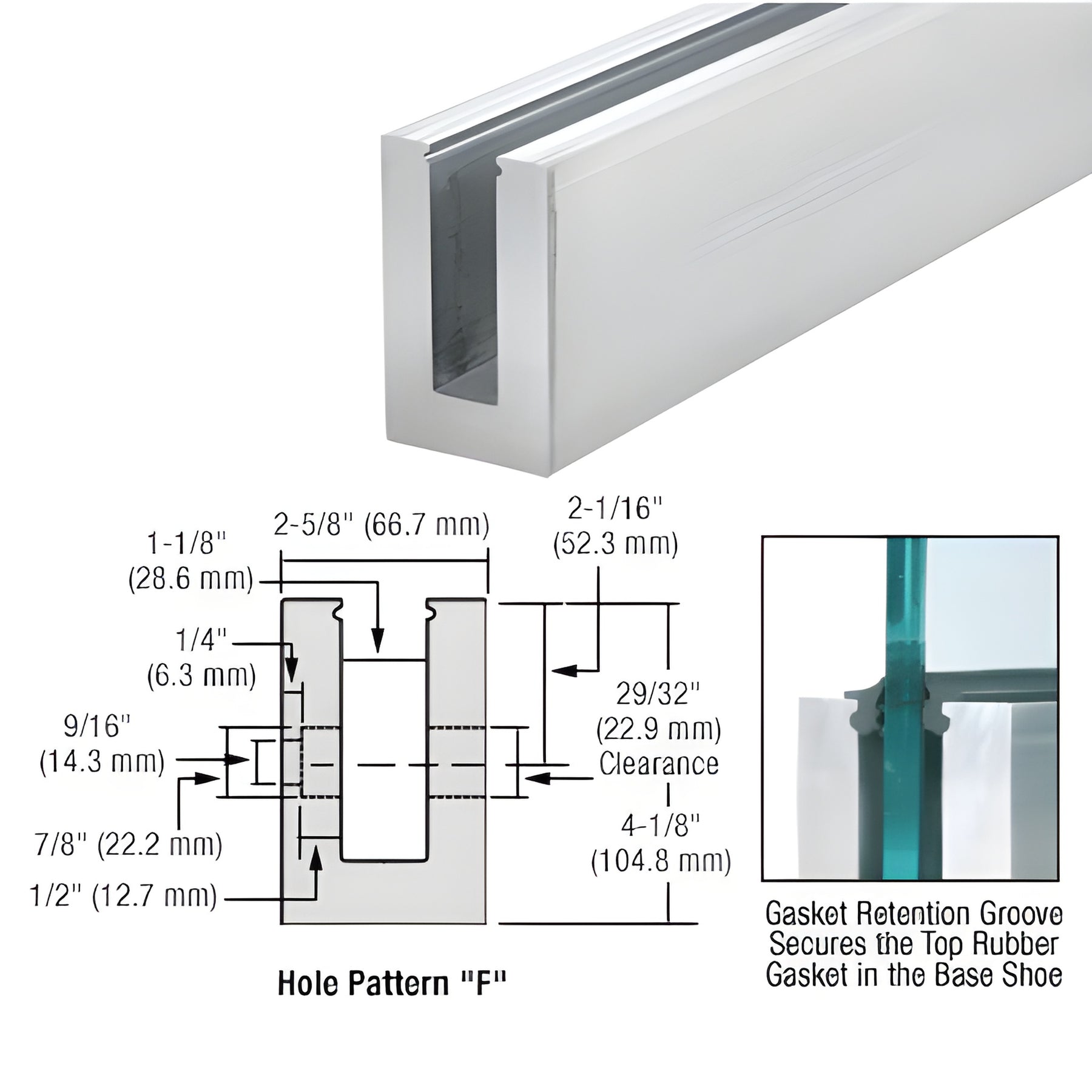

CRL B6N Series Mill Aluminum 120" Fascia Mount Square Base Shoe Drilled for for 5/8" Glass

• For 5/8" Monolithic Tempered Glass (Thickness Range 15.09 to 16.66 mm (.595" to .656")
• Typically Used as the Base Channel for Glass Railing Systems
• Drilled and Counter Bored, or We Will Custom Drill to Your Specifications
• Custom Cutting and Mitering Service Available

CRL B6 Series Standard Square Base Shoe

is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. The five engineered methods of attachment can be found in our HR11 catalog on pages B132 to B133, and associated fasteners are shown on pages B156 to B157. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
