CRL B6N Series Mill Aluminum 120" Standard Square Base Shoe Undrilled for 5/8" Glass

CRL B6N Series Mill Aluminum 120" Standard Square Base Shoe Undrilled for 5/8" Glass

$1,010.47 CAD
$1,010.47 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# B6N10
Shipping Weight: 82.5 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

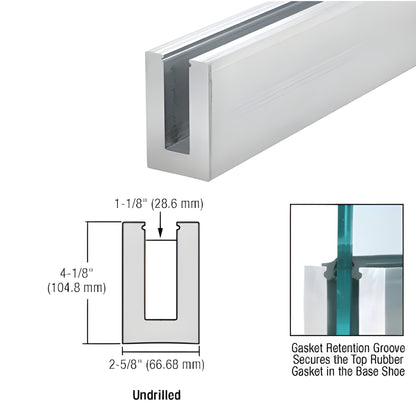

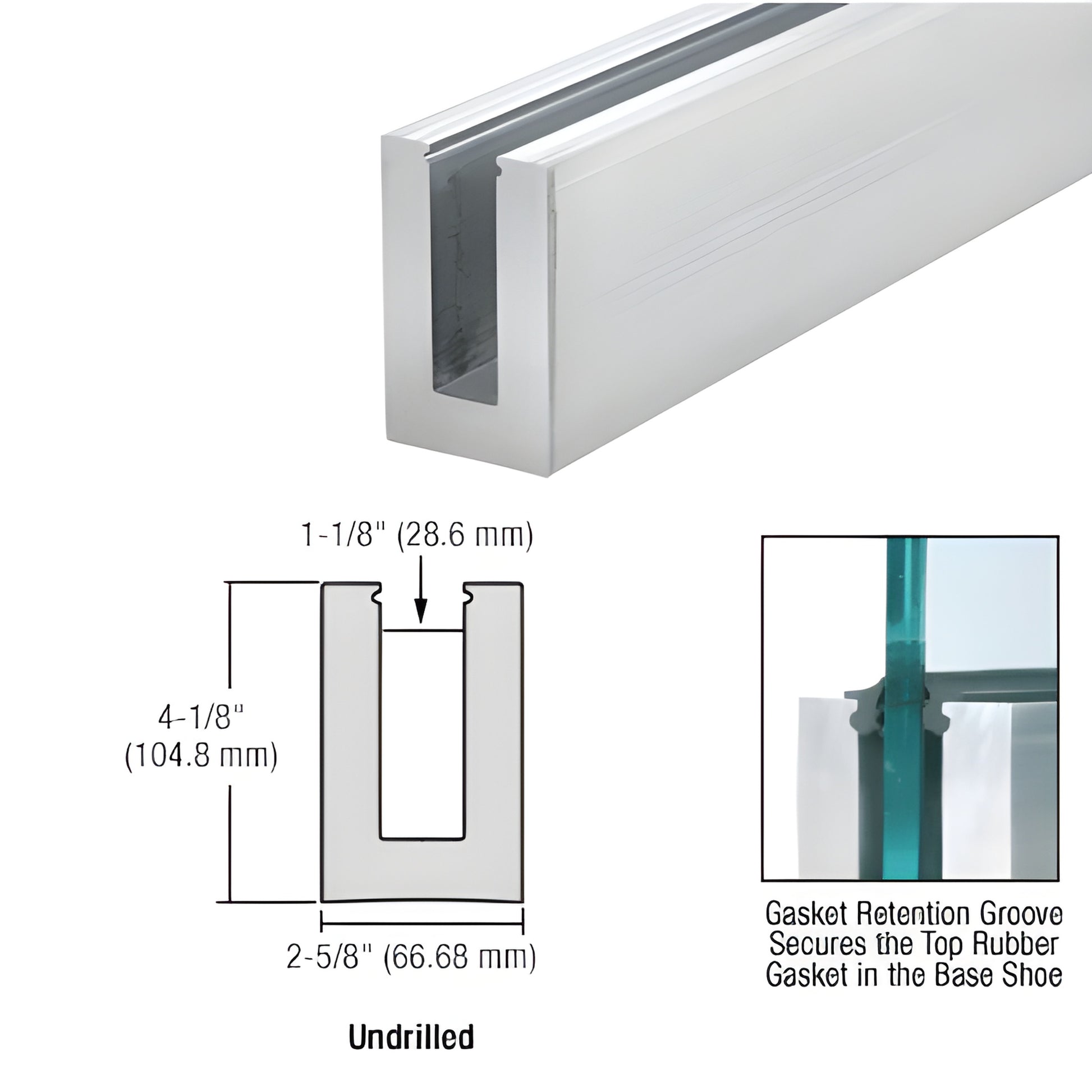

Product Information

Description

Finish/ColorMill
GlassIncluded No
Glazing Thickness5/8 in. (16 mm)
GlazingType Monolithic
Height 4-1/8 in.(105 mm)
Length 120 in.(3048 mm)
MaterialAluminum
Width 2-5/8 in.(67 mm)

Overview

The CRL B6 Series Standard Square Base Shoe is expertly designed for glass railing systems using 5/8" Monolithic Tempered Glass, with a thickness range of .595" to .656" (15.09 to 16.66 mm).
This undrilled base shoe meets NBC load requirements when properly installed according to ICC-3269 standards.
Available in six architectural finishes, it is crucial to attach the base shoe correctly to the substrate for optimal performance.
Discover the five engineered attachment methods and compatible fasteners in our HR11 catalog.
Please note, direct powder coating is not recommended; instead, apply powder-coated cladding over the base shoe.
For detailed installation instructions and maintenance tips, request our brochure.
Contact CRL Customer Service for exact shipping weights if needed.
