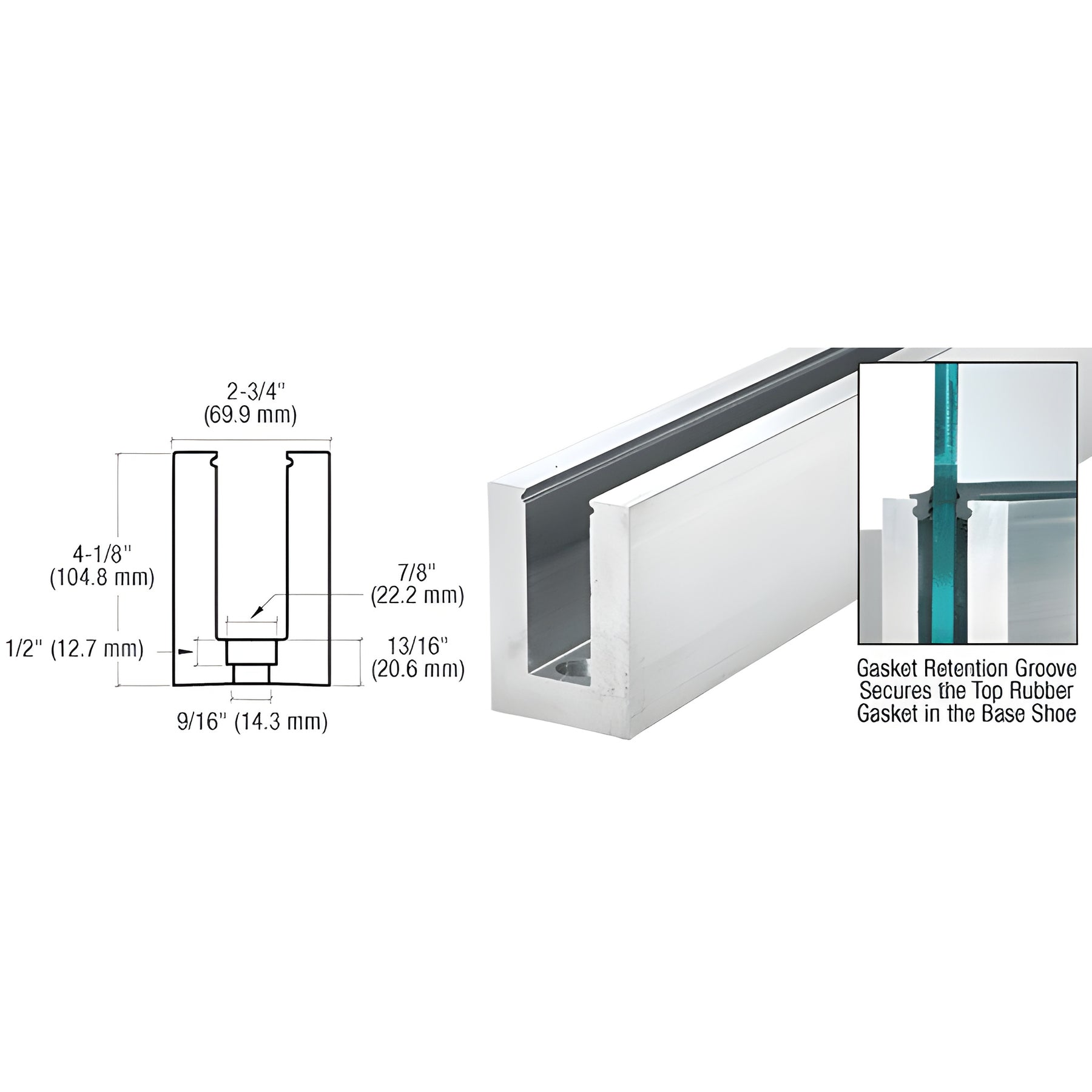

CRL B7S Mill Aluminum Base Shoe, Drilled for 3/4" Glass, 20 ft

• For 3/4" (19 mm) monolithic tempered glass
• Typically used as the base channel for glass railing systems in arenas and stadiums
• Drilled and counter-bored 6" (152 mm) center-to-center; custom drilling available to your specifications
• Custom cutting and mitering service available
• CRL glass railing systems meet NBC load requirements when installed in accordance with ICC-3269

The CRL B7S Series Heavy-Duty Square Base Shoe (SKU: B7S20D6) is a heavy-duty base channel designed for 3/4" tempered glass railing systems. Available with six architectural cladding finishes, this base shoe is engineered and tested for reliable attachment to concrete or steel substrates using CRL’s proven drilling patterns and fasteners.

Key differentiators:

• Designed specifically for 3/4" (19 mm) monolithic tempered glass — ideal for arena and stadium glass railing installations
• Pre-drilled 6" (152 mm) center-to-center pattern with custom drill options for project-specific layouts
• Available clad finishes protect the extrusion and simplify on-site finishing (recommended over direct powder coating)
• Custom cutting and mitering service for precise, job-ready base shoes

Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder-coated cladding applied over the base shoe is the recommended method.

All pre-drilled CRL base shoes have a +1/8" (3 mm)/-1/16" (1.5 mm) tolerance between holes. Before drilling installation holes in the substrate, place the base shoe in its final position and mark hole locations to ensure accurate anchoring.

For project quotes, custom drilling, or to order SKU B7S20D6, contact CRL or request a printed brochure with installation instructions and maintenance tips. Order now to secure the correct base shoe for your glass railing system.
