CRL B7S Series Mill Aluminum 120" Square Base Shoe Drilled for 3/4" Glass
CRL B7S Series Mill Aluminum 120" Square Base Shoe Drilled for 3/4" Glass
Regular price
$1,119.26 CAD
Regular price
Sale price
$1,119.26 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# B7S10D
Shipping Weight: 83.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 83.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

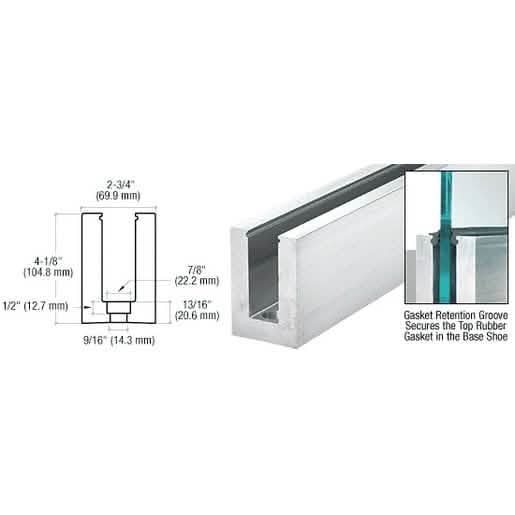

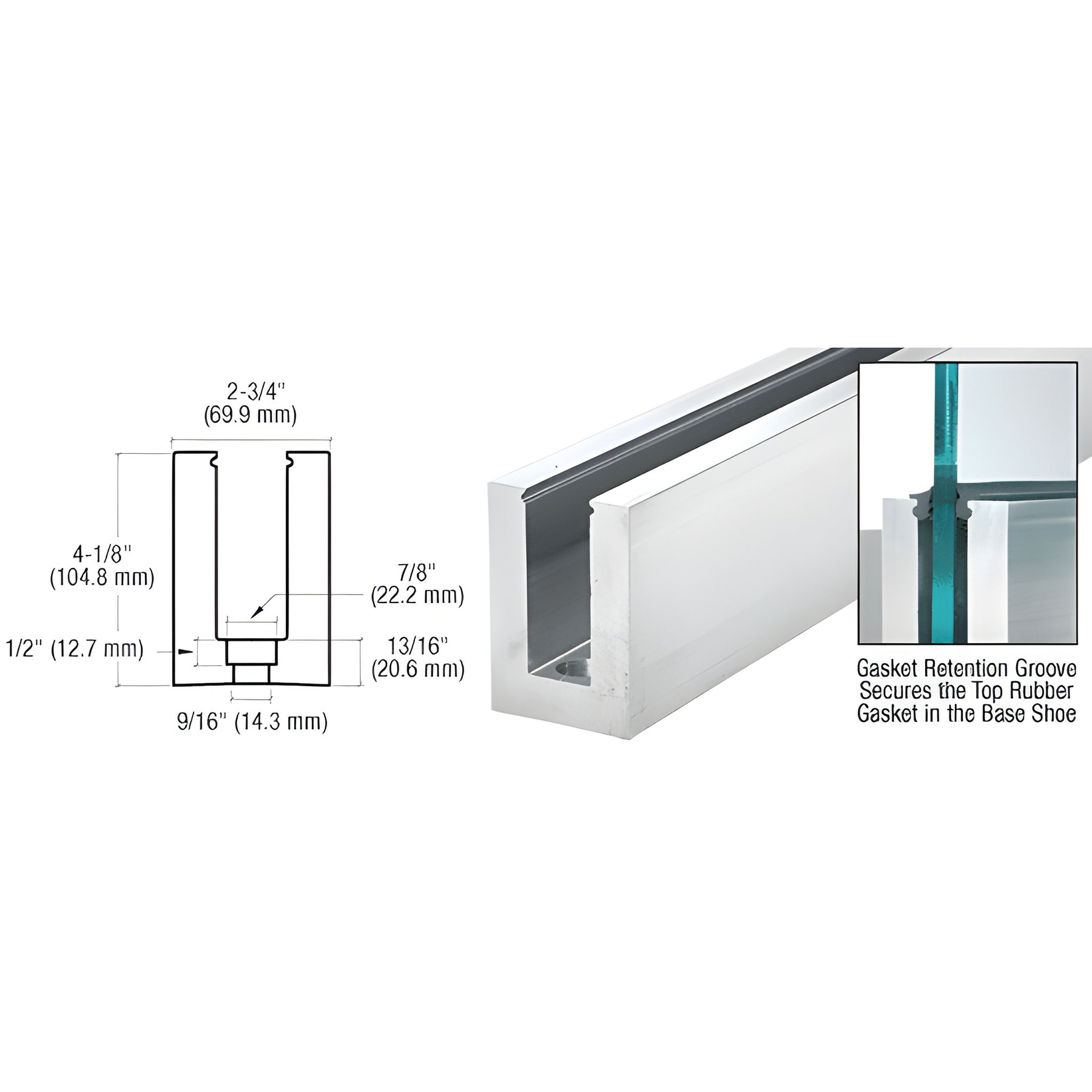

Description
| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 3/4 in. (19 mm) |
| Glazing | Type Monolithic |
| Height 4-1/8 in. | (105 mm) |
| Length 120 in. | (3048 mm) |
| Material | Aluminum |
| Profile | Drilled |
| Width 2-3/4 in. | (70 mm) |
Overview
The CRL B7S Series Heavy-Duty Square Base Shoe is expertly designed for 3/4" (19 mm) monolithic tempered glass, making it the ideal base channel for glass railing systems in arenas.
Available in pre-drilled 10' and 20' lengths, it can be custom drilled to your specifications to ensure a precise fit.
With a variety of architectural finishes, this base shoe meets NBC load requirements when installed according to ICC-3269 standards.
For optimal results, CRL recommends using powder-coated cladding over the base shoe, and offers a custom cutting and mitering service to meet your specific needs.
Available in pre-drilled 10' and 20' lengths, it can be custom drilled to your specifications to ensure a precise fit.
With a variety of architectural finishes, this base shoe meets NBC load requirements when installed according to ICC-3269 standards.
For optimal results, CRL recommends using powder-coated cladding over the base shoe, and offers a custom cutting and mitering service to meet your specific needs.
