CRL B7S Series Mill Aluminum 240" Square Base Shoe Drilled for 3/4" Glass
CRL B7S Series Mill Aluminum 240" Square Base Shoe Drilled for 3/4" Glass
Regular price
$2,172.66 CAD
Regular price
Sale price
$2,172.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# B7S20D
Shipping Weight: 170.54 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 170.54 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

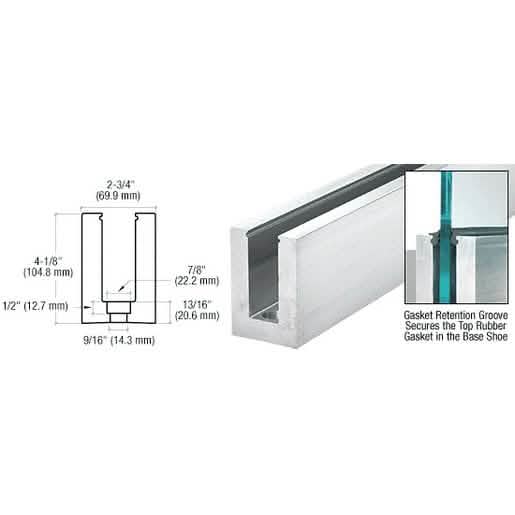

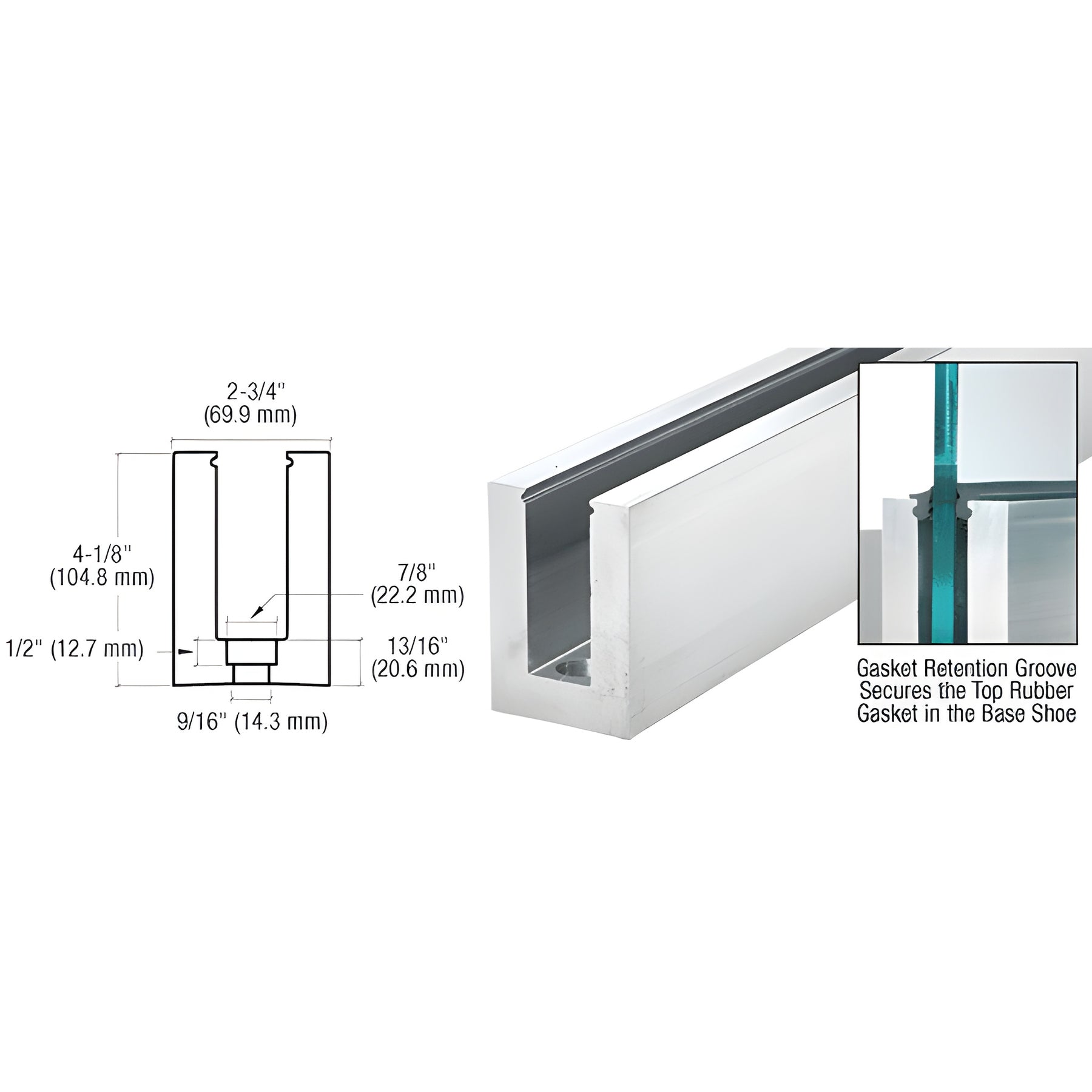

Description
| Drilling Center To Center 12 in. | (305 mm) |
| Finish/Color | Mill |
| Glazing Thickness | 3/4 in. (19 mm) |
| Glazing | Type Monolithic |
| Height 4-1/8 in. | (105 mm) |
| Length 240 in. | (6096 mm) |
| Material | Aluminum |
| Profile | Drilled |
| Width 2-3/4 in. | (70 mm) |
Overview
The CRL B7S Series Heavy-Duty Square Base Shoe is expertly designed for 3/4" (19 mm) monolithic tempered glass, making it an ideal choice for glass railing systems, particularly in arenas.
This base shoe can be customized with drilled and counter-bored options at 12" (305 mm) centers or tailored to your specifications, with the added benefit of custom cutting and mitering services.
Engineered to meet NBC load requirements when correctly installed according to ICC-3269, the CRL system ensures robust and secure glass railing installations.
Additionally, the product offers versatile cladding options in six architectural finishes, enhancing both the functionality and aesthetic appeal of your project.
For optimal results, powder coating is recommended on the cladding, not directly on the base shoe.
Ensure precise installation by marking hole positions before drilling into concrete or steel substrates.
For a seamless experience, contact CRL Customer Service for assistance with shipping weights and costs.
This base shoe can be customized with drilled and counter-bored options at 12" (305 mm) centers or tailored to your specifications, with the added benefit of custom cutting and mitering services.
Engineered to meet NBC load requirements when correctly installed according to ICC-3269, the CRL system ensures robust and secure glass railing installations.
Additionally, the product offers versatile cladding options in six architectural finishes, enhancing both the functionality and aesthetic appeal of your project.
For optimal results, powder coating is recommended on the cladding, not directly on the base shoe.
Ensure precise installation by marking hole positions before drilling into concrete or steel substrates.
For a seamless experience, contact CRL Customer Service for assistance with shipping weights and costs.
