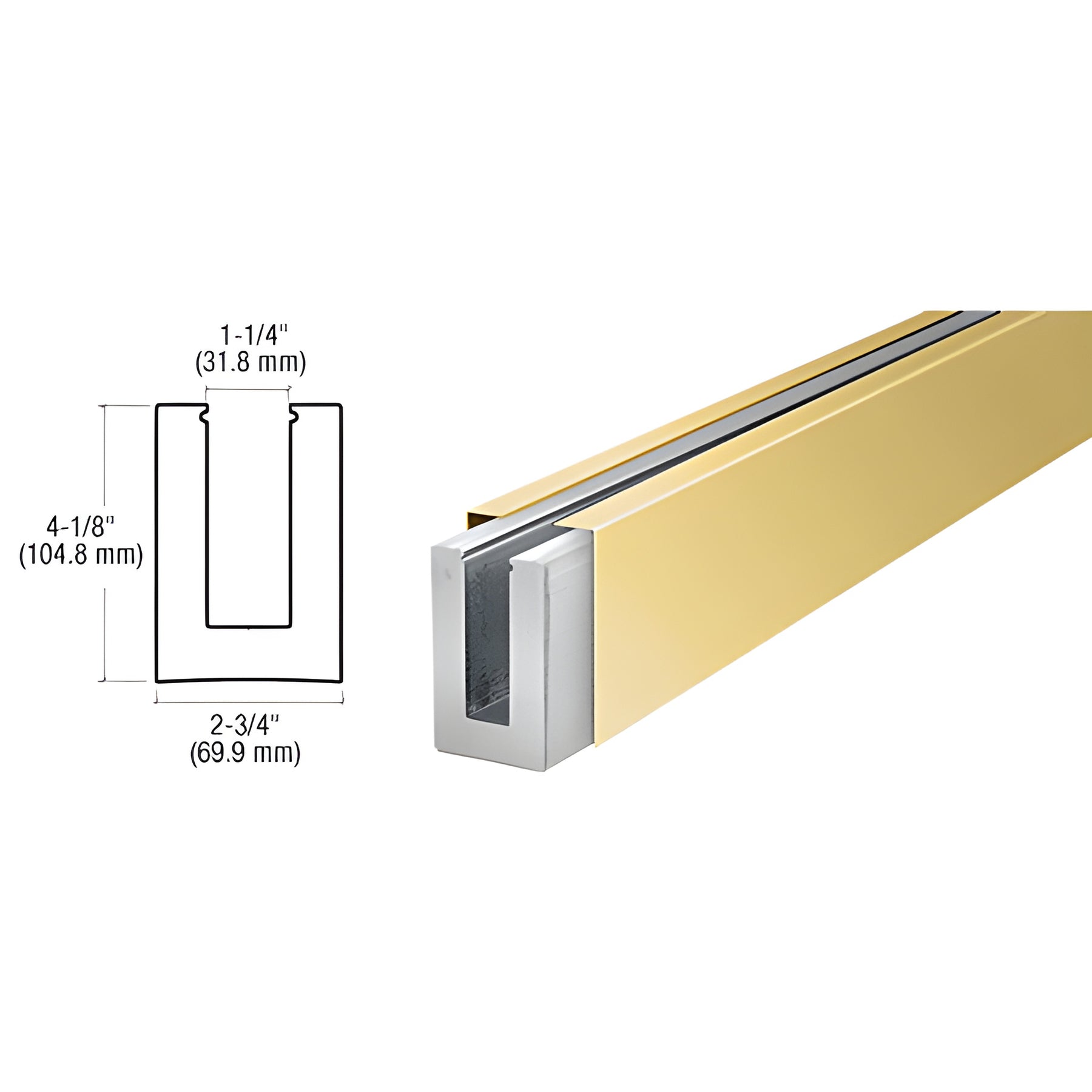

• B7SPBC polished brass aluminum base shoe for glass railings, 4-1/8 H 2-3/4 W, fits 3/4 glazing
1 1

CRL

CRL B7S Polished Brass Square Glass Clamp - Custom 3/4 in

CRL B7S Polished Brass Square Glass Clamp - Custom 3/4 in

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# B7SPBC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Drilling Center To Center
Specify
Finish/Color
Polished Brass
Glass Included
No
Glazing Thickness
3/4 in. (19 mm)
Height
4-1/8 in. (105 mm)
Material
Aluminum
Width
2-3/4 in. (70 mm)

Overview

  • Typically used as the base channel for glass railing systems and windscreens — heavy-duty square base shoe (SKU: B7SPBC)
  • Custom drilling to your specifications — pre-drilled hole patterns and counterbores available for secure substrate attachment
  • Custom cutting and mitering service for precise, job-ready lengths

The CRL B7S Series heavy-duty square base shoe is engineered for glass railing systems and can be clad in multiple architectural finishes. Proper attachment of the base shoe to the substrate is critical; CRL has tested a variety of attachment methods and approved drilling patterns and fasteners to ensure a secure installation. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.


NOTE: 120" (3.05 m) and 240" (6.1 m) extrusions (extrusion only, without holes) cannot be used for the Dry Glaze System unless fabricated with the tested and approved hole and counterbore pattern. The Dry Glaze System requires counterbored attachment holes so no part of the fastener protrudes above the base of the channel opening. SHIPPING NOTE: Due to packaging and handling challenges with 240" (6.1 m) stock lengths, Will Call pickup at a distribution center is recommended. If shipment is required, all packaging and handling terms must be agreed to by CRL and the customer prior to shipping and will be documented on your quotation for approval.

Shipping weights are approximate and may vary. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are representative; actual color and finish can vary by monitor settings.

Brass Finish Advisory:
Brass and brass finishes are durable but prone to oxidation and tarnishing over time, regardless of initial packaging or storage. For care and maintenance information, see the Brass Finish Disclaimer in the Technical References section.

Ready to specify B7SPBC for your glass railing project? Contact CRL or request a quote today.
