CRL Beige Roll-Formed Aluminum Window Screen Frame 1 x 7/16, 144 in

• Typical Applications: Sliding, Storm, and Casement Windows
• .025" (.63 mm) Wall Thickness
• Several Finishes Available

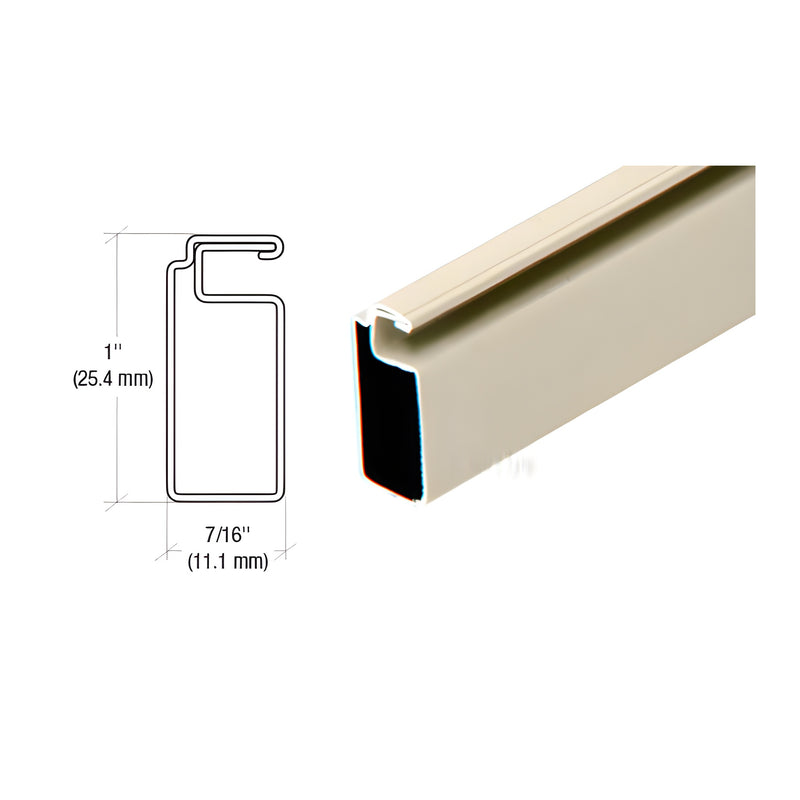

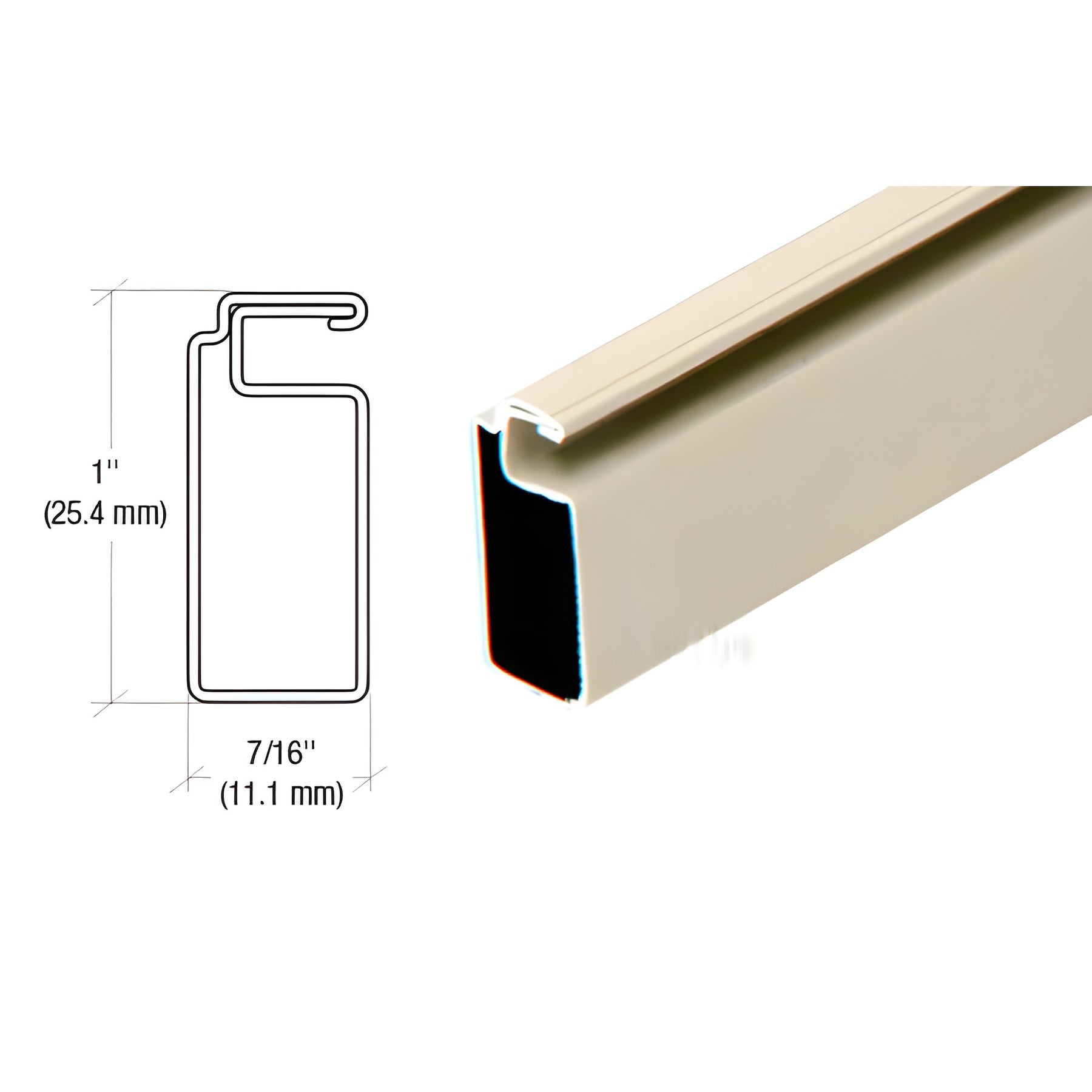

CRL 1" x 7/16" (25.4 x 11 mm) Screen Frame — SKU: WSF17BGE
This roll-formed aluminum screen frame has a .025" wall and is cambered (slightly bowed) to maintain screen tension after installation. Designed for replacement and new-construction applications, it accepts CRL .170" spline and uses WSC108 aluminum corners for mitered frame assemblies. Ideal as an aluminum screen frame for sliding windows, storm windows, and casement windows where a durable, tension-retaining profile is required.

SPECIFICATIONS:
Material: Roll Formed Aluminum
Wall Thickness: .025" (.63 mm)
Uses Spline Size: .170" (4.3 mm)
Uses Corners: WSC108 for Mitered Corners

Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Because of tolerances in coil stock and stretch in the roll-forming process, actual stock thickness can vary by ±.002" (.05 mm). This manufacturing tolerance is standard in the industry.

Order WSF17BGE now or contact CRL Customer Service to confirm finish options, weight, or custom cut lengths.
