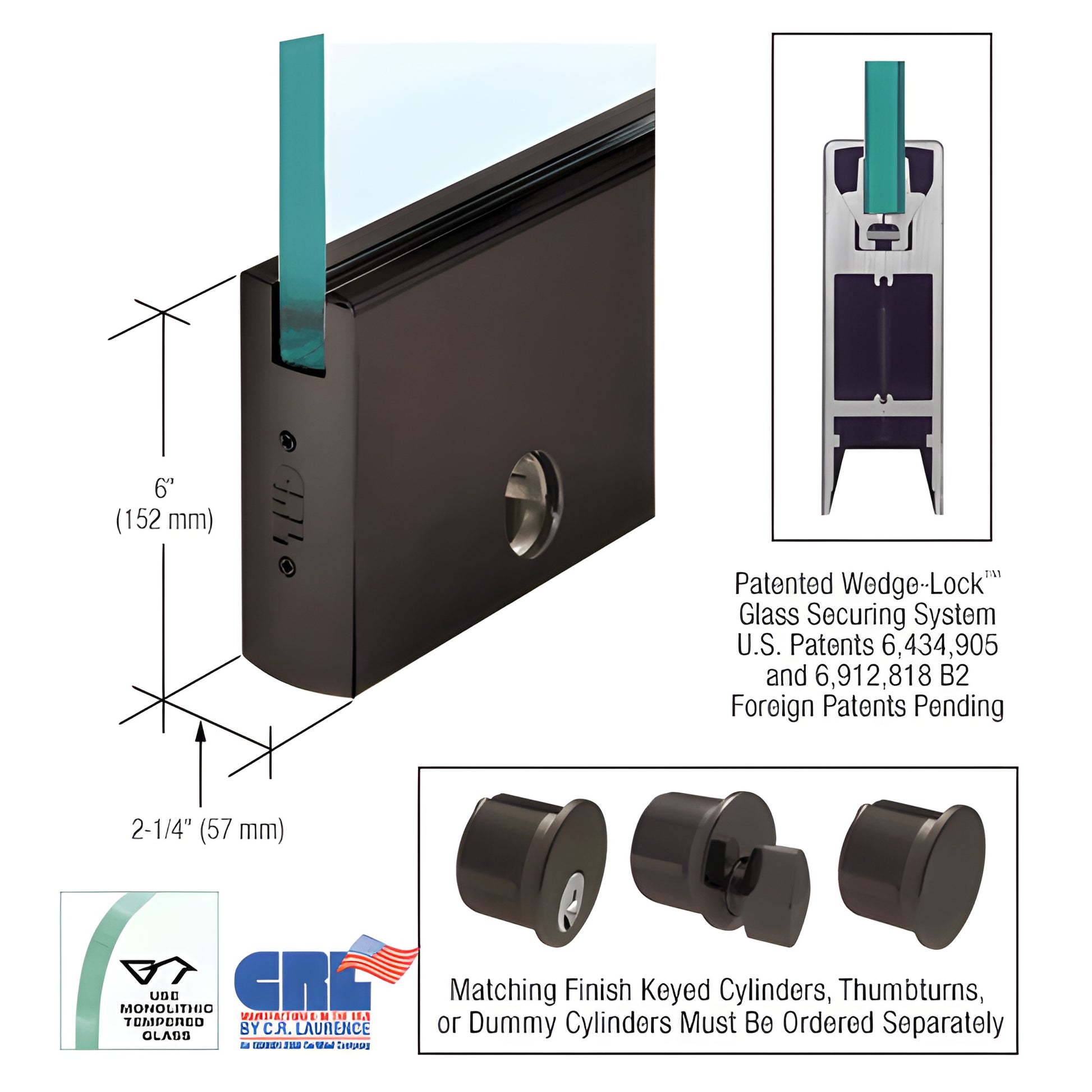

CRL Black Bronze 3/4 in Glass 6 in Door Rail w/ Lock - Custom Length

• Custom length for 3/4" (19 mm) monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System for secure glass retention
• Models available to fit 3/8" to 3/4" (10 to 19 mm) glass
• Several stock architectural finishes; custom finishes available
• Available with or without locks; matching sidelite rails available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SDU34CL) uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to clamp and secure tempered glass from the bottom of the rail. Two glass-retaining aluminum extrusions are forced together by a flat stainless-steel bar tightened with socket head cap bolts. The extrusions seat into an angled groove, creating a wedge action that produces extremely high clamping force (more than 900 lbs. in the 9" / 228.6 mm corner rail) — delivering industry-leading strength in full-length door rails.

The Wedge-Lock® system also dramatically reduces installation time. Experienced installers can prepare a door for hanging in under ten minutes. Rails come fully fabricated and ready-to-install with end caps installed. After rail installation, simply attach the pivot or door arm (not included) to the pre-assembled adjustable door alignment slide.

Adjustable Door Alignment System: Standard on top and bottom rails, allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door. Adjustment access is via the removable end cap revealing three socket head cap bolts (center bolt locks the slide; two outer bolts adjust the slide).

Key Differentiators:

• Fastest installation time among door rail systems — less on-site labor
• Rigid single-component housing that resists shifting or loss of adjustment over time
• Internal components remain in place during installation — no disassembly required
• Durable glass securing pads engineered for longevity in extreme environments
• Allows fabrication for vertically out-of-square openings and non-standard pivot setbacks

Notes & Specifications: Models accept 3/8" or 1/2" (10 or 12 mm) glass in addition to 3/4" (19 mm). All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms, pivots, closer arms, and floor or overhead pivots must be ordered separately. Models with locks are supplied with the lock mechanism installed; keyed cylinders or thumbturns must be ordered separately. End caps are included; specify door rail length (including end caps
