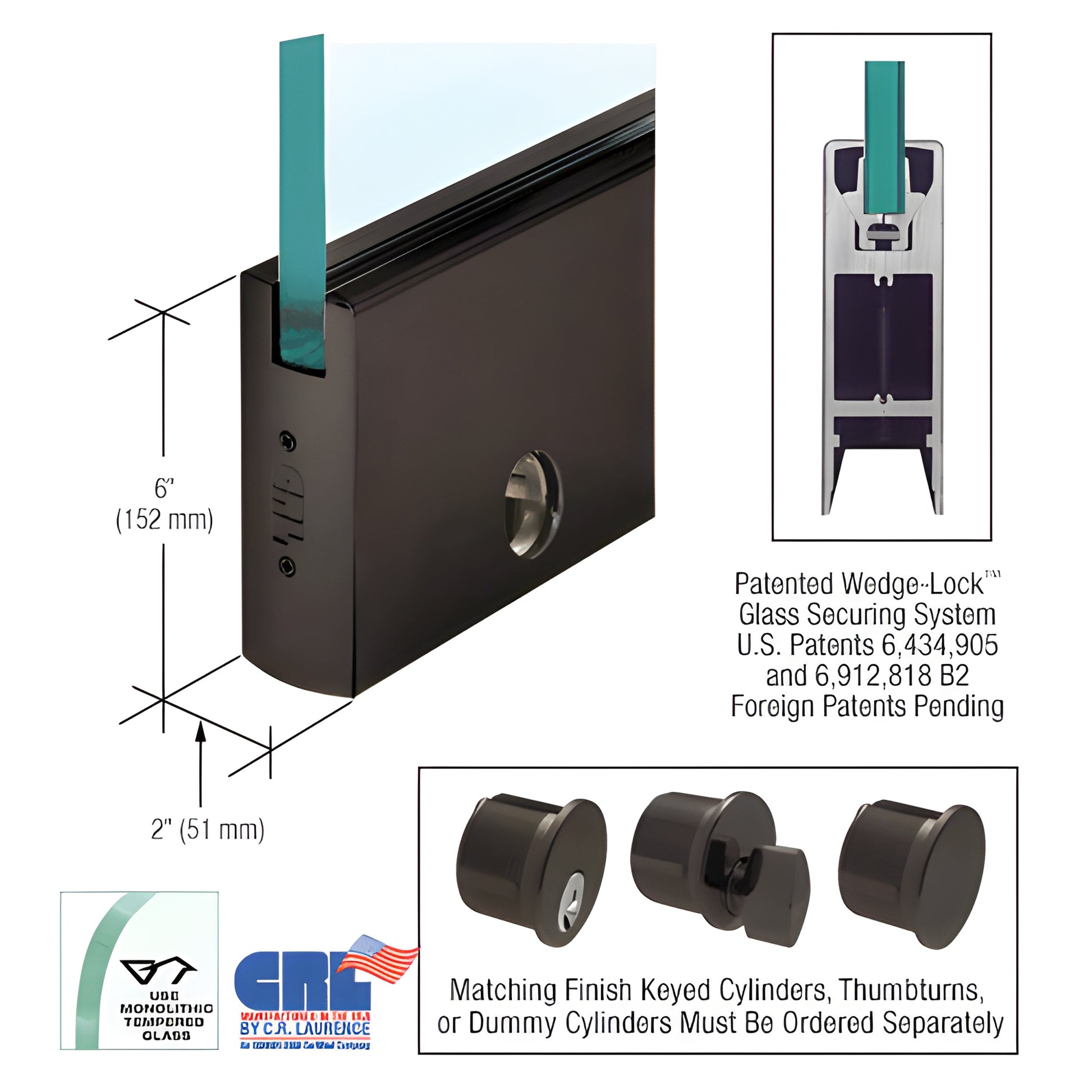

CRL Black Bronze 35-3/4" Square 6" Glass Door Rail w/ Lock (1/2")

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (high-force, secure glass retention)
• Models available for 3/8" to 3/4" (10 to 19 mm) glass
• Several stock architectural finishes; custom finishes available
• Available with or without locks
• Matching sidelite rails available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SDU12SL) uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to clamp glass securely from the bottom. Two glass-retaining aluminum extrusions and a flat stainless steel bar are pulled down with socket head cap bolts into an angled groove, creating wedge pressure that secures the glass. In our 9" (228.6 mm) corner rail this generates more than 900 lbs. of force (about 100 lbs. per inch), delivering exceptional holding strength in full-length door rails—ideal for commercial glass door installations and heavy-use storefront doors.

NOTE: Actual product height: 6" (152 mm).

The Wedge-Lock® system also reduces installation time. Experienced installers can prepare a door for hanging in under ten minutes. Door rails arrive fully fabricated and ready to install with end caps installed. After rail installation, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The Adjustable Door Alignment System allows 1/8" (3.2 mm) in/out adjustment without removing the door—standard on both top and bottom rails.

To access adjustments after installation, remove the end cap to reveal three socket head cap bolts: the center bolt secures the slide and the two outer bolts provide the 1/8" in/out adjustment. The low-profile slide permits pivots with slotted grooves to be positioned off the American Standard setback (2-3/4" / 69.8 mm) and accommodates vertically out-of-square openings.

Why choose CRL Wedge-Lock® Door Rails?

• Models accept 3/8" or 1/2" (10 or 12 mm) glass
• Rigid single-component housing resists shifting and maintains long-term alignment
• Internal components remain in place—no removal required before installation
• Durable glass-securing pads engineered for longevity in extreme environments
• Built-in jamb alignment block standard (arms and pivots sold separately)

Available in multiple standard finishes; custom finishes and widths quoted on request. Rail specifications, templates and hardware packages are available from CRL Technical Sales.
