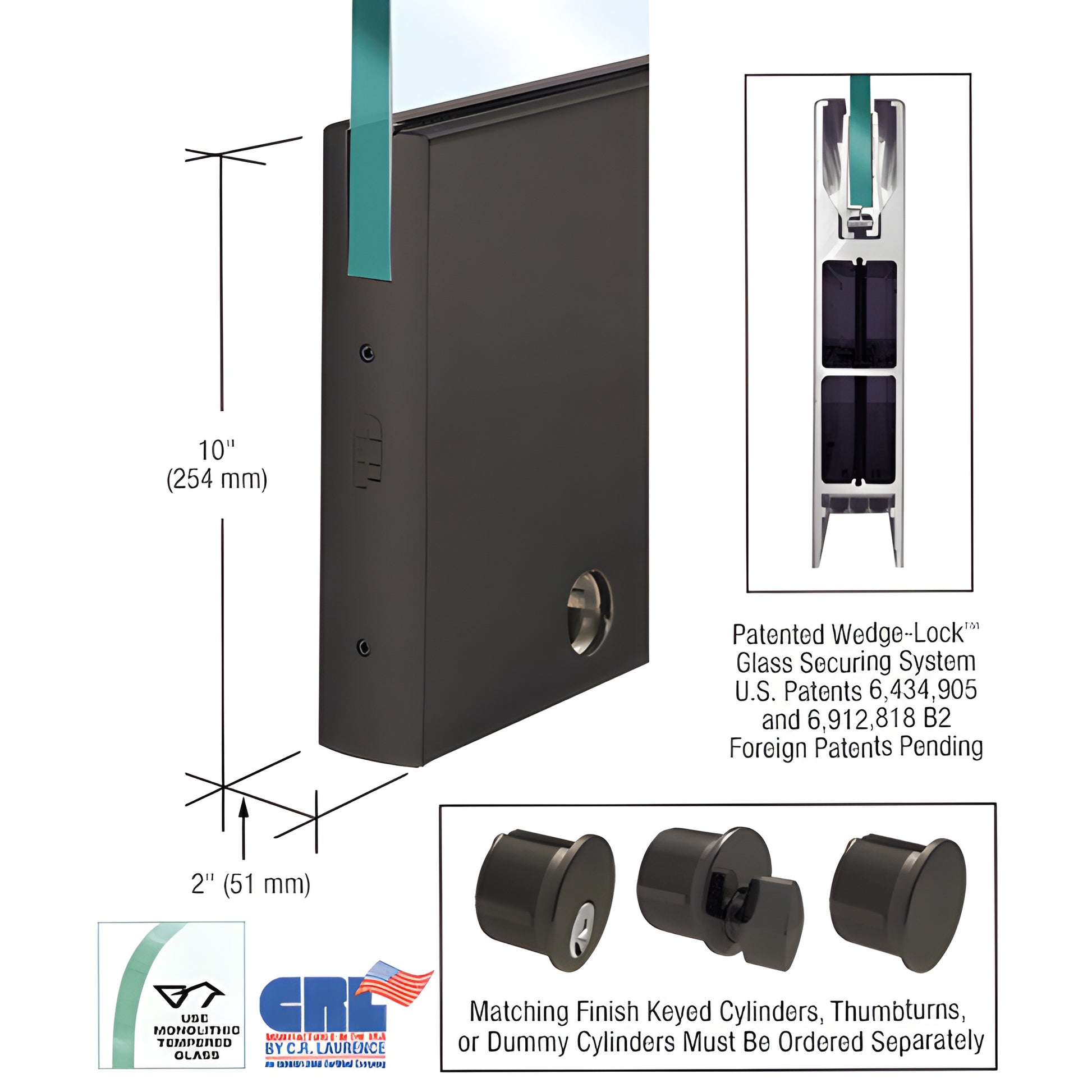

CRL 10" Black Bronze Anodized 1/2" Glass Door Rail with Lock, Custom

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (U.S., Canadian & EU patents)
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR10SDU12CL

Our innovative glass entrance product, the CRL Wedge-Lock® Door Rail System, features the exclusive CRL Wedge-Lock® Securing System. The system secures glass by applying downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar tightened with socket head cap bolts. The angled extrusions engage an angled groove in the rail so the wedge action compresses the extrusions and gasket, producing extremely high retention force (more than 900 lbs. in our 9" corner rail). This robust design delivers secure glass attachment for monolithic tempered doors and is ideal for commercial storefront and glass door applications.

Key differentiators:

• Patented Wedge-Lock® mechanism — high clamping force and durable retention pads for extreme environments.
• Factory-fabricated, ready-to-install rails with End Caps installed — fast jobsite installation (experienced installers can prepare a door in under 10 minutes).
• Standard Adjustable Door Alignment Slide — +/-1/8" (3 mm) adjustment on both top and bottom rails without removing the door.
• Rigid single-component housing — resists shifting and maintains long-term adjustment.
• Models accept 3/8" to 3/4" (10 to 19 mm) glass where applicable; rails are available in standard and custom finishes.

Installation & adjustment: After installation, remove the End Cap to access three socket head cap bolts. The center bolt secures the adjustable slide; the outer bolts adjust the slide 1/8" (3 mm) in or out. Low-profile slide allows pivot placement other than the American Standard setback for out-of-square openings. Arms and pivots must be ordered separately to match job requirements.

Product size note: Actual product height: 10" (254 mm). All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block. Closer arms and floor or overhead pivots are not included.

Ordering information:

• All Door Rails supplied with standard Kwik-Adjust™ Pivot Alignment System. Order closer arms, floor or overhead pivots separately.
