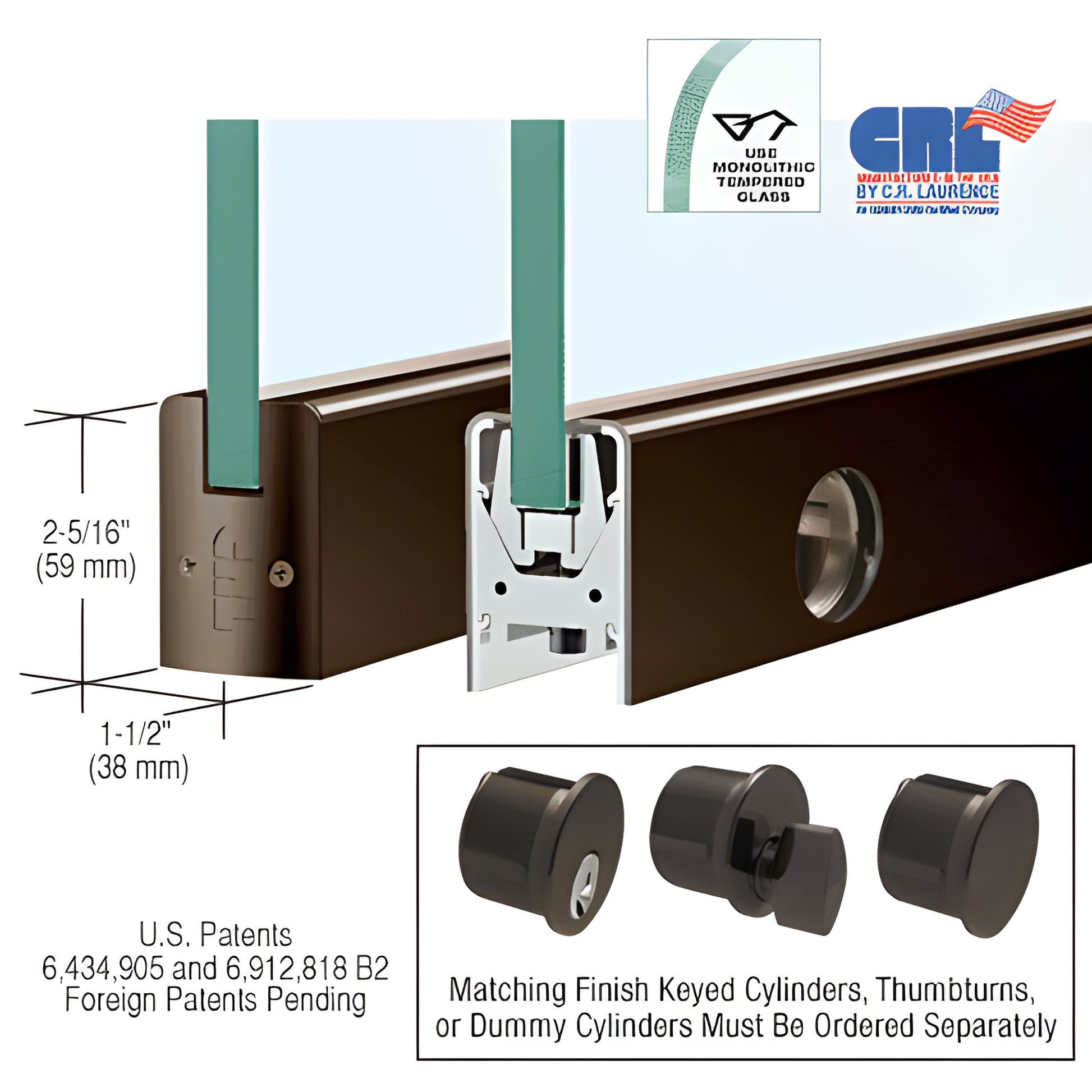

CRL 35-3/4" Black Bronze 1/2" Glass Low-Profile Door Rail with Lock

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

CRL Low Profile Door Rail — compact and ready-to-install. This low profile door rail measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and includes End Caps, installation instructions, and adjustment wrenches. The rail incorporates the patented Wedge-Lock® Glass Securing System for secure, reliable attachment and the industry’s fastest installation times for door rails.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system provides quick installation — experienced installers can prepare a door in under ten minutes. Rails arrive completely fabricated with End Caps installed; after mounting the rail, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The adjustable door alignment system allows 1/8" (3 mm) in/out adjustment without removing the door. This adjustment is standard on both top and bottom rails.

To access adjustments after installation, remove the End Cap to reveal three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile adjustable slide permits pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), allowing fabrication for vertically out-of-square openings.

Key differentiators and features:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing — resists shifting and long-term loss of adjustment
• Internal components remain in place during installation (no removal required)
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block (arms and pivots sold separately)

CRL Wedge-Lock® Door Rails are offered in standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:

• All door rails include the standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
• Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumb
