CRL 1/2 in Glass Square Door Rail, Black Bronze Anodized, Lockable

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Low Profile Rails are Only 2-5/16" (59 mm) Tall
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available Without Locks Only
• Matching Sidelite Rails Available

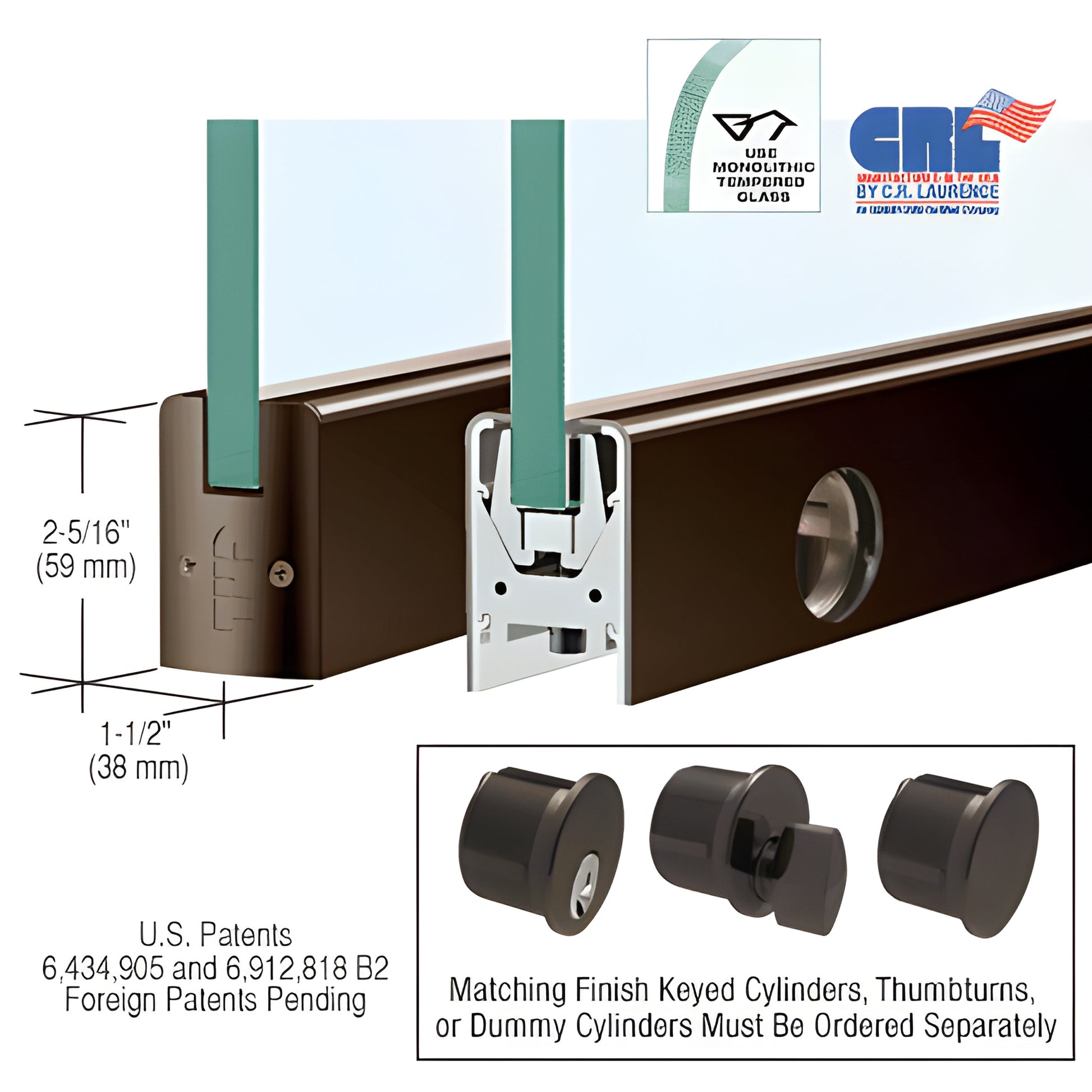

Our CRL Low Profile Door Rail (SKU: DR2SDU12CL) is engineered for tempered, monolithic glass and measures only 2-5/16" (59 mm) high by 1-1/2" (38 mm) wide. It features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1) for fast, secure attachment — ideal for low profile door rail installations on glass doors.

NOTE: Actual Product Height: 2-5/16” (59 mm)

The Wedge-Lock® system delivers the fastest installation time of any door rail system in the industry; experienced installers can prepare a door for installation in under ten minutes. Rails ship ready-to-install with End Caps, installation instructions, and adjustment wrenches. After mounting the rail, simply attach the door arm or pivot (not included) to the pre-assembled adjustable door alignment slide. The adjustable slide on both top and bottom rails permits ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door—useful for vertically out-of-square openings.

To adjust after installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the slide, and the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide lets pivots with slotted grooves be positioned other than the American Standard setback of 2-3/4" (69.8 mm).

Other product highlights and long-tail benefits:

• Models accept 3/8" to 3/4" (10 or 19 mm) glass—suitable for a range of tempered glass door applications.
• Rigid single-component housing resists shifting and maintains long-term alignment (not made of two halves).
• No internal component removal required before installation—speeds job completion.
• Durable glass securing pads designed for longevity in extreme environments.
• Built-in Jamb Alignment Block standard; arms and pivots must be ordered separately to meet job requirements.

Rails are available in several standard architectural finishes; custom finishes and widths can be quoted. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering information:

• All Door Rails are supplied with the standard Kwik-Adjust
