CRL Black Bronze Low-Profile Tapered Door Rail for 1/2" Glass w/ Lock

• Custom length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails are only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes — custom finishes available
• Available without locks
• Matching sidelite rails available

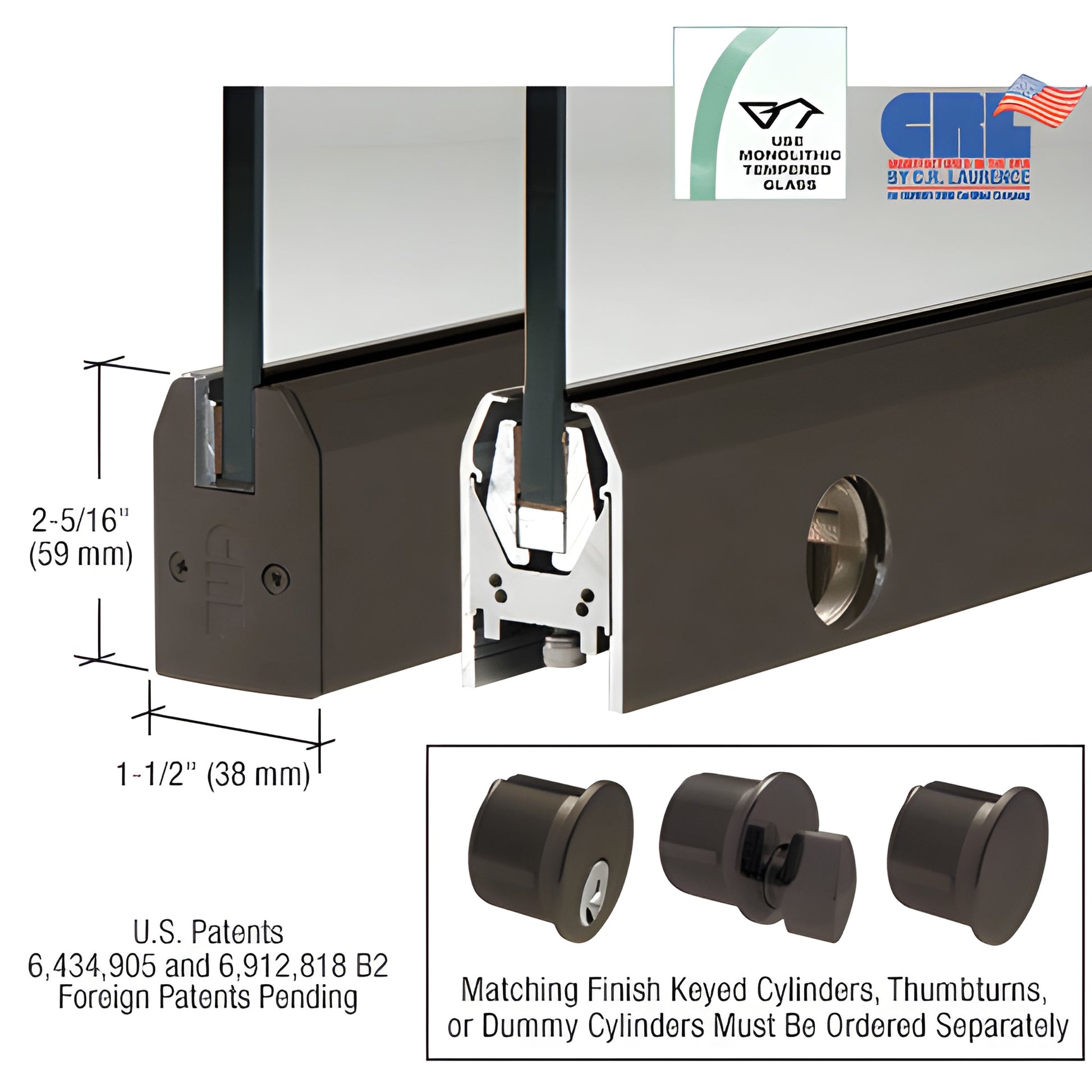

Our CRL Low Profile Door Rail (SKU DR2TDU12CL) measures only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails ship ready-to-install with end caps, installation instructions, and adjustment wrenches.

NOTE: Actual product height: 2-5/16” (59 mm).

The Wedge-Lock® system secures 1/2" (12 mm) tempered glass quickly and reliably, offering some of the fastest installation times in the industry. Experienced installers can prepare a door for installation in under ten minutes. Rails arrive fully fabricated with the adjustable door alignment slide already assembled; only the door arm or pivot (not included) must be attached after rail installation.

The built-in Adjustable Door Alignment System allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door (standard on both top and bottom rails). After installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts provide the 1/8" (3 mm) in/out adjustment. The low-profile slide accommodates pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Other key advantages: available models accept 3/8" to 3/4" (10–19 mm) glass; a rigid single-component housing that resists shifting over time; internal components remain assembled during installation; and durable glass-securing pads perform in extreme environments.

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails come in several standard finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.
