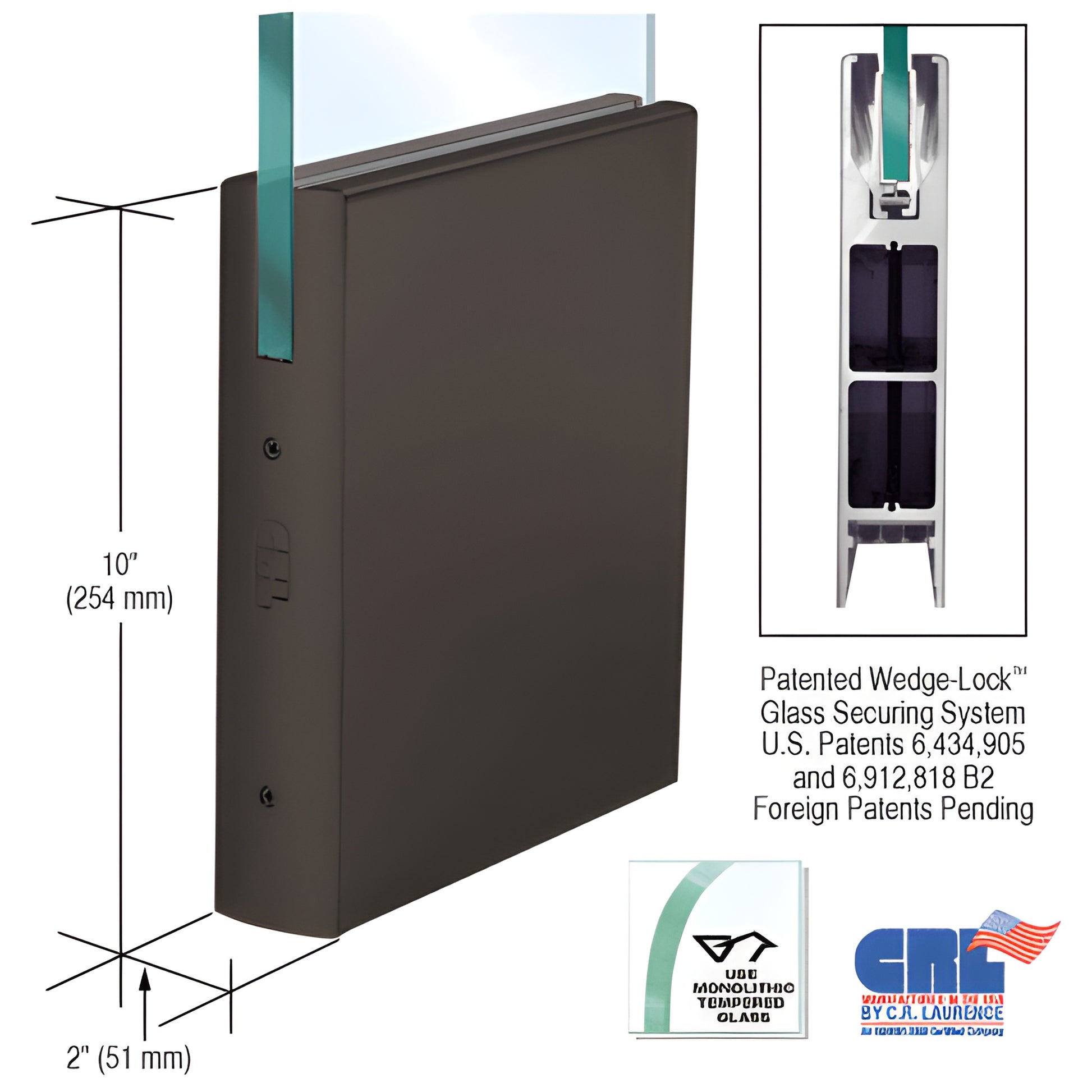

CRL Black Bronze Anodized 10 in Square Glass Door Rail 1/2 No Lock

• Custom length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian and European patents)
• Models to fit from 1/2" to 3/4" (12 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1) to secure monolithic tempered glass in commercial door applications. The system clamps the glass from the bottom using two aluminum glass-retaining extrusions and a flat stainless steel bar tightened with socket head cap bolts. As the bar is pulled down, the angled extrusions wedge together in the door rail groove, compressing the retention gasket to create extremely high holding force (over 900 lbs. in the 9" / 228.6 mm corner rail), making it suitable for heavy-duty glass door rails and frameless glass entrances.

NOTE: Actual product height: 10" (254 mm)

The Wedge-Lock® system delivers fast installation and reliable performance for glass door rails. Rails arrive fully fabricated and ready-to-install with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. The adjustable door alignment system provides 1/8" (3 mm) in/out adjustment on both top and bottom rails without removing the door — ideal for on-site alignment and vertically out-of-square openings.

To fine-tune after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide allows pivots with slotted grooves to be positioned other than the American Standard setback (2-3/4" / 69.8 mm).

Additional benefits and specifications:

• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing resists shifting and maintains adjustment over time
• No internal component removal required before installation
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block standard; arms and pivots must be ordered separately

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are available from CRL Technical Sales via <
