CRL Black Bronze Anodized 10" x 240" Length Square Sidelite Rail for 5/8" or 3/4" Glass
CRL Black Bronze Anodized 10" x 240" Length Square Sidelite Rail for 5/8" or 3/4" Glass
Regular price
$4,072.10 CAD
Regular price
Sale price
$4,072.10 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR10SDU34240
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Black Bronze Anodized |
| Floor Mount Saddle Included FMS | 3DU |
| Glazing Thickness | 3/4 in. (19 mm) |
| Length 240 in. | (6096 mm) |
| Material | Aluminum |
| Nominal Height 10 in. | (254 mm) |
| Profile | Square |
| Width 2-1/4 in. | (57 mm) |
Overview

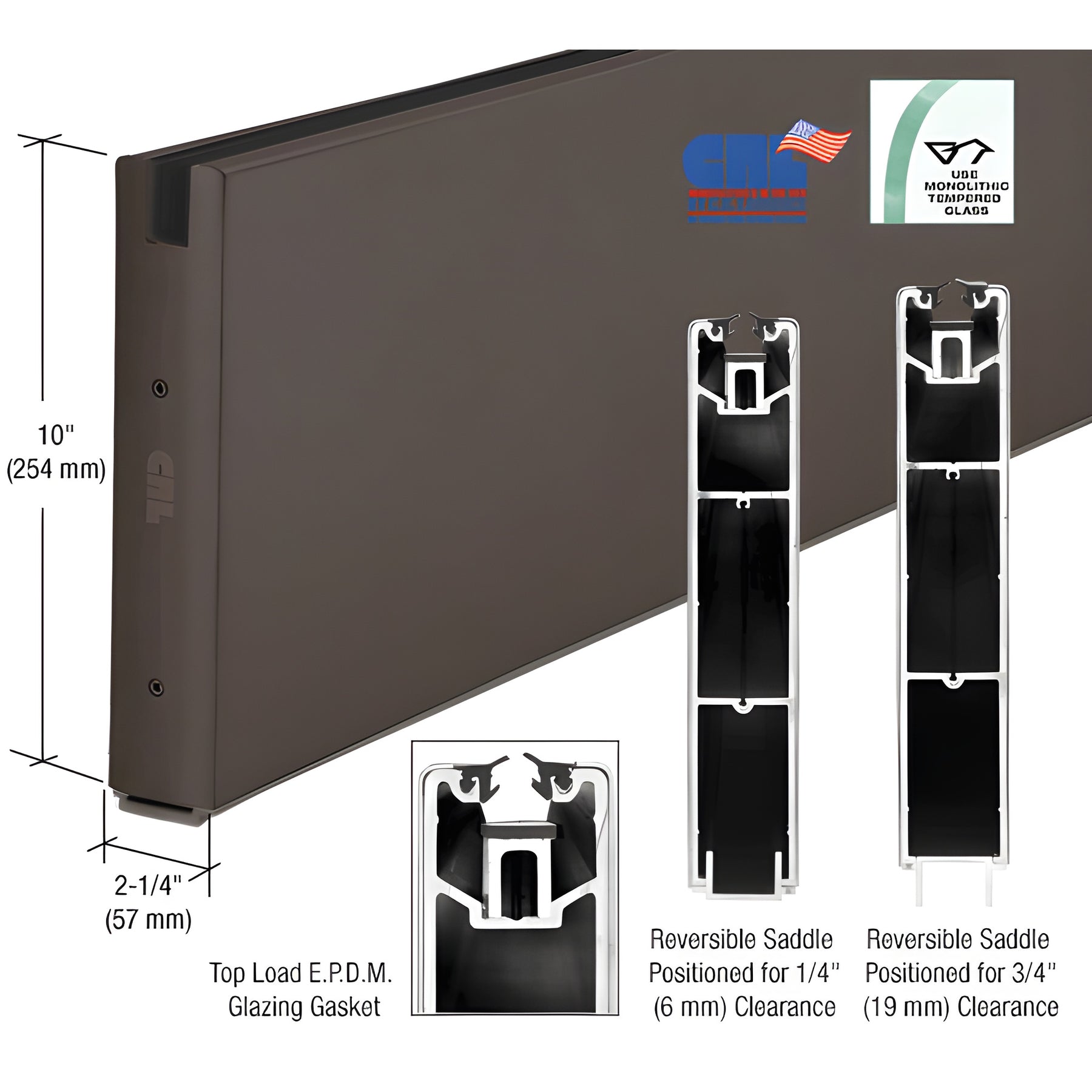

The CRL 10" (254 mm) Square Sidelite Rail is a versatile solution for securing fixed glass panels in office and storefront applications.
Designed to match our Door Rails, these Reversible Extruded Saddles accommodate 1/4" or 3/4" (6 or 19 mm) door clearances, ensuring a seamless and even sightline.
Ready-to-ship models are available from CRL inventory, and the rails utilize monolithic tempered glass for durability.
Installation is straightforward with the 'lift and drop' method, featuring a Top Load EPDM Roll-in Glazing Gasket to eliminate the need for silicone sealant.
Custom lengths and finishes are available, with additional accessories such as SREC10S Series End Caps and UCSB4 Setting Blocks sold separately.
For more details, contact our Technical Sales team.
Designed to match our Door Rails, these Reversible Extruded Saddles accommodate 1/4" or 3/4" (6 or 19 mm) door clearances, ensuring a seamless and even sightline.
Ready-to-ship models are available from CRL inventory, and the rails utilize monolithic tempered glass for durability.
Installation is straightforward with the 'lift and drop' method, featuring a Top Load EPDM Roll-in Glazing Gasket to eliminate the need for silicone sealant.
Custom lengths and finishes are available, with additional accessories such as SREC10S Series End Caps and UCSB4 Setting Blocks sold separately.
For more details, contact our Technical Sales team.
