CRL Black Bronze Anodized 120" U-Channel with Roll-In Top Load Gasket
CRL Black Bronze Anodized 120" U-Channel with Roll-In Top Load Gasket
Regular price
$292.41 CAD
Regular price
Sale price
$292.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UCDU3812SL
Shipping Weight: 8.35 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 8.35 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

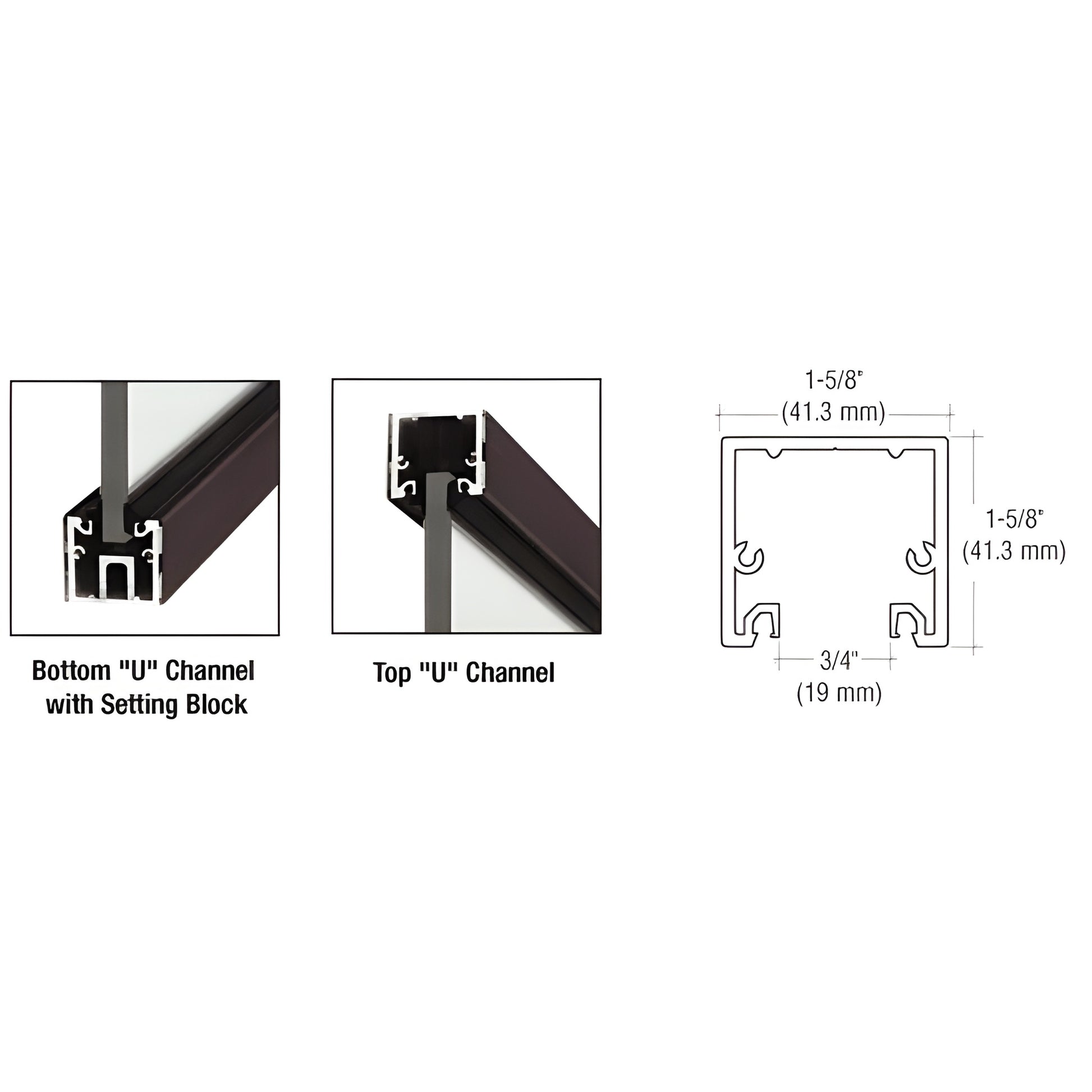

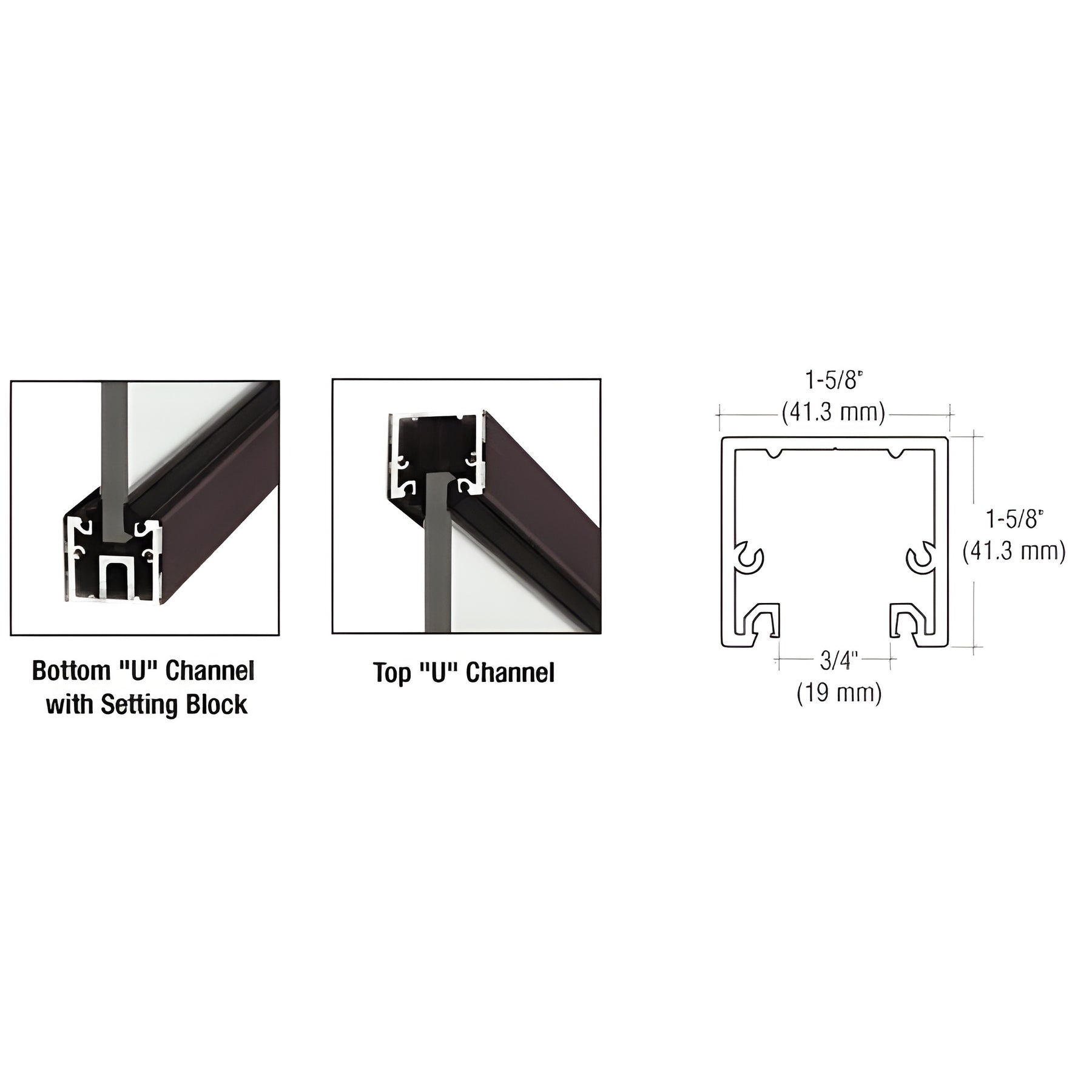

| Finish/Color | Black Bronze Anodized |
| Glazing Thickness | 3/8 in. (10 mm) |
| Height 1-5/8 in. | (41 mm) |
| Length 120 in. | (3048 mm) |
| Width 1-5/8 in. | (41 mm) |
Overview
The CRL Regular U-Channel with Top Load Roll-In Glazing Gasket is expertly designed for use with 3/8" and 1/2" (10 and 12 mm) glass, making it perfect for ceiling or floor installations.
Ideal for pairing with our Patch Hardware or Header for Overhead Door Closers, this product offers versatility with options for surface or recessed mounting.
Choose from 7 standard architectural finishes, or opt for custom finishes and powder painting to meet your specific needs.
Please note, the Roll-In Glazing Gasket is included for 1/2" glass but must be ordered separately for 3/8" glass, and setting blocks (UCSB4) are sold separately.
CRL advises against cutting due to the metal gauge, and additional charges may apply if cuts are necessary.
Ideal for pairing with our Patch Hardware or Header for Overhead Door Closers, this product offers versatility with options for surface or recessed mounting.
Choose from 7 standard architectural finishes, or opt for custom finishes and powder painting to meet your specific needs.
Please note, the Roll-In Glazing Gasket is included for 1/2" glass but must be ordered separately for 3/8" glass, and setting blocks (UCSB4) are sold separately.
CRL advises against cutting due to the metal gauge, and additional charges may apply if cuts are necessary.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
