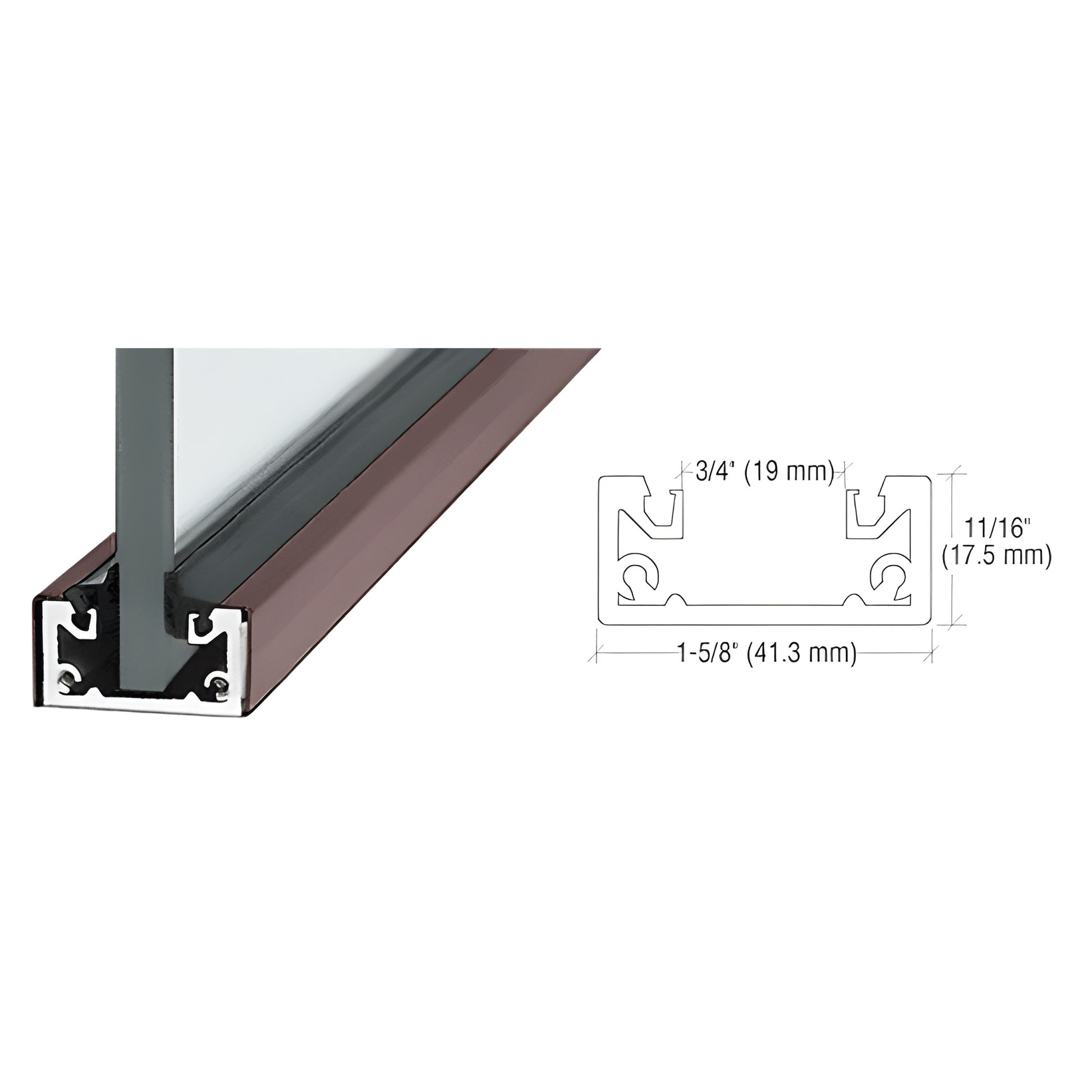

CRL 240" (20 ft) Black Bronze Anodized Shallow U-Channel for Glass
Item# SCDU3812240
Shipping Weight: 7.98 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.98 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Height
11/16 in. (17 mm)
Length
240 in. (6096 mm)
Width
1-5/8 in. (41 mm)
- Top Loading Gasket
- Ideal for recessed "all-glass" installations
- Use monolithic tempered glass
- Nine standard architectural finishes
- Custom finishes and powder painting available
- Custom lengths available
CRL Shallow U-Channel (SKU: SCDU3812240) can be used for multiple applications—sash channel above a header, wall or floor installations where drywall or finished flooring conceals the channel—to create a true "all-glass" aesthetic. Stock lengths: 120" (3.05 m) and 240" (6.10 m).
NOTE: Roll-in glazing gasket is included for 1/2" (12 mm) glass. For 3/8" (10 mm) glass, order the Roll-In Glazing Gasket separately.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before ordering. Product images are of the actual product or a close representation; colors may vary by monitor and video card.
Available now—contact CRL for pricing, custom finishes, or to place an order.
