CRL Black Bronze Anodized 240" x 6" Square Sidelite Rail
CRL Black Bronze Anodized 240" x 6" Square Sidelite Rail
Regular price
$2,936.79 CAD
Regular price
Sale price
$2,936.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR6SDU3812240
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Black Bronze Anodized |
| Floor Mount Saddle Included FMS | 2DU |
| Glazing Thickness | 3/8 in. (10 mm) |
| Height 6 in. | (152 mm) |
| Width 2-1/8 in. | (54 mm) |
Overview

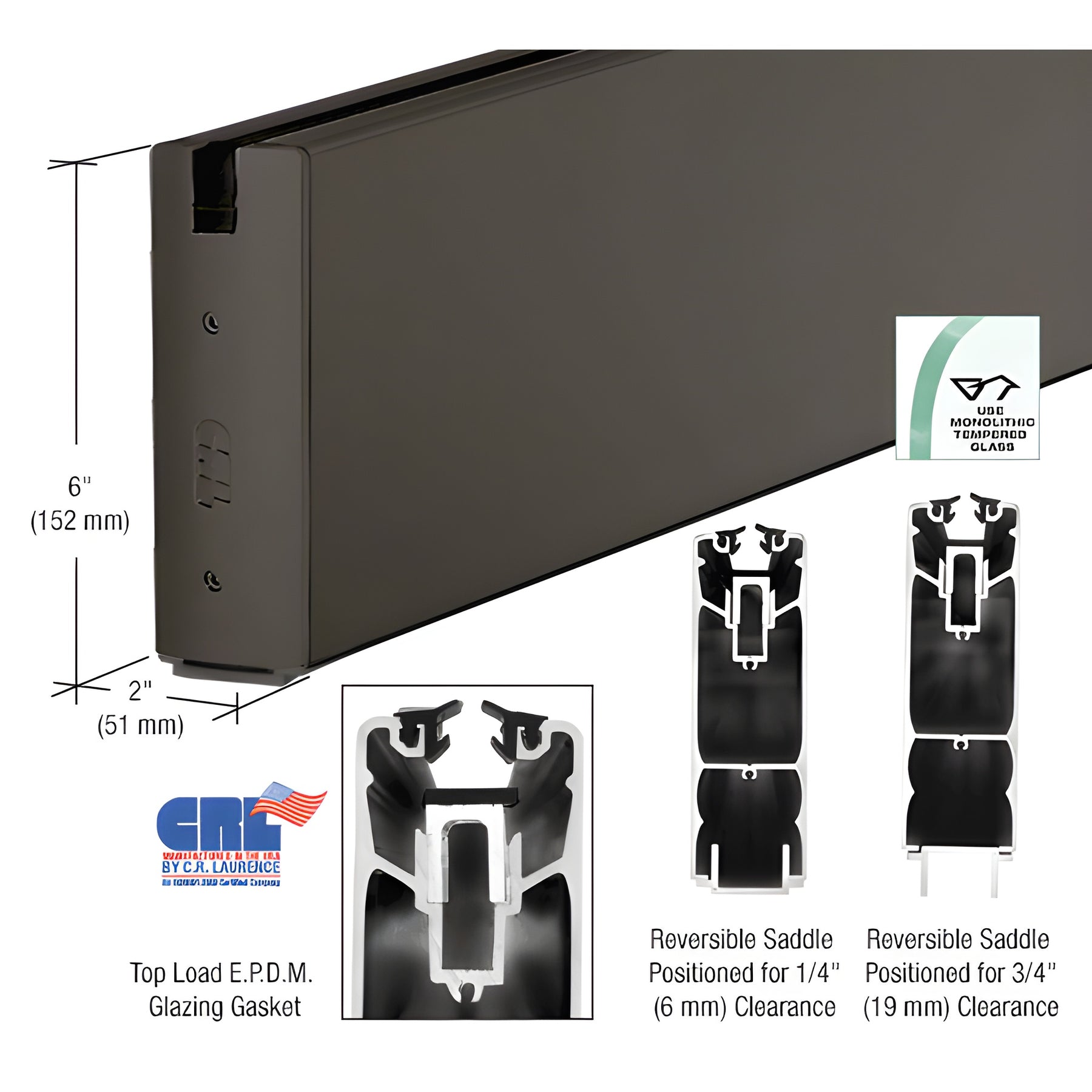

Discover the CRL 6" (152 mm) Square Sidelite Rail, a versatile solution for office and storefront glass panel security.
With reversible extruded saddles, this product adapts to both 1/4" or 3/4" (6 or 19 mm) door clearances, ensuring an even sightline when paired with our matching door rails.
It's designed for easy installation using the 'lift and drop' method with 4" (102 mm) aluminum and neoprene setting blocks, and secures glass with a top-load EPDM roll-in glazing gasket.
Available in standard lengths of 120" (3.05 m) and select finishes in 240" (6.1 m), customizations are also possible.
Note that end caps and certain gaskets are sold separately, and special cutting tools are required for stainless steel cladded aluminum to maintain the finish.
Contact CRL Customer Service for detailed shipping weights and additional information.
With reversible extruded saddles, this product adapts to both 1/4" or 3/4" (6 or 19 mm) door clearances, ensuring an even sightline when paired with our matching door rails.
It's designed for easy installation using the 'lift and drop' method with 4" (102 mm) aluminum and neoprene setting blocks, and secures glass with a top-load EPDM roll-in glazing gasket.
Available in standard lengths of 120" (3.05 m) and select finishes in 240" (6.1 m), customizations are also possible.
Note that end caps and certain gaskets are sold separately, and special cutting tools are required for stainless steel cladded aluminum to maintain the finish.
Contact CRL Customer Service for detailed shipping weights and additional information.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
