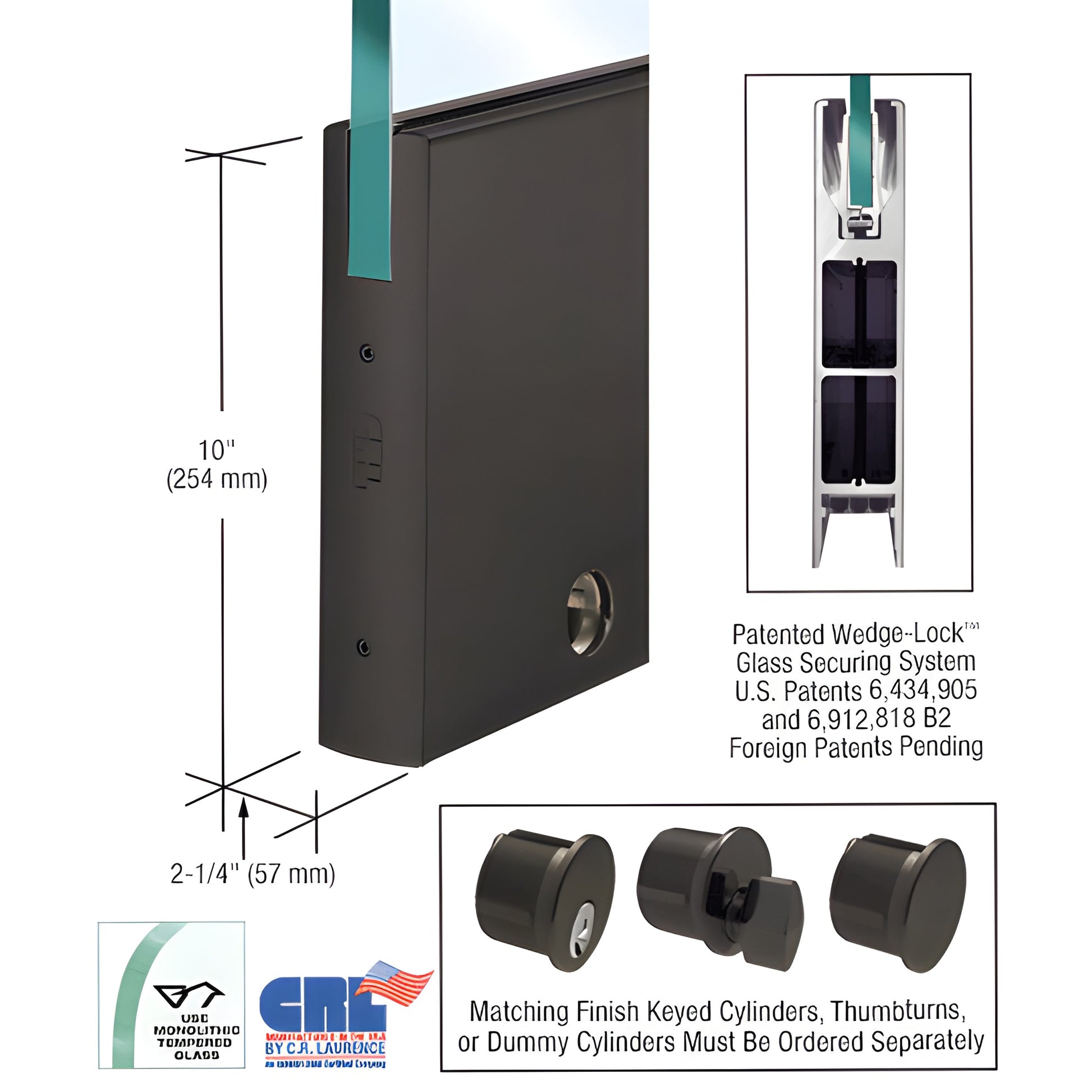

CRL Black Bronze Anodized 10in Square Glass Door Rail w/ Lock

• Custom Length for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR10SDU34CL) features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). Designed for tempered monolithic glass doors, the system secures glass with two aluminum retaining extrusions and a flat stainless steel pressure bar that pulls into angled grooves to create exceptional retention force—more than 900 lbs. in a 9" (228.6 mm) corner rail—delivering reliable strength for commercial glass doors and storefront entrances.

NOTE: Actual Product Height: 10” (254 mm)

Key benefits and differentiators:

• Fast installation: door preparation in under 10 minutes for experienced installers—reduces labor on glass door projects
• Adjustable Door Alignment Slide: built-in adjustable alignment allows ±1/8" (3 mm) adjustment top and bottom without removing the door for precise fits in out-of-square openings
• Rigid, single-component housing: resists shifting or loss of adjustment over time (not two-piece construction)
• Internal components remain in place during installation—no disassembly required
• Durable glass securing pads engineered for longevity in extreme environments
• Available with pre-installed lock mechanism; keyed cylinders and thumbturns ordered separately

CRL Wedge-Lock® Door Rails ship completely fabricated and ready-to-install with End Caps installed. After rail installation, attach the door arm or pivot (not included) to the adjustable slide already assembled in the rail. To fine-tune alignment after installation, remove the End Cap to access three socket head cap bolts: center secures the slide, outers adjust ±1/8" (3 mm). The low-profile slide allows pivot placement other than the American Standard setback of 2-3/4" (69.8 mm).

Other product notes:

• Models accept 3/8" to 3/4" (10 to 19 mm) glass
• All rails include the built-in Jamb Alignment Block; arms and pivots must be ordered separately
• Standard Kwik-Adjust™ Pivot Alignment System included; closer arms and floor/overhead pivots sold separately
