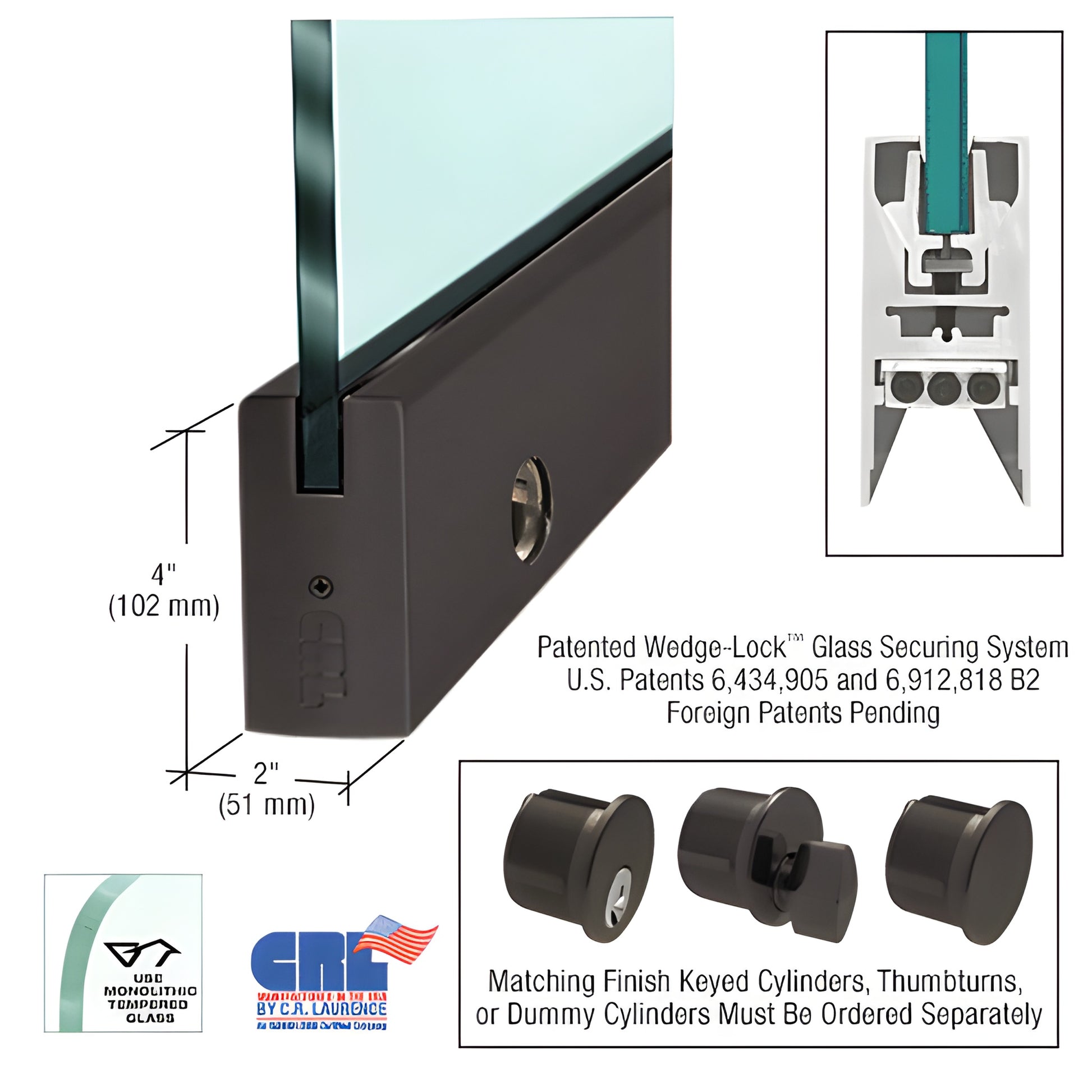

CRL Black Bronze 4" Square Door Rail w/ Lock for 3/8" Glass 35-3/4"

• 35-3/4" (908 mm) Length for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR4SDU38SL

Our CRL Wedge-Lock® Door Rail System features the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This commercial glass door rail for 3/8" glass secures the glass by applying downward pressure via two aluminum retaining extrusions and a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, angled extrusions engage an angled groove in the rail to clamp the glass—the 9" (228.6 mm) corner rail develops over 900 lbs. of clamping force.

NOTE: Actual Product Height: 4-1/16" (103 mm)

Key differentiators: fastest installation time of any door rail offered to the industry; pre-fabricated rails ship ready-to-install with end caps; adjustable door alignment slide (±1/8" / 3.2 mm) standard top and bottom for easy in-field alignment; rigid single-component housing resists shift and long-term loss of adjustment; internal components remain in place during installation; durable glass securing pads for extreme environments.

Installation is quick—experienced installers can prepare a door in under ten minutes. After mounting the rail, attach the door arm or pivot (not included) to the assembled adjustable alignment slide. To fine-tune alignment after hanging, remove the end cap to access the three socket head cap bolts: center bolt locks the slide, outer bolts adjust the slide in or out 1/8" (3.2 mm). The low-profile slide lets pivots with slotted grooves be positioned off the American Standard Setback (2-3/4" / 69.8 mm) for vertically out-of-square openings.

Available options and ordering notes:

• Accepts 3/8" to 3/4" (10–19 mm) glass
• Comes standard with Kwik-Adjust™ Pivot Alignment System—closer arms and pivots ordered separately
• Models with locks include the lock mechanism; keyed cylinders or thumbturns ordered separately
• End caps included in stock rail lengths; specify overall rail length when ordering custom lengths
