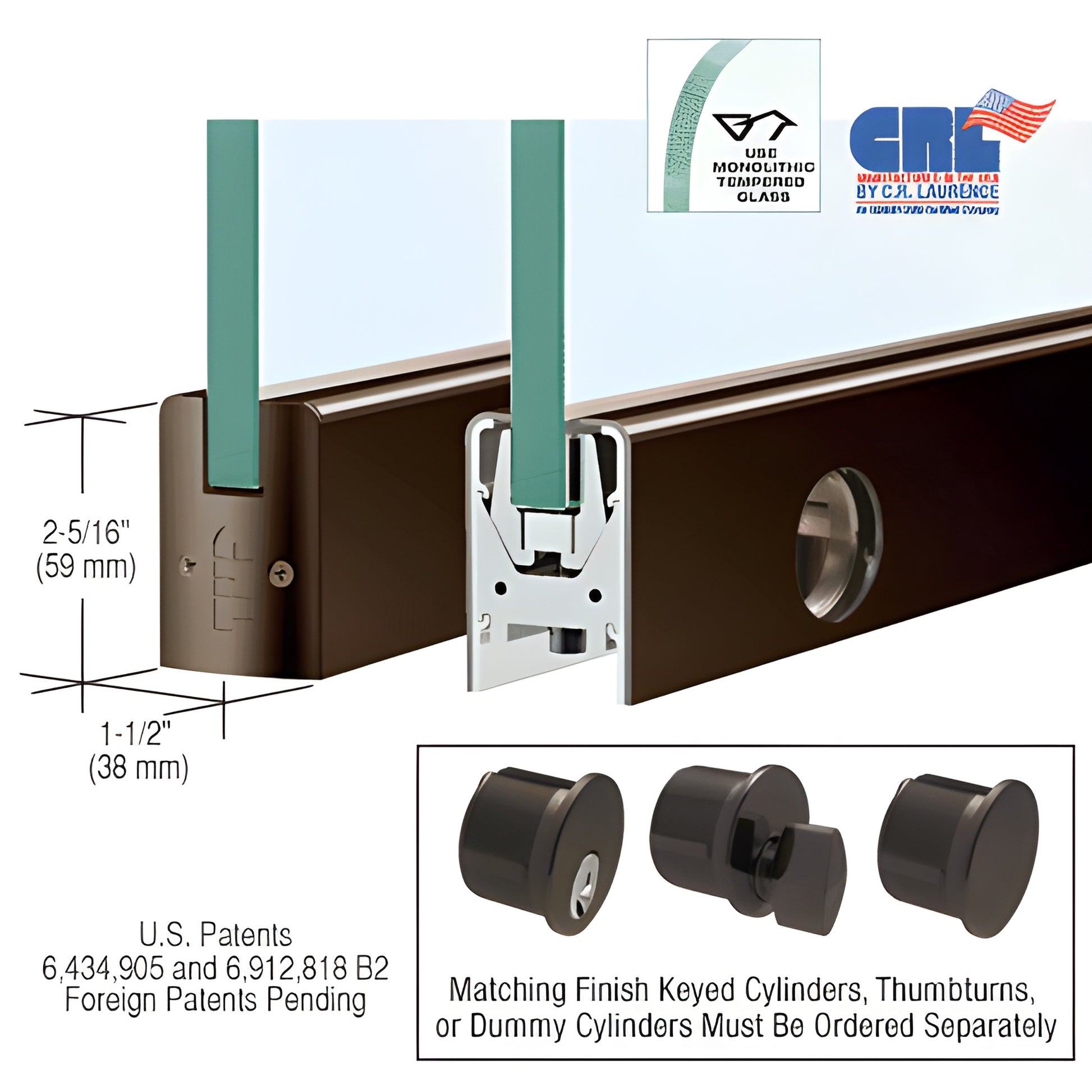

CRL Black Bronze 3/8in Glass Low-Profile Door Rail w/ Lock 35-3/4in

• 35-3/4" (908 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (fastest installation door rail)
• Low profile rails: 2-5/16" (59 mm) tall, 1-1/2" (38 mm) wide
• Available in several stock architectural finishes; custom finishes available
• Available without locks only; matching sidelite rails available

CRL Low Profile Door Rail (SKU: DR2SDU38SL) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and includes the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails ship complete with End Caps, installation instructions, and adjustment wrenches—ready-to-install for commercial glass doors and storefronts.

Key differentiators

• Wedge-Lock® system — secure glass attachment plus the industry’s fastest installation for door rails (experienced installers can prepare a door in under 10 minutes)
• Rigid single-component housing — resists shift and maintains alignment over time
• Adjustable Door Alignment System — ±1/8" (3 mm) adjustment toward/away from the jamb on both top and bottom rails without removing the door
• Durable glass securing pads designed for longevity in extreme environments
• Models accept 3/8" to 3/4" (10 to 19 mm) glass components (see model selection)

How it installs & adjusts
Rails come fabricated with End Caps installed. After installing the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. To fine-tune alignment after installation, remove the End Cap to reveal three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide ±1/8" (3 mm). The low-profile slide lets pivots be positioned other than the American Standard setback of 2-3/4" (69.8 mm), allowing fabrication for vertically out-of-square openings.

Notes & compatibility

• All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms and pivots are ordered separately to meet specific job requirements
• Pivot inserts 1NT701, 1NT703, and 1NT704 sold separately for use with overhead or floor closers
• Models with locks ship with the latch mechanism installed; matching keyed cylinders or thumbturns are ordered separately
• End Caps included in stock lengths;
