CRL Black Bronze 3/8" Low-Profile Shower Door Rail w/ Lock 35.75"

• 35-3/4" (908 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

SKU: DR2TDU38SL

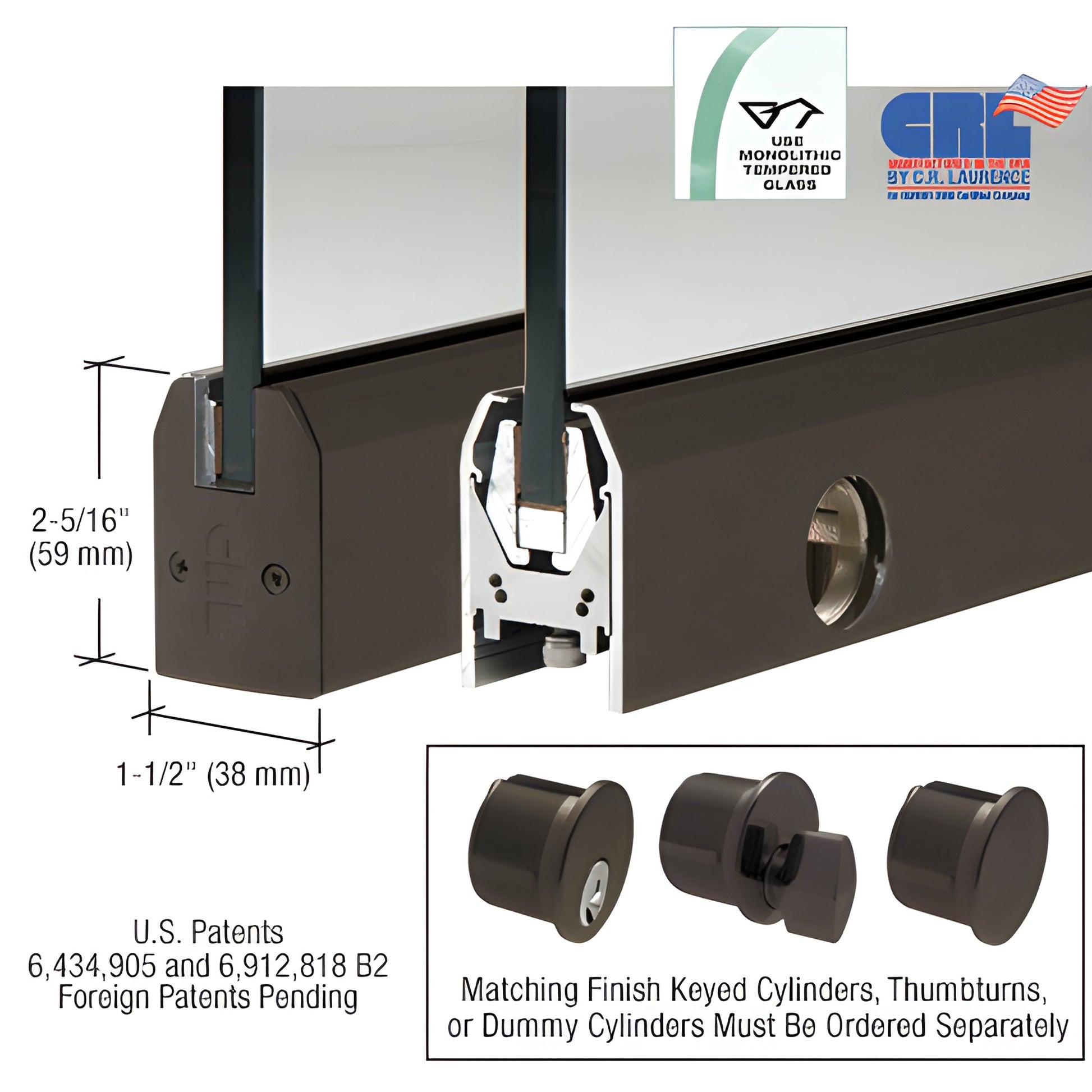

CRL Low Profile Door Rail measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails come complete with End Caps, installation instructions, and adjustment wrenches for quick, ready-to-install performance.

NOTE: Actual product height: 2-5/16" (59 mm)

The Wedge-Lock® system delivers fast installations and secure glass retention — experienced installers can prepare a door in less than ten minutes. Rails ship fully fabricated with End Caps installed; after mounting the rail, attach the door arm or pivot (not included) to the pre-assembled adjustable door alignment slide.

The adjustable door alignment slide allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door. Adjustment is standard on both top and bottom rails. To adjust after installation, remove the End Cap to access three socket head cap bolts: the center bolt locks the slide; the outer bolts provide the 1/8" in/out adjustment. The low-profile slide also permits pivot placement other than the American Standard setback to accommodate vertically out-of-square openings.

Key differentiators:

• Accepts 3/8" to 3/4" (10–19 mm) glass (models available)
• Rigid single-component housing — maintains alignment over time (not two halves)
• Internal components remain assembled for faster installation
• Durable glass-securing pads designed for longevity in extreme environments
• Built-in jamb alignment block — arms and pivots ordered separately to meet job requirements

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering information:

• All door rails include the standard Kwik-Adjust™ pivot alignment system; closer arms and floor or overhead pivots must be ordered separately.
• Models
