CRL 3/8" Black Bronze Tapered Glass Door Rail w/ Lock - Custom

• Custom length for 3/8" (10 mm) monolithic tempered glass
• Patented Wedge-Lock® glass securing system for fast, secure installation
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several standard architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

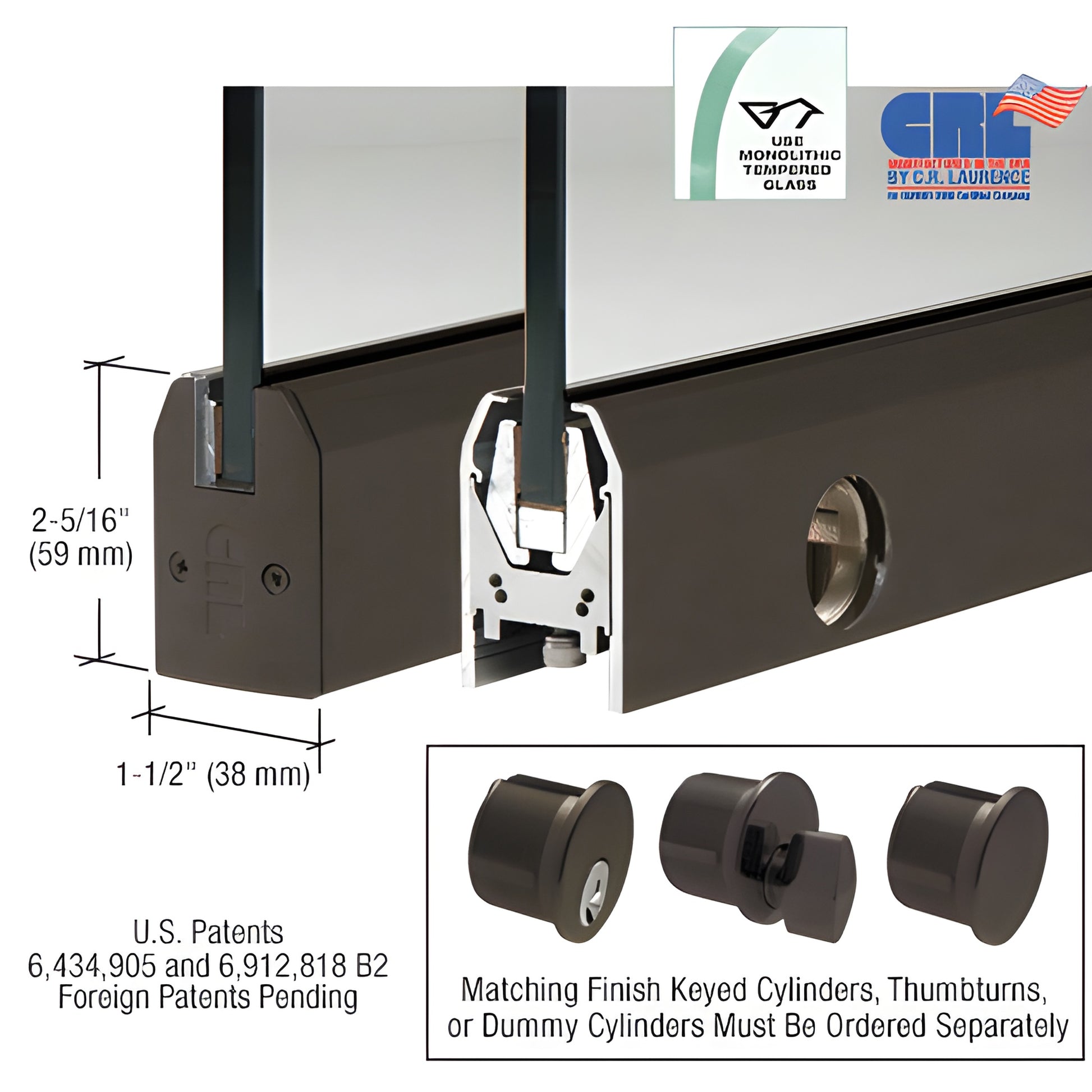

CRL Low Profile Door Rail — 2-5/16" (59 mm) H x 1-1/2" (38 mm) W — combines a compact low-profile design with the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Each rail ships ready-to-install with end caps, installation instructions, and adjustment wrenches.

NOTE: Actual product height: 2-5/16” (59 mm)

The Wedge-Lock® system provides a secure attachment for glass and the fastest installation time among door rail systems. Experienced installers can prepare a door for installation in under ten minutes. Rails come fully fabricated with the adjustable door alignment slide preassembled — simply attach the door arm or pivot (not included) to hang the door.

The adjustable door alignment slide allows ±1/8" (±3 mm) adjustment toward or away from the jamb without removing the door. Adjustment is accessed by removing the end cap to reveal three socket head cap bolts: center bolt secures the slide, outer bolts shift the slide in/out. The low-profile slide supports pivots moved from the American Standard setback (2-3/4" / 69.8 mm) and enables fabrication for vertically out-of-square openings.

Key features and long-tail capabilities:

• Accepts 3/8" to 3/4" (10–19 mm) glass models
• Rigid single-component housing resists shifting and long-term misalignment
• Internal components remain assembled during installation — no removal required
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block; arms and pivots ordered separately

Finish and ordering: standard finishes available; custom finishes and widths quoted on request. Rail specifications, templates, and hardware packages available from CRL Technical Sales via e-mail.

Ordering information:

• All door rails include the Kwik-Adjust™ pivot alignment system. Closer arms and floor/overhead pivots sold separately.
• Models with locks ship with the lock mechanism installed; keyed cylinders or thumbturns ordered separately.
• End caps included; specify door rail length (including end
