CRL Black Bronze 3/8" Anodized Tapered Glass Door Rail, No Lock, Custom

• Custom length for 3/8" (10 mm) monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System for fast, secure installation

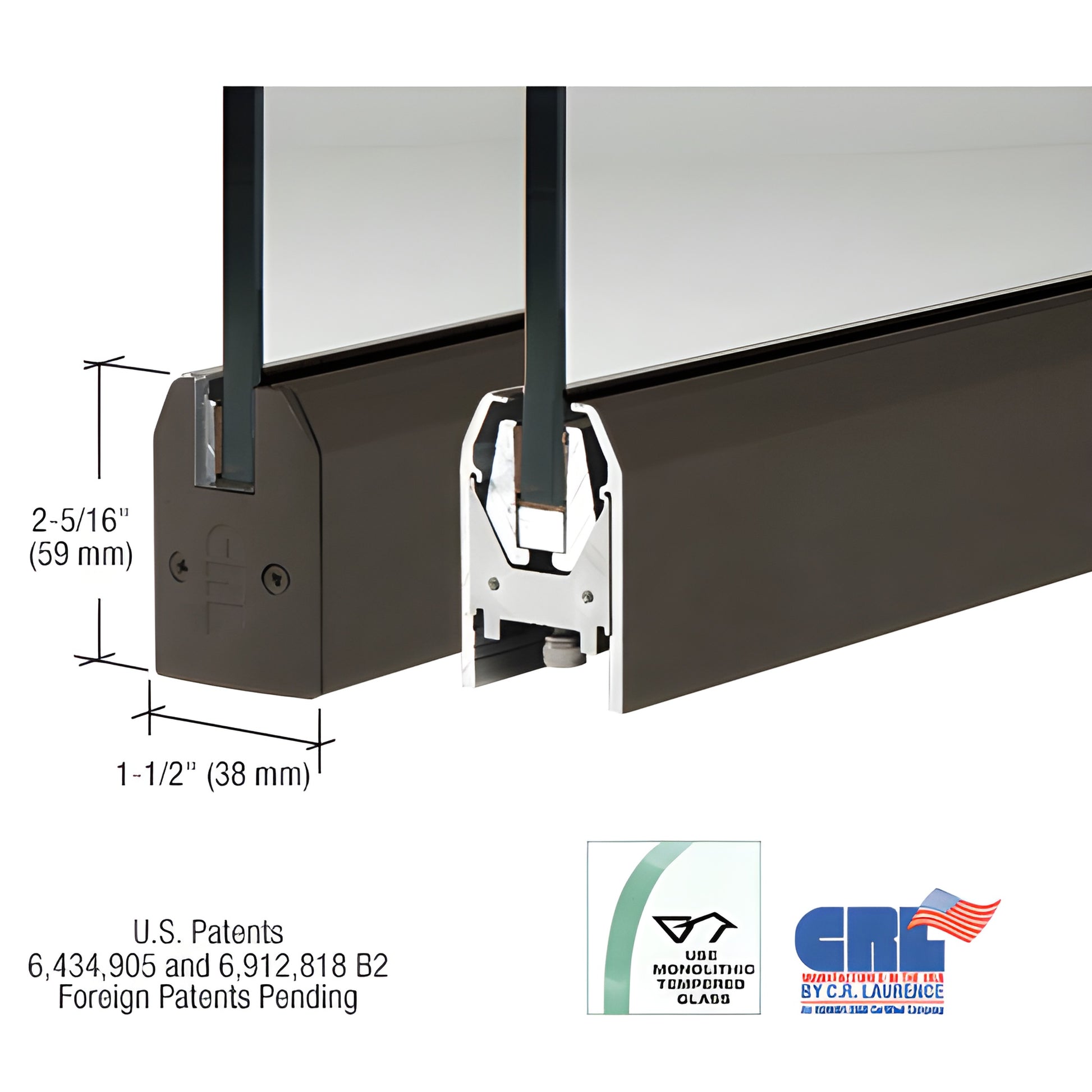

• Low profile rail: 2-5/16" (59 mm) tall x 1-1/2" (38 mm) wide
• Available in several stock architectural finishes — custom finishes available
• Available without locks; matching sidelite rails available

Our CRL Low Profile Door Rail (SKU: DR2TDU38C) is engineered for frameless commercial and architectural doors using 3/8" (10 mm) monolithic tempered glass. At only 2-5/16" (59 mm) tall and 1-1/2" (38 mm) wide, this low-profile door rail incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) for a secure hold and the industry’s fastest installation times.

Key differentiators:

• Fast installation: experienced installers can prepare a door in under ten minutes
• Ready-to-install: rails ship complete with End Caps, installation instructions, and adjustment wrenches
• Rigid single-component housing — resists shifting or loss of adjustment over time
• Adjustable Door Alignment System (standard top & bottom): ±1/8" (3–3.2 mm) adjustment without removing the door
• Glass securing pads designed for longevity in extreme environments
• Models available for 3/8" to 3/4" (10–19 mm) glass

How the adjustment works: After installation, remove the End Cap to access three socket head cap bolts. The center bolt secures the adjustable slide; the two outer bolts adjust the slide in or out up to 1/8" (3.2 mm). The low-profile slide allows pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Notes:

• All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block; arms and pivots are ordered separately
• Pivot inserts (1NT701, 1NT703, 1NT704) and closer arms/floor or overhead pivots are sold separately
• Models with locks are supplied with the lock mechanism installed; keyed cylinders or thumbturns must be ordered separately
• End Caps are included; specify overall door rail length (including End Caps) when ordering custom lengths
• Rail specifications, templates and hardware packages available from CRL Technical Sales:

  Specifications

  Engineering & Test Reports

  Door Rail and Sidelite Rail ASTM B221 Compliance Report 03-04-2008
