CRL Black Bronze Anodized 4" Tapered Sidelite Rail
CRL Black Bronze Anodized 4" Tapered Sidelite Rail
Regular price
$818.48 CAD
Regular price
Sale price
$818.48 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR4TDU34SL
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Black Bronze Anodized |
| Floor Mount Saddle Included FMS | 3DU |
| Glazing Thickness | 3/4 in. (19 mm) |
| Height 4 in. | (102 mm) |
| Width 2-1/8 in. | (54 mm) |
Overview

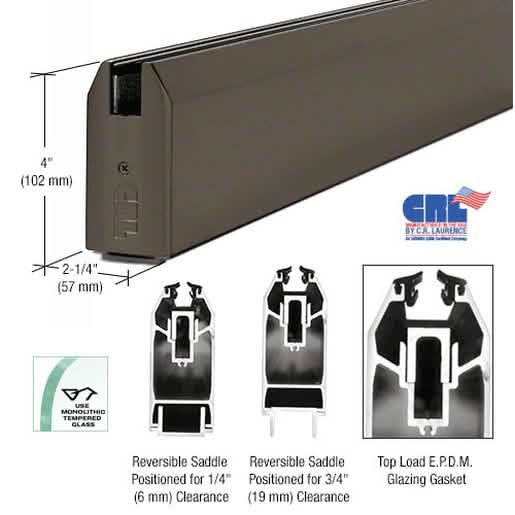

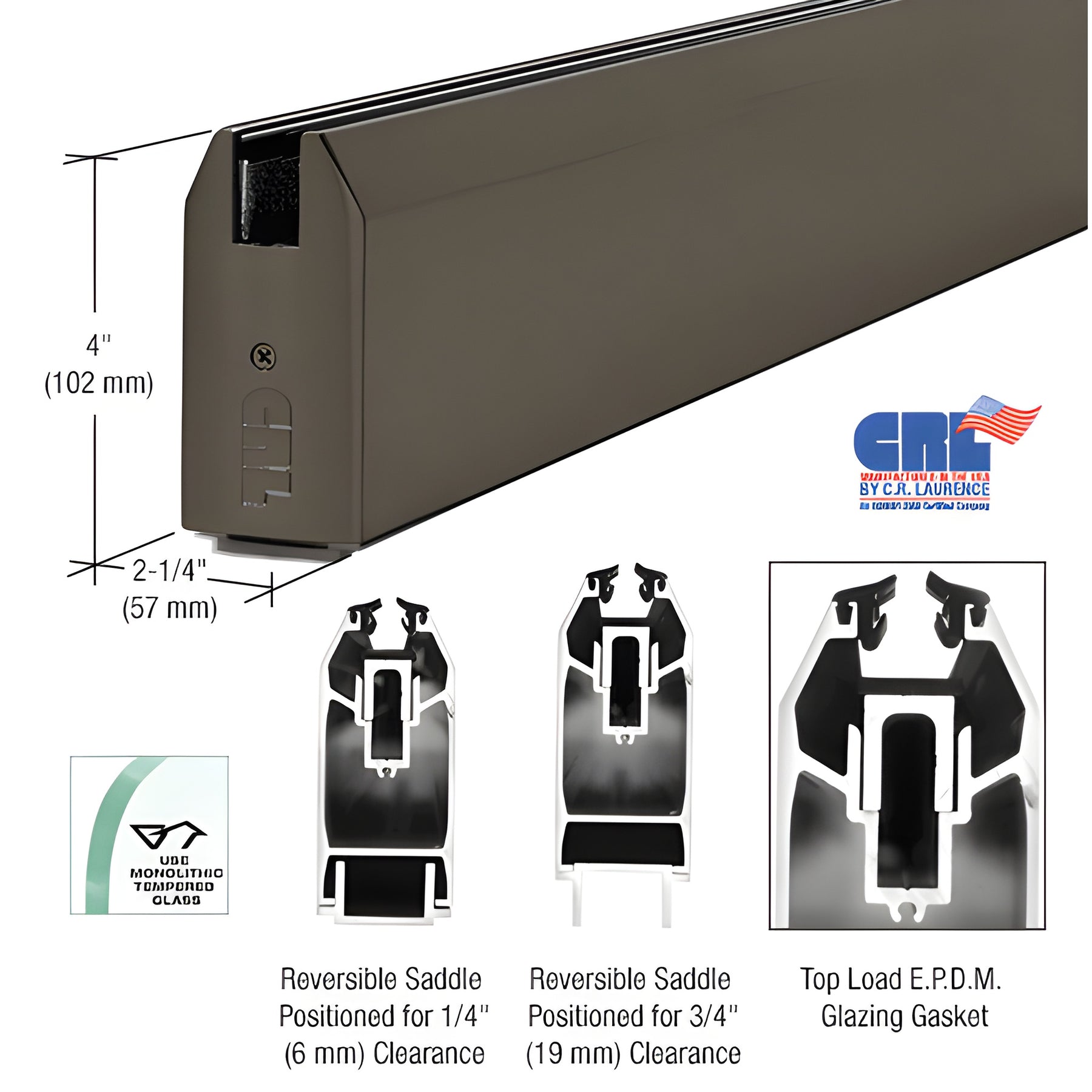

The CRL 4" (102 mm) Tapered Sidelite Rail is an ideal solution for securing fixed glass panels in office and storefront settings.
Designed to match CRL's Door Rails, these Sidelite Rails ensure a consistent and sleek appearance when used with complementary U-Channels.
The innovative 'lift and drop' glass installation method with Aluminum and Neoprene Setting Blocks simplifies the process, while the EPDM Roll-in Glazing Gasket eliminates messy silicone sealant applications.
Available in multiple finishes and lengths, including 120" and 240", these rails can accommodate both floor-mounted and threshold doors seamlessly with the Reversible Saddle.
For a complete installation, order the necessary end caps and setting blocks separately, and ensure proper cutting techniques to maintain the finish.
Designed to match CRL's Door Rails, these Sidelite Rails ensure a consistent and sleek appearance when used with complementary U-Channels.
The innovative 'lift and drop' glass installation method with Aluminum and Neoprene Setting Blocks simplifies the process, while the EPDM Roll-in Glazing Gasket eliminates messy silicone sealant applications.
Available in multiple finishes and lengths, including 120" and 240", these rails can accommodate both floor-mounted and threshold doors seamlessly with the Reversible Saddle.
For a complete installation, order the necessary end caps and setting blocks separately, and ensure proper cutting techniques to maintain the finish.
