CRL Black Bronze Anodized 6" x 120" Length Square Sidelite Rail
CRL Black Bronze Anodized 6" x 120" Length Square Sidelite Rail
Regular price
$1,586.45 CAD
Regular price
Sale price
$1,586.45 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR6SDU3812SL
Shipping Weight: 49.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 49.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Black Bronze Anodized |
| Floor Mount Saddle Included FMS | 2DU |
| Glazing Thickness | 3/8 in. (10 mm) |
| Height 6 in. | (152 mm) |
| Width 1-7/8 in. | (48 mm) |
Overview

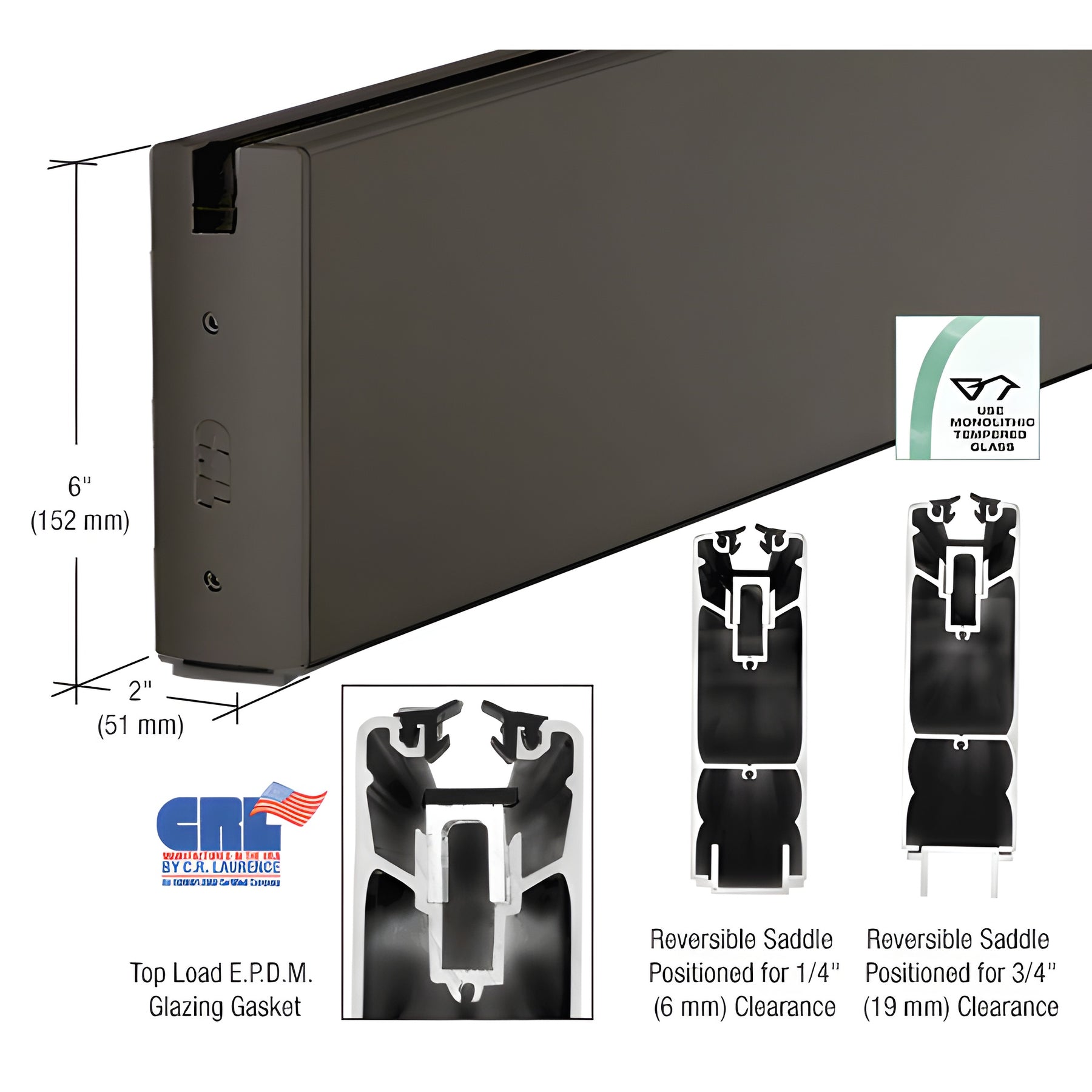

The CRL 6" (152 mm) Square Sidelite Rail is an ideal solution for office and storefront applications, providing secure support for fixed glass panels.
This product features a reversible extruded saddle that accommodates 1/4" or 3/4" (6 or 19 mm) door clearances, ensuring an even sightline with our door rails.
Designed for easy installation, the glass is set using the 'lift and drop' method with our 4" (102 mm) Aluminum and Neoprene Setting Blocks, and secured using a Top Load EPDM Roll-in Glazing Gasket.
Available in multiple lengths and finishes, these Sidelite Rails offer flexibility and customization to match your design needs.
For more information or to place an order, contact CRL Customer Service.
This product features a reversible extruded saddle that accommodates 1/4" or 3/4" (6 or 19 mm) door clearances, ensuring an even sightline with our door rails.
Designed for easy installation, the glass is set using the 'lift and drop' method with our 4" (102 mm) Aluminum and Neoprene Setting Blocks, and secured using a Top Load EPDM Roll-in Glazing Gasket.
Available in multiple lengths and finishes, these Sidelite Rails offer flexibility and customization to match your design needs.
For more information or to place an order, contact CRL Customer Service.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
