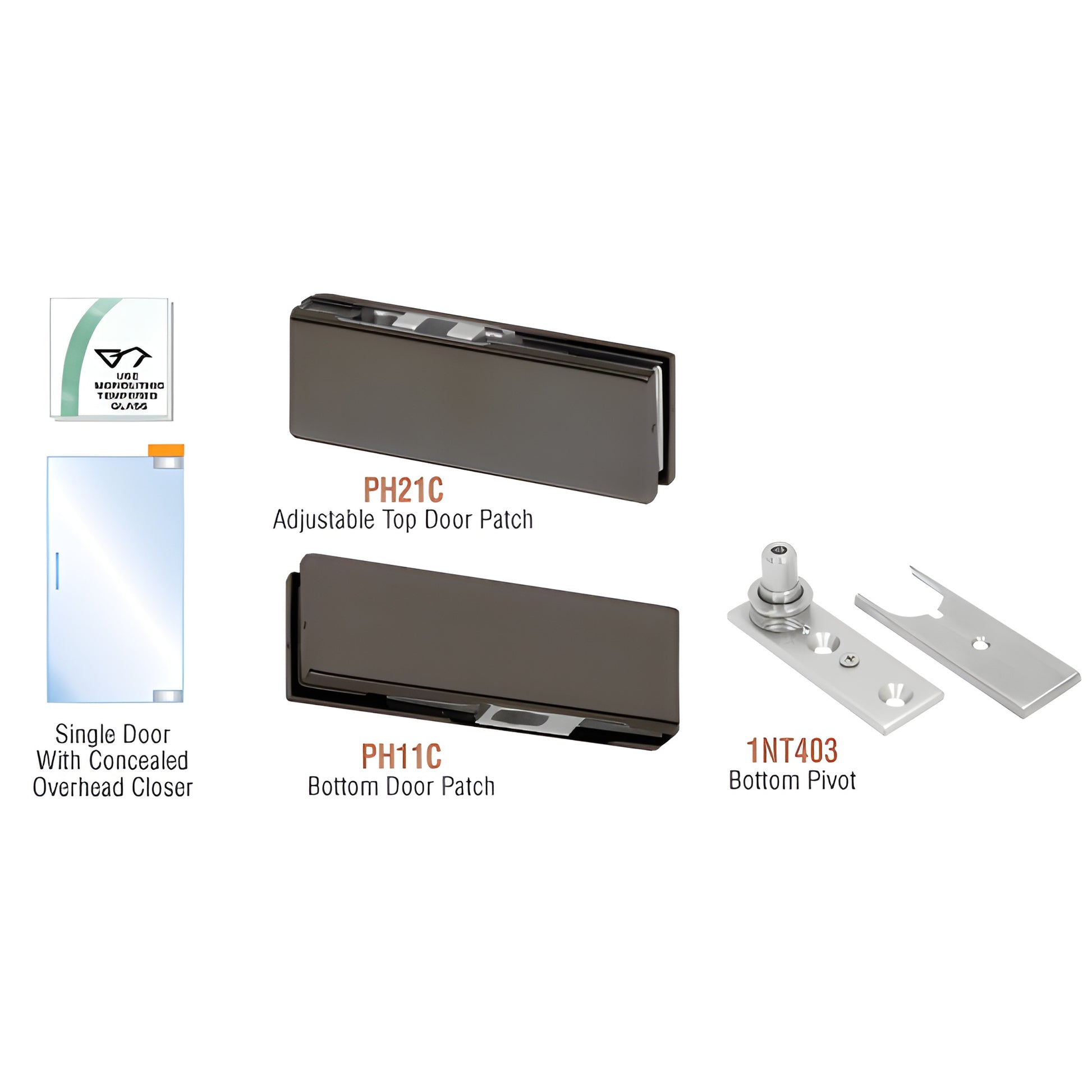

• CRL PHE2DU European patch door kit - black bronze adjustable top patch, bottom patch and bottom pivot for 3/8-1/2" glass
1 1

CRL

CRL Black Bronze Anodized Glass Patch Kit for Overhead Closer No Lock

CRL Black Bronze Anodized Glass Patch Kit for Overhead Closer No Lock

$276.98 CAD
$276.98 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE2DU
Shipping Weight: 3.35 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single
Door Type
A Style Glass Door
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • Adjustable Top Fitting
  • Five Architectural Finishes
  • Door Closer Not Included
CRL PHE2 European Patch Door Kits (SKU: PHE2DU) include all hardware to complete a single tempered glass door installation except the overhead door closer and the glass. Pivot setback: 2-9/16" (65 mm). Top Patch Fitting (PH21C) is adjustable after installation. Overhead door closer must be ordered separately. These kits are ideal for frameless glass doors and other commercial glass door applications requiring European-style patch fittings.

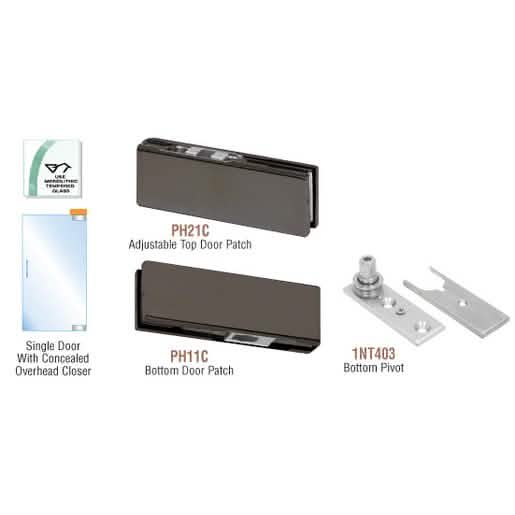

Kit Contains:
  • 1 - PH21C Adjustable Top Door Patch
  • 1 - PH11C Bottom Door Patch
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 mm or 12 mm) tempered glass (holes and notches required in the glass)
Kits with lock also include one Cat. No. EUR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.

NOTE For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs before you order, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors can vary by monitor.

Order the CRL PHE2DU European patch door kit today to complete your frameless tempered glass door installation.
