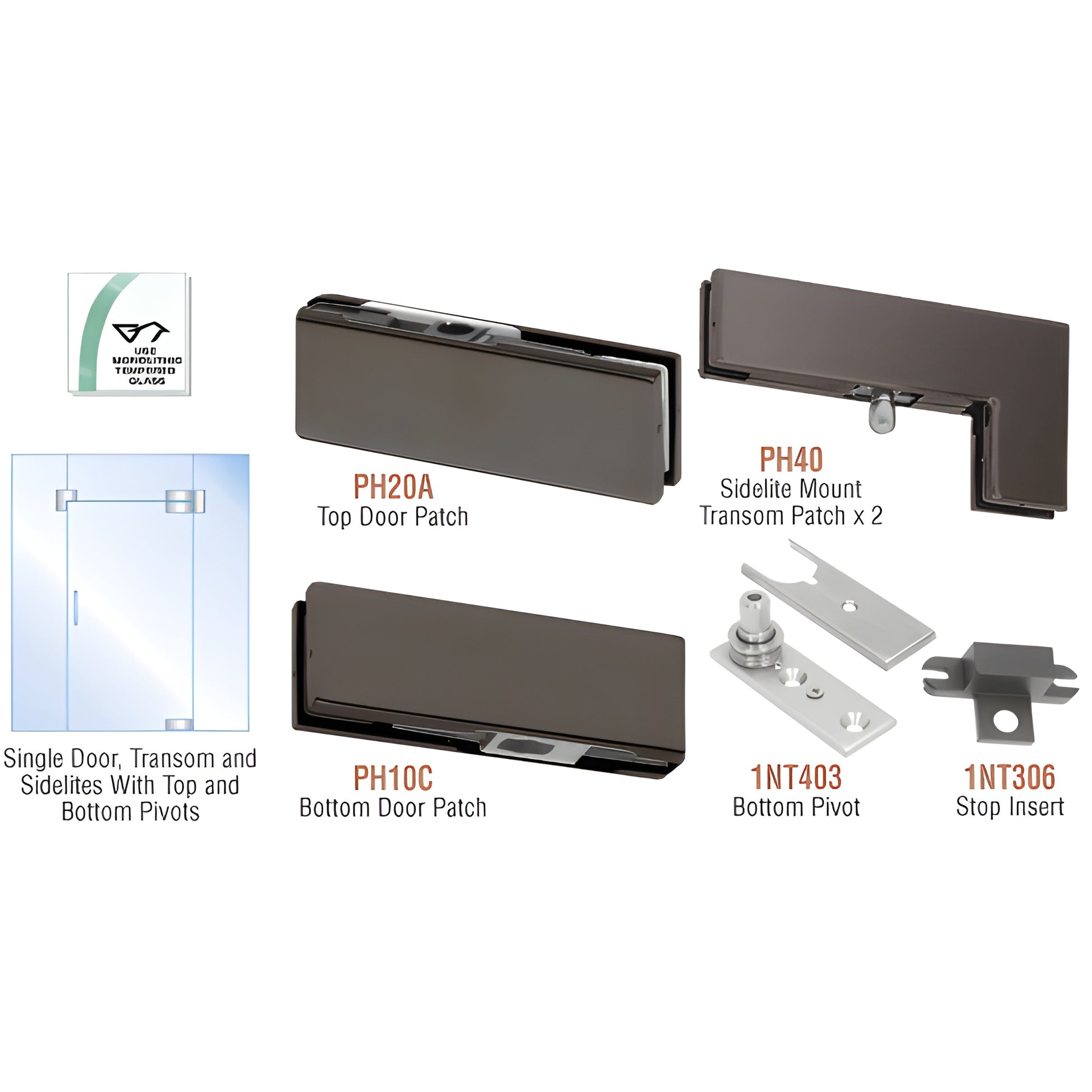

• PHA5DU black bronze pivot hardware kit for all-glass pivot door with transom and sidelites; fits 3/8" or 1/2" glass
1 1

CRL

CRL Black Bronze Glass Patch Kit for Transom & 2 Sidelites - No Lock

CRL Black Bronze Glass Patch Kit for Transom & 2 Sidelites - No Lock

$541.12 CAD
$541.12 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA5DU
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Single With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • 'All-Glass' look
  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks (AMR205 Patch Lock included in lock kits; cylinders, thumbturns, and keepers sold separately)
CRL PHA5 North American Door Kits (SKU: PHA5DU)

Complete hardware kit for a free-swinging pivot glass door with fixed transom and two sidelites (does not include glass or additional supports for transom and sidelites). Pivot setback: 2-3/4" (70 mm). Compatible with a floor closer using a tapered spindle (closer ordered separately).

Kit Contains:
  • 2 × PH40 Sidelite Mount Transom Patches
  • 1 × PH20A Top Door Patch
  • 1 × PH10C Bottom Door Patch
  • 1 × 1NT306 Stop Insert
  • 1 × 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must include required holes and notches)

Notes & Compliance: For maximum door sizes, CRL follows GANA Guidelines. Kits with locks include one AMR205 Patch Lock; cylinders, thumbturns, and keepers are ordered separately.

Most shipping weights are approximate. If exact weight is required for shipping cost calculations, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.

Why choose PHA5DU: Delivers a clean, all-glass aesthetic for commercial pivot doors using 3/8" or 1/2" tempered glass—ideal for storefronts and interior glazing where a minimal, high-end look and reliable pivot hardware are required.

Order the CRL PHA5 door kit (PHA5DU) now or contact us for custom specifications and shipping weights.
