CRL Black Bronze Anodized Overhead Sliding Door Track Hardware
CRL Black Bronze Anodized Overhead Sliding Door Track Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0TS1DU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Single Track 1 Panel Slide
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in. (10 mm)
Maximum Panel Width
72 in. (1829 mm)
Series
OT Overhead Track Slider
Overview
- Four-roller carriage units silently move overhead door rails for smooth operation
- Provides a flush bottom surface for a clean, ADA-friendly threshold
- Available in several configurations and architectural finishes to match commercial and residential interiors

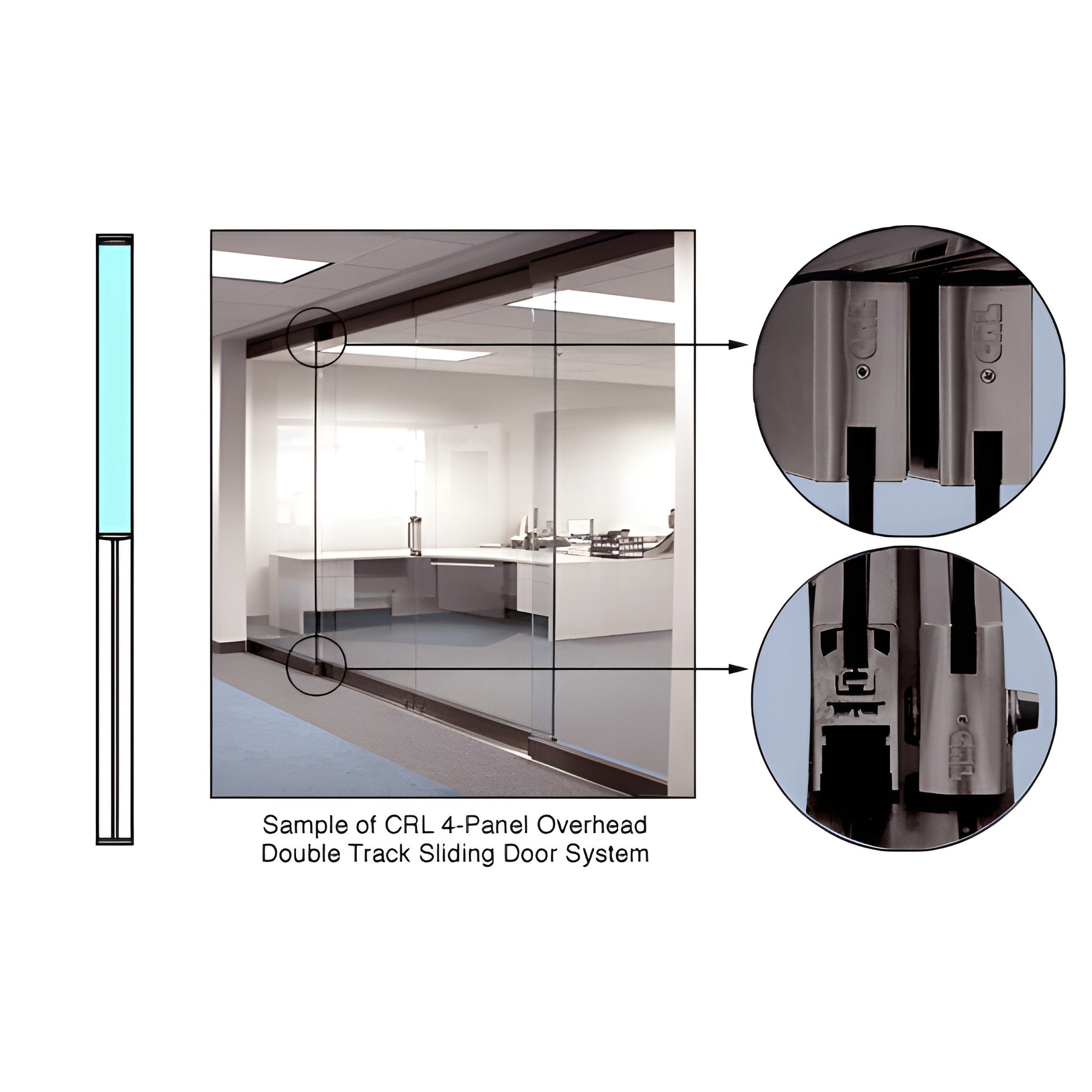

CRL Overhead Track Sliding Door Systems (SKU 0TS1DU) are offered in four standard configurations. Each sliding panel is hung from two Cat. No. 0TCA carriage assemblies. Maximum panel weight: 225 lbs. (102 kg). Maximum panel width: 72" (1.83 m). Minimum panel width: 25" (635 mm). These overhead track sliding door systems are ideal for pocket, bypass, and space-saving door applications where quiet, reliable performance and a flush bottom surface are required.
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department to confirm lead times and finish availability.
