CRL Black Bronze Anodized Square Sliding Door Hardware 6in/4in OX/XO

• With 4" Square DR4S Series Door Top Rails, 6" Square DR6S Series Door Bottom Rails, and 6" Square SR6S Series Sidelite Bottom Rails
• Available in Seven Architectural Finishes

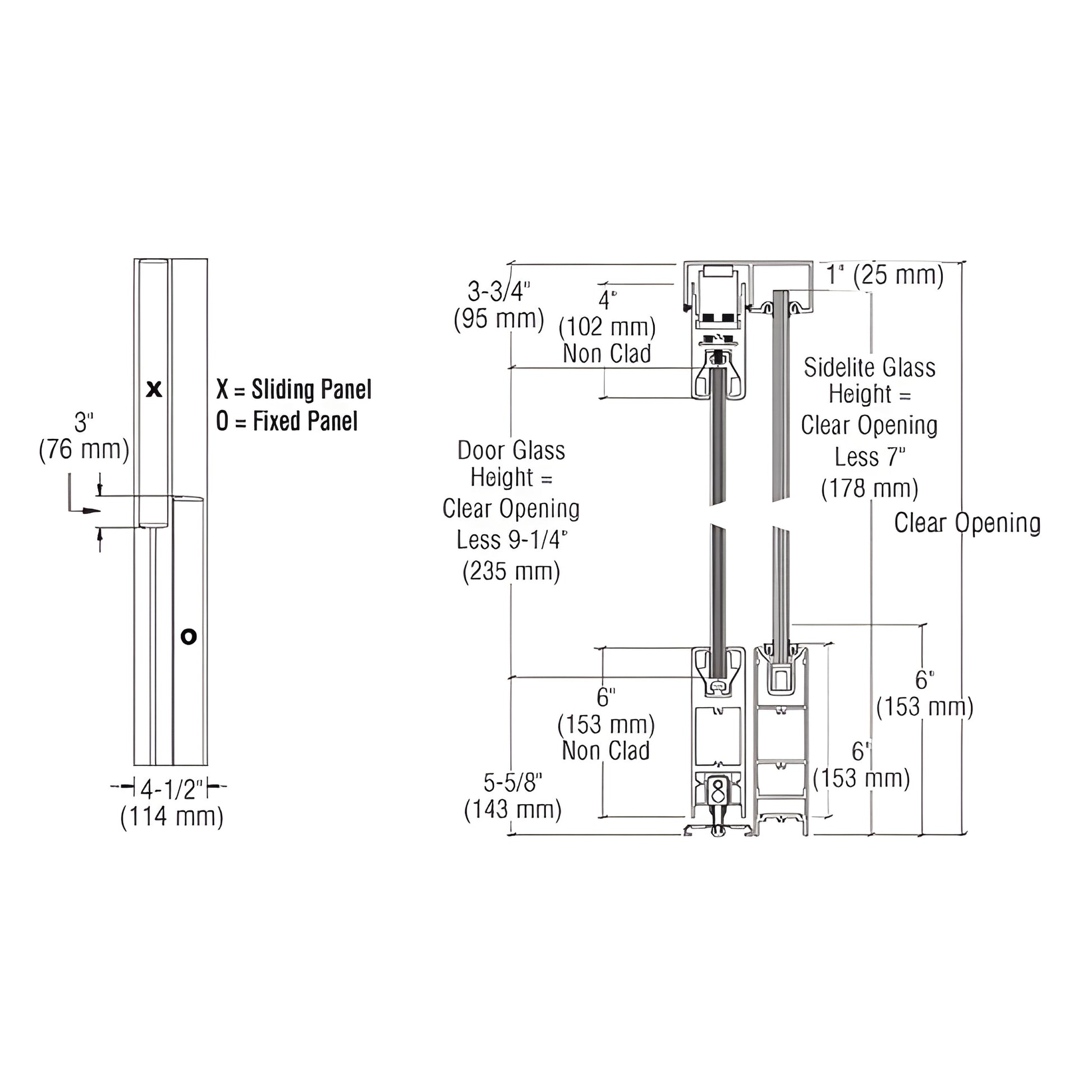

The CRL SSR Bottom Rolling Sliding Door System (SKU: 6SSR2CDU) is a heavy-duty bottom rolling sliding door solution ideal for commercial and residential glass openings. It features 4" (102 mm) DR4S top rails and 6" (152 mm) DR6S bottom rails using the Wedge-Lock® Glass Securing System for secure, tool-friendly glazing. Bottom rails can be specified with or without integrated locks to meet security requirements.

Fixed sidelites use the SR6S Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track for clean sight lines and simple installation. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications and available in seven architectural finishes for matching storefronts and interiors.

Contact CRL to configure your custom SSR bottom rolling sliding door system and request a quote today.
