Product Details
- With 4" Square DR4S Series Door Top Rails, 6" Square DR6S Series Door Bottom Rails, and 6" Square SR6S Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes

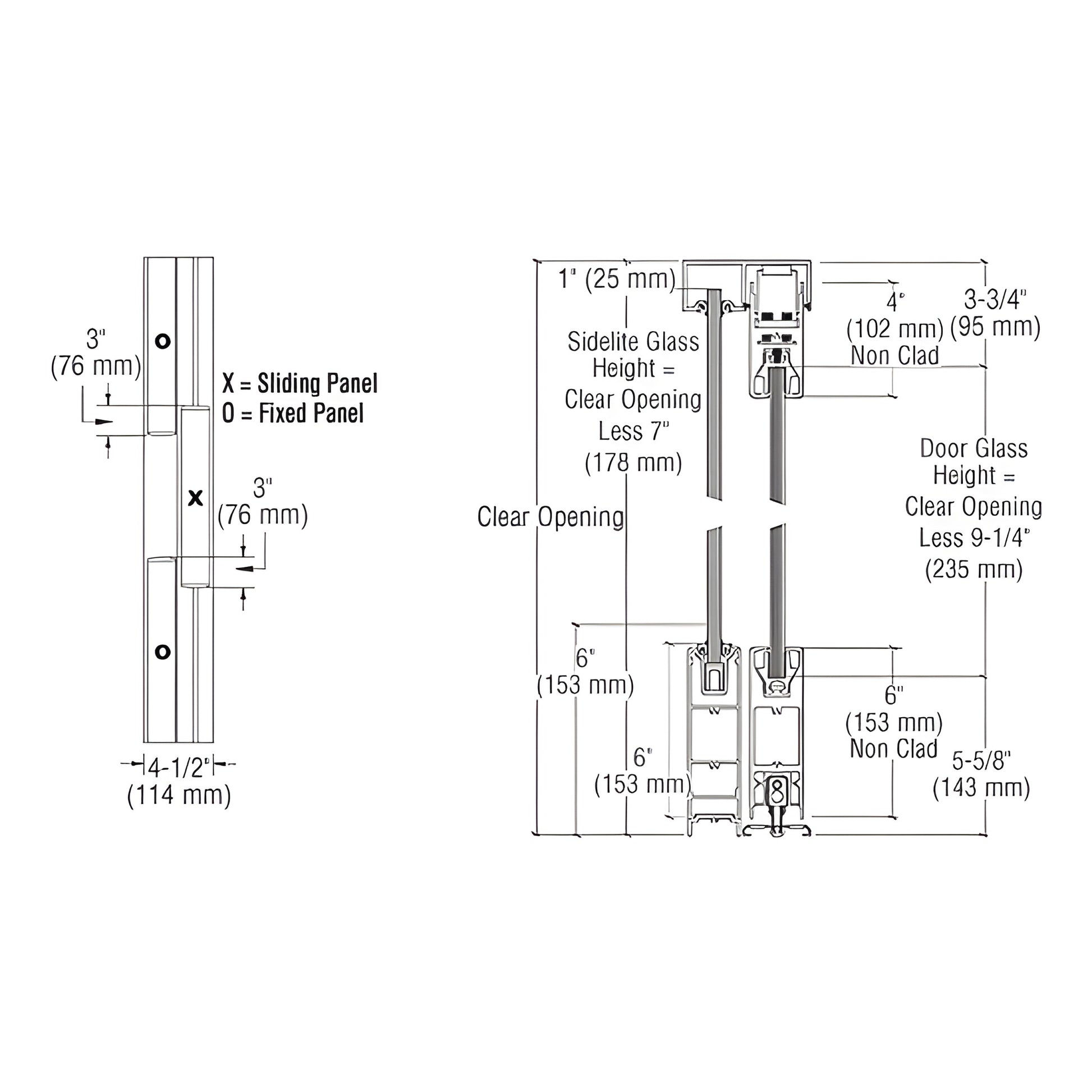

The CRL SSR Bottom Rolling Sliding Door System with 4" (102 mm) Square Door Top Rails and 6" (152 mm) Square Door Bottom Rails, utilizes our popular Wedge-Lock® Glass Securing System found in the DR4S and DR6S Series Door Rails on all sliding panels. They can be ordered with or without locks in the bottom rail.
The fixed panels utilize our popular SR6S Series Sidelite Rails with roll-in vinyl at the bottom of the panel, and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg). All panels are custom fabricated to your specifications.
