• Bottom-rolling 4-panel glass sliding door system (OXXO), dark bronze anodized, max 48x108 in, SKU 6SDR4FDU
1 1

CRL

CRL OXXO Format Black Bronze Anodized Sliding Door, 4in top 6in bottom

CRL OXXO Format Black Bronze Anodized Sliding Door, 4in top 6in bottom

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 6SDR4FDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Finish/Color
Dark Bronze Anodized
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4

Overview

  • With 4" Square DR4S Series Door Rails and 6" Square DR6S Series Bottom Rails
  • Available in Seven Architectural Finishes

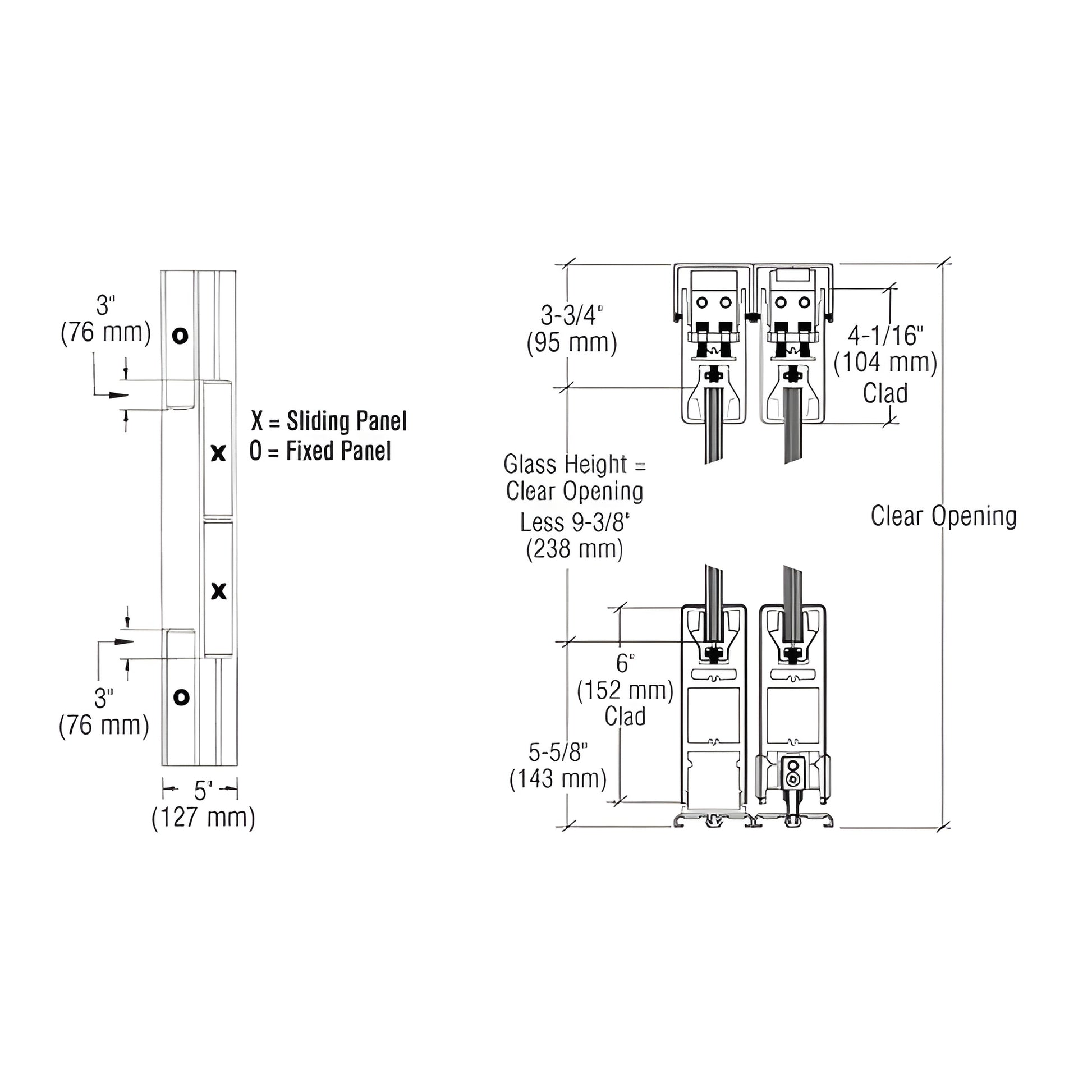

The CRL SDR Bottom Rolling Sliding Door System (SKU: 6SDR4FDU) features 4" (102 mm) square top rails and 6" (152 mm) square bottom rails and uses the proven Wedge-Lock® Glass Securing System from the DR4S and DR6S series. This bottom-rolling sliding door system for glass is custom fabricated to your specifications, can be ordered with or without locks in the bottom rail, and is ideal for interior commercial and residential glass partitions where smooth, reliable rolling and secure glass retention are required. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum weight: 234 lb (106 kg).

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor.

Contact CRL Customer Service to order SKU 6SDR4FDU or to request exact shipping weight and finish options.
