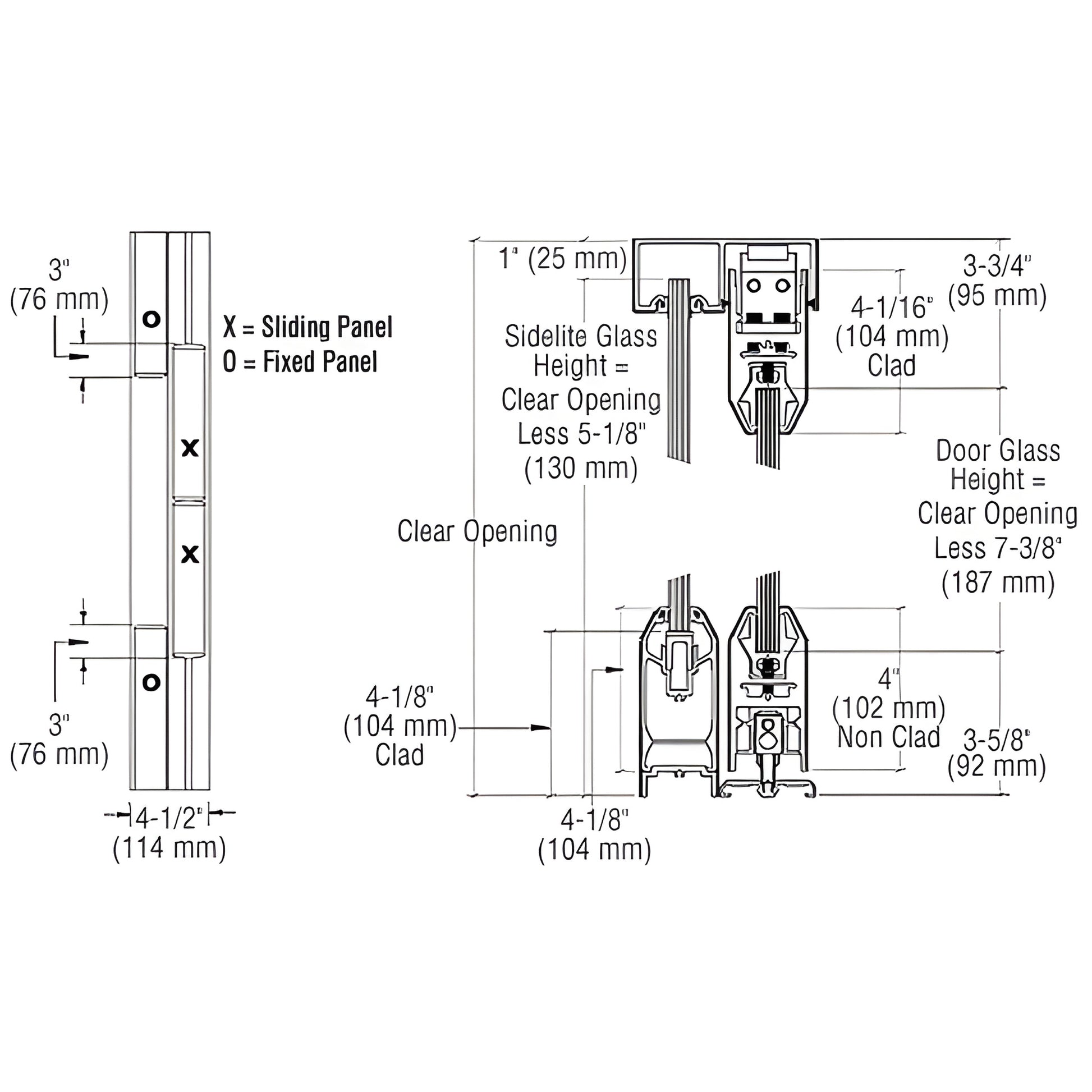

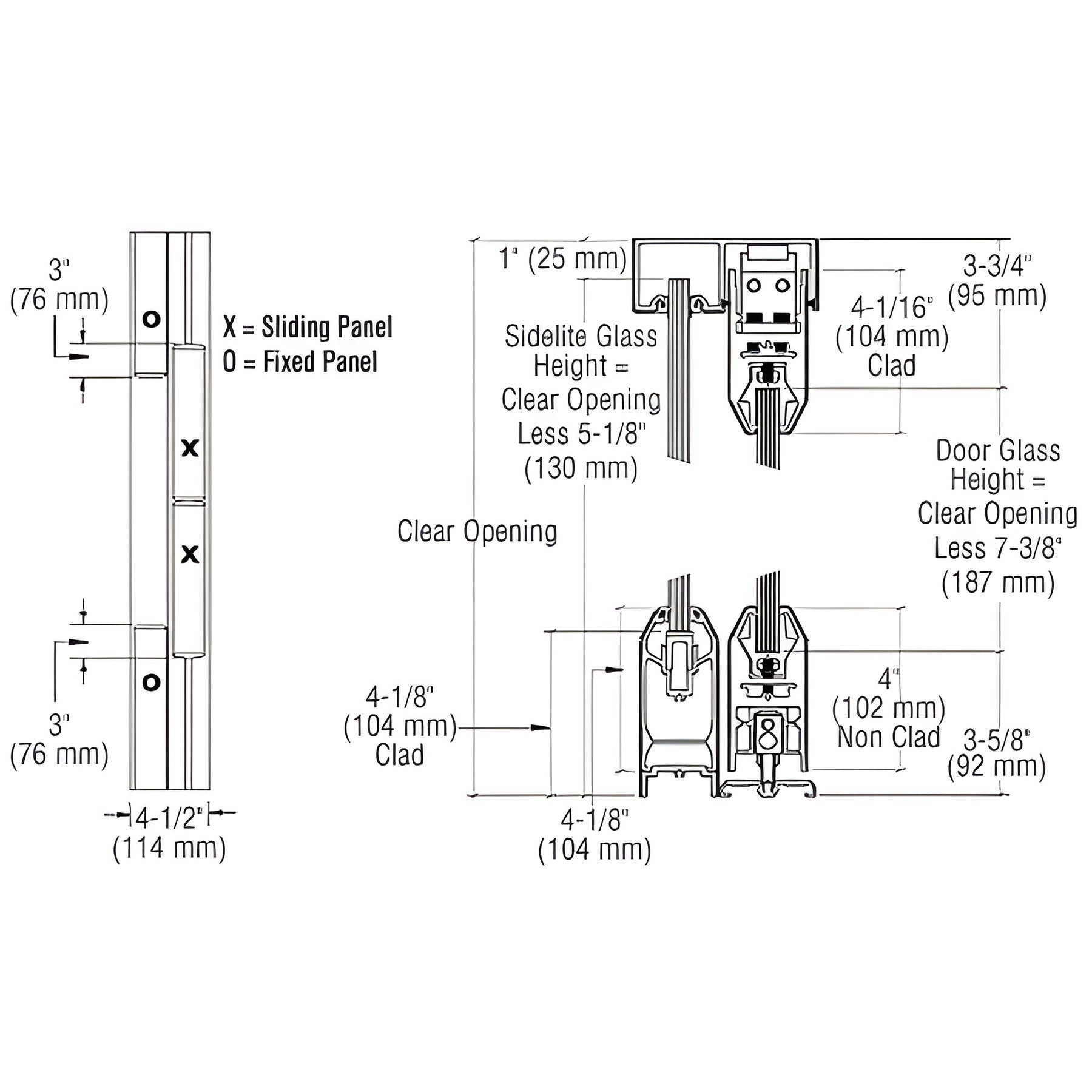

  • Technical CAD-style line drawing of SSR4FDU bottom rolling sliding door system, cross-sections and dimensions.
1 2

CRL

CRL OXXO SSR Bottom-Rolling Sliding Door System, Black Bronze

CRL OXXO SSR Bottom-Rolling Sliding Door System, Black Bronze

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SSR4FDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Finish/Color
Black Bronze Anodized
Height
4 in. (102 mm)
Material
Aluminum
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Minimum Door Width
234 in. (5944 mm)

Overview

  • With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
  • Available in Seven Architectural Finishes

The CRL SSR Bottom Rolling Sliding Door System (SKU: SSR4FDU) features 4" (102 mm) tapered rails and the proven Wedge-Lock® Glass Securing System used in DR4T Series door rails for secure, tool-friendly glazing on all sliding panels. Bottom rails are available with or without integrated locks for flexible security and access control.

Fixed panels use SR4T Series sidelite rails with roll-in vinyl at the panel bottom and an integrated glazing channel with roll-in vinyl in the top track for smooth operation and reliable sealing. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications for precise fit and finish.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs prior to ordering, please contact CRL Customer Service. Product images are representative; actual colors may vary based on monitor settings.

Available in seven architectural finishes to match commercial and residential storefronts—contact CRL to specify finish and configuration. Order the CRL SSR Bottom Rolling Sliding Door System (SSR4FDU) today.
