CRL SSR Bottom-Rolling Sliding Door Hardware, Black Bronze Anodized
CRL SSR Bottom-Rolling Sliding Door Hardware, Black Bronze Anodized
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SSR3DDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XOX
Finish/Color
Black Bronze Anodized
Height
4 in. (102 mm)
Material
Aluminum
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Minimum Door Width
234 in. (5944 mm)
Overview
- With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes
The CRL SSR Bottom Rolling Sliding Door System (SKU: SSR3DDU) features 4" (102 mm) tapered rails and the proven Wedge-Lock® Glass Securing System found in the DR4T Series on all sliding panels. Bottom rails are available with or without integrated locks for secure, low-profile operation.
The fixed panels use SR4T Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track. Designed for commercial and residential openings, this bottom rolling sliding door system supports a maximum door width of 48" (1.22 m), maximum door height of 108" (2.74 m), and panel weights up to 234 lb (106 kg). All panels are custom fabricated to your specifications and available in seven architectural finishes.
Contact CRL Customer Service to request exact shipping weight or to order the SSR3DDU bottom rolling sliding door system today.
Specifications

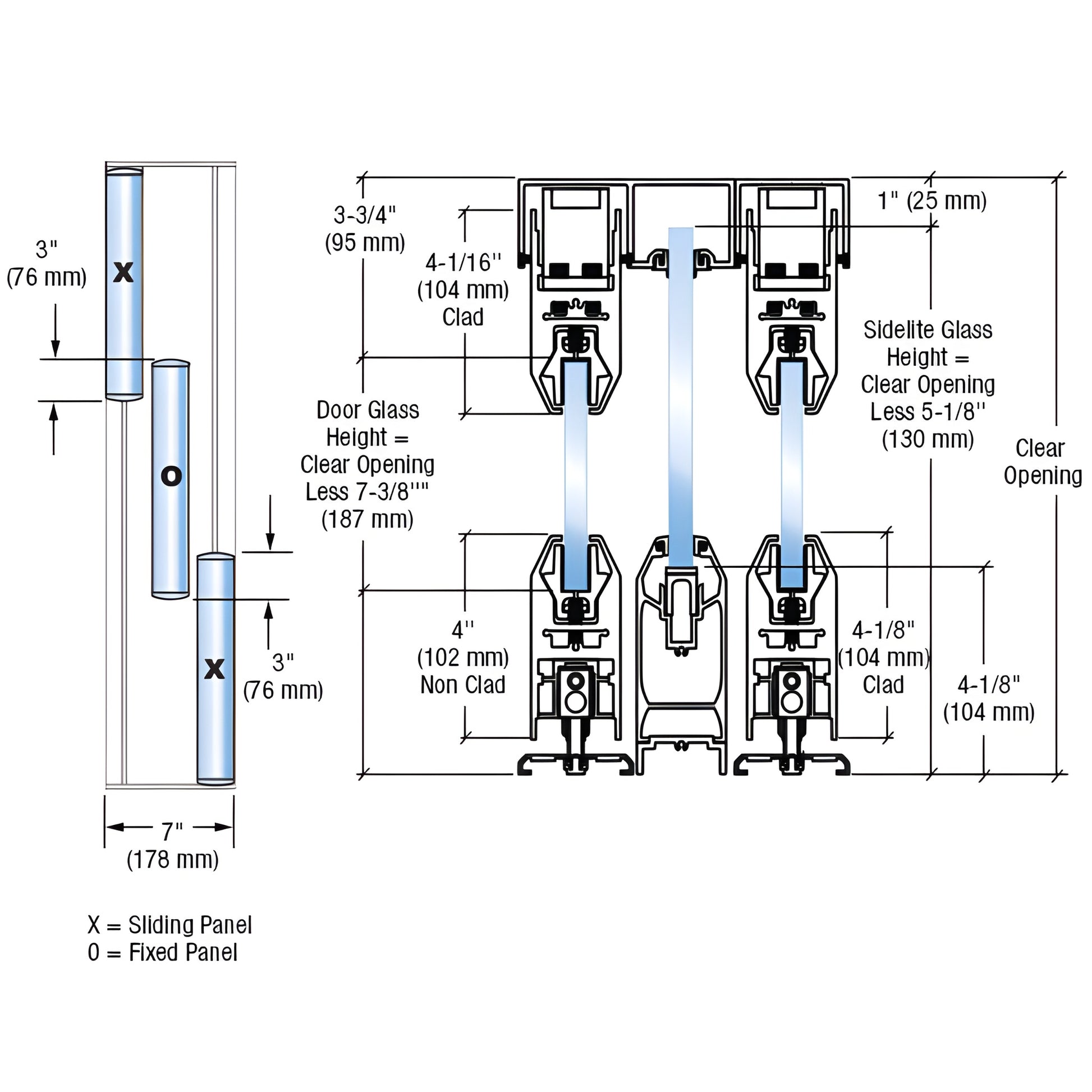

CAD Drawings - pdf
