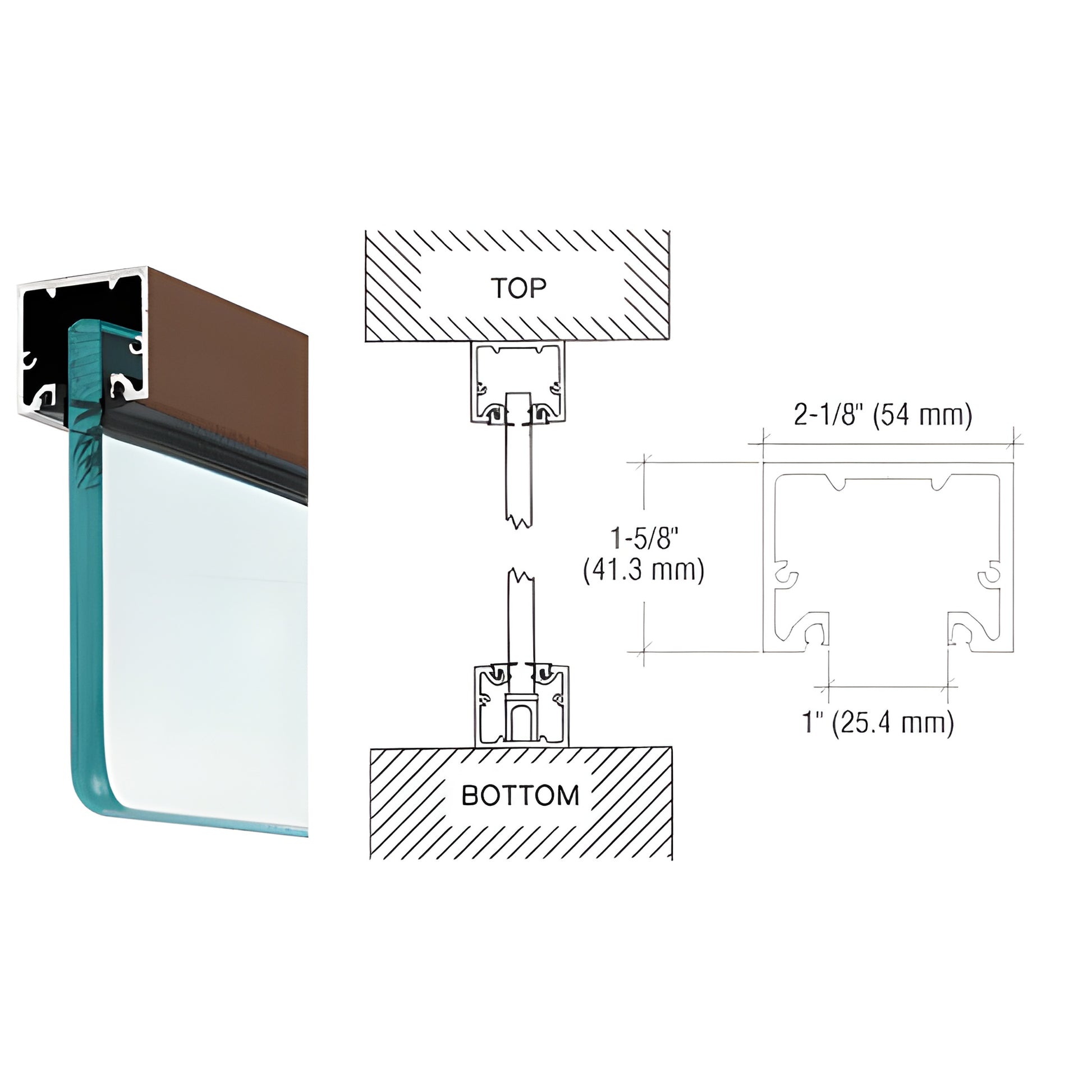

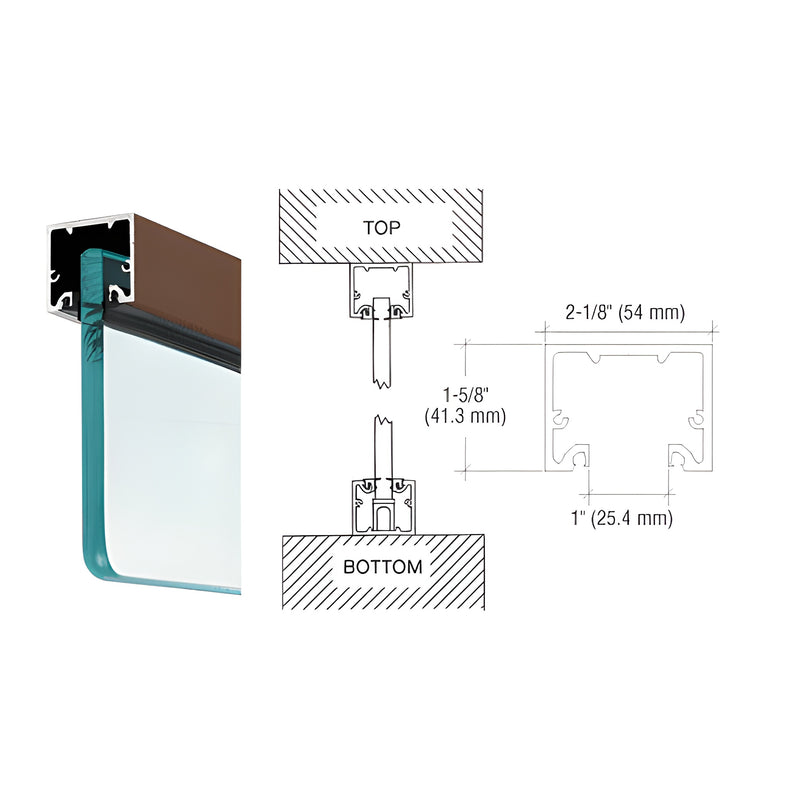

• Black-bronze anodized narrow aluminum header (SKU NH3DUSL) for 3/4" glass, 2-1/8" 1-5/8" profile.
1 1

CRL

CRL Black Bronze U-Channel Top-Load Glazing Gasket 3/4in Glass 120in

CRL Black Bronze U-Channel Top-Load Glazing Gasket 3/4in Glass 120in

$386.33 CAD
$386.33 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# NH3DUSL
Shipping Weight: 10.25 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized
Glazing Thickness
3/4 in. (19 mm)
Height
1-5/8 in. (41 mm)
Length
120 in. (3048 mm)
Width
2-1/8 in. (54 mm)

Overview

  • Aluminum extrusion matches width of door and sidelite rails/channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 and 19 mm) glass
  • Designed for monolithic tempered glass
  • Accepts roll-in glazing gasket, top pivot block, and snap-in filler strip
  • Ready-to-ship Quick Pick models from CRL inventory (SKU: NH3DUSL)
  • Available in stock lengths, fabricated headers, or header with side pockets for convenient "lift and drop" panel installation

This aluminum extrusion was developed for three primary uses:

  1. As a U-channel matching our sidelite and door rail widths for glazing of monolithic tempered glass.
  2. As a narrow header that accepts a top free-swinging pivot to secure the top of doors.
  3. As an even sight line system—secure the fabricated narrow header to the opening, then attach the sidelite rail using the 1/4" (6 mm) header saddle. Drilling, tapping, and fabrication can be completed at manufacturing upon request to save installation time.

Quick Pick shipping policy: stocked in a centralized CRL service center and shipped to regional service centers on weekly re-supply trucks. If your regional center is out of stock, orders are typically filled within a few days.

Check stock availability using the "CHECK STOCK AVAILABILITY" box above or contact CRL Customer Service for exact shipping weight and lead times.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor.
