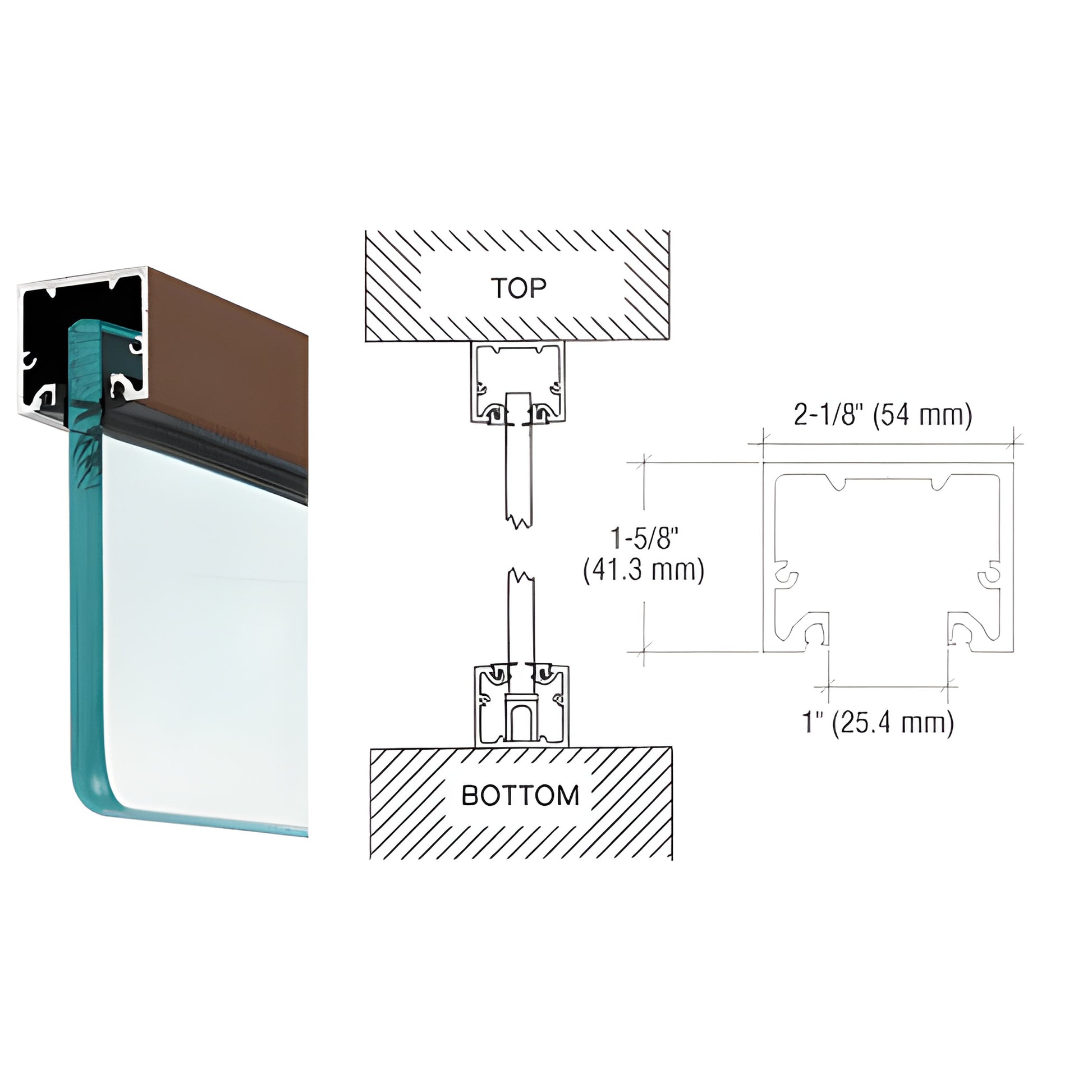

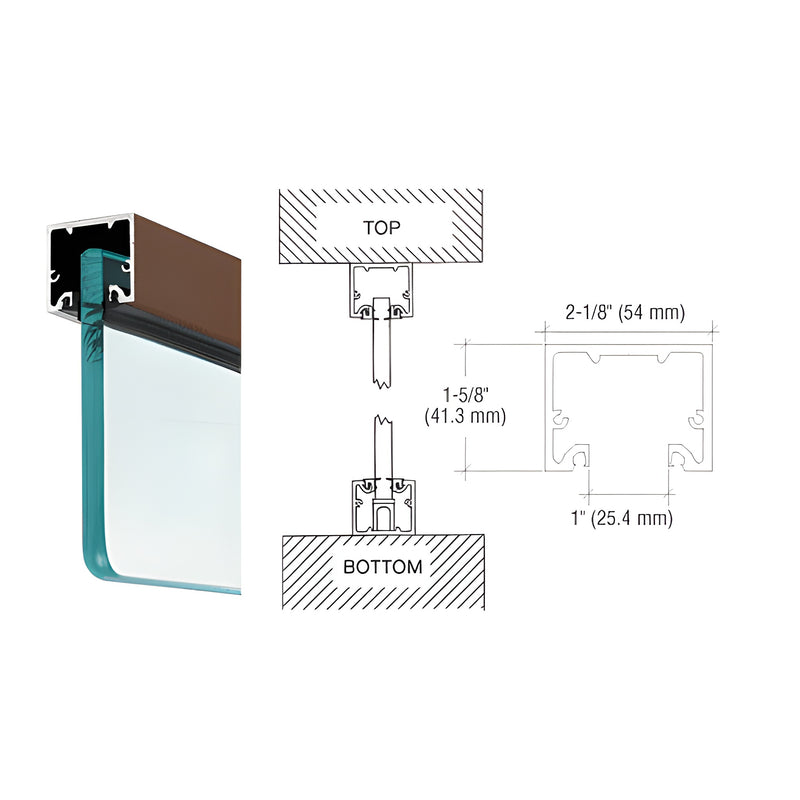

• Black bronze anodized narrow header/U-channel for 3/4" glass, 2-1/8" wide x 1-5/8" high, sectional view and CAD detail.
1 1

CRL

CRL Black Bronze U-Channel Roll-In Glazing Gasket 3/4" Glass - Custom

CRL Black Bronze U-Channel Roll-In Glazing Gasket 3/4" Glass - Custom

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# NH3DUCL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized
Glazing Thickness
3/4 in. (19 mm)
Height
1-5/8 in. (41 mm)
Length
Specify
Width
2-1/8 in. (54 mm)

Overview

  • Matches width of door and sidelite rails; accepts roll-in gasket, top pivot block, and flush snap-in insert
  • Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
  • Special sidelite rail adapter enables a continuous sight line using the sidelite rail with the narrow header

CRL Wide U-Channel and Narrow Header (SKU: NH3DUCL) — a versatile narrow header and U-channel solution for sidelites and doors. Use as a U-channel matching our Sidelite and Door Rails, as a narrow header that accepts a top free‑swinging pivot to secure door tops, or to create an even sight line by fastening the fabricated narrow header to the opening and securing the sidelite rail with the 1/4" (6.4 mm) header saddle. All drilling, tapping, and fabrication are completed during manufacturing to save installation time and eliminate on-site fabrication. For technical details or installation guidance, contact our Technical Sales Department.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are actual or close representations; colors may vary with monitor settings.


Order the CRL NH3DUCL narrow header/U-channel for sidelites and doors today or contact us for a quote.
